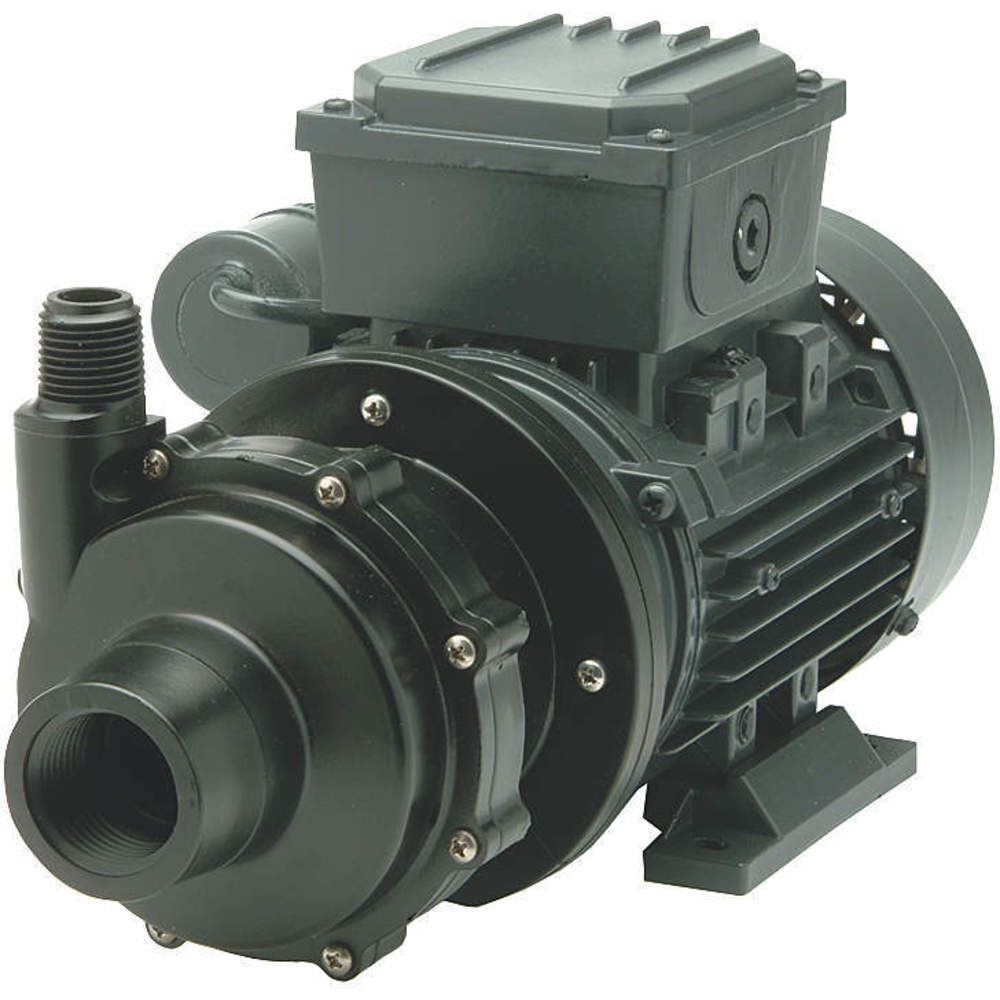

FINISH THOMPSON DB4V-T-M613 Pump Magnetic Drive 1/4 Hp 2.4 Amp 29 Max Feet | AE3UEK 5FZW3

FINISH THOMPSON DB4V-T-M613 Pump Magnetic Drive 1/4 Hp 2.4 Amp 29 Max Feet

Item: AE3UEKModel: DB4V-T-M613Cross Ref: 5FZW3
Check Availability
In Stock

Get it by Wednesday, Dec 17

€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€856.15
10.00% off
€770.54 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Magnetic Drive Pump
Amps 2.4A
Application Acids, Di-Water, Plating Solutions, Sodium Hypochlorite
Bearing Type Thrust, Radial
Bushing Material PTFE
Chemical Compatibility Deionized Water
Compatible Chemicals Deionized Water
Design Centrifugal
Discharge Pipe Size 1/2"
Discharge Pipe Type MNPT
Discharge Port Size 1/2"
Discharge Port Type MNPT
Feet Of Head (maximum) 29.2 ft.
Flow Rate @ 1 Ft. 18 GPM
Flow Rate @ 15 Ft Of Head (maximum) 13.5 GPM
Flow Rate @ 18 Ft Of Head (maximum) 12 GPM
Flow Rate @ 18 Ft. 12 GPM
Flow Rate @ 24 Ft Of Head (maximum) 8 GPM
Flow Rate @ 24 Ft. 8 GPM
Flow Rate @ 3 Ft Of Head (maximum) 18 GPM
Flow Rate @ 3 Ft. 18 GPM
Flow Rate @ 40 Ft Of Head (maximum) Not Applicable
Flow Rate @ 40 Ft. 0 GPM
Flow Rate @ 50 Ft Of Head (maximum) Not Applicable
Flow Rate @ 50 Ft. 0 GPM
Flow Rate @ 6 Ft Of Head (maximum) 18 GPM
Flow Rate @ 6 Ft. 18 GPM
Flow Rate @ 9 Ft Of Head (maximum) 16.5 GPM
Flow Rate @ 9 Ft. 16.5 GPM
Full Load Current 2.4A
Gasket Fluoroelastomer
Gasket Material Fluoroelastomer
Gpm @ 1 Ft. Of Head 18 GPM
Gpm Of Water @ 18 Ft. Of Head 12
Gpm Of Water @ 24 Ft. Of Head 8
Gpm Of Water @ 3 Ft. Of Head 18
Gpm Of Water @ 6 Ft. Of Head 18 GPM
Gpm Of Water @ 9 Ft. Of Head 16.5
Height 6 2/5"
Horsepower (maximum) 1/4 hp
Housing Material PVDF
Hp 1/4 hp
Impeller PVDF w/ TFE
Impeller Material PVDF
Inlet Size 1"
Inlet Type FNPT
Intake Pipe Size 1"
Intake Pipe Type FNPT
Length 12.9"
Manufacturers Warranty Length 5 yrs.
Max. Discharge Pressure 12.7 psi
Max. Flow Rate @ 15 Ft. 13.5 GPM
Max. Fluid Temp. 220°F
Max. Head 29 ft.
Max. Operating Pressure 60 psi
Max. Outlet Pressure 12.7 psi
Max. Specific Gravity 1.8
Max. Viscosity 50 cPS
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Mounting Type Horizontal
Motor Speed (maximum) 3450 RPM
Motor Type Permanent Split Capacitor
Mounting Close Coupled
Mounting Location Open Air
Mounting Orientation Horizontal
Mounting Orientation Close Coupled
Operating Pressure 12.7 psi
Operating Pressure (maximum) 12.7 psi
Outlet Size 1/2"
Outlet Type MNPT
Overall Height 6 2/5"
Overall Length 12.9"
Overall Width 6 1/5"
Phase 1
Priming Manual
Product Datasheet finish-thompson-db10p-m218.pdf
Rpm 3450 RPM
Self Priming Manual
Series DB4 Series
Specific Gravity 1.8
Suction Port 1" FNPT
Temp (f) @ 0 Psig 220°F
Temp (f) @ 0 Psig 220
Temp (f) @ 10 Psig 220°F
Temp (f) @ 10 Psig 220
Temp (f) @ 20 Psig 220°F
Temp (f) @ 20 Psig 220
Temp (f) @ 30 Psig 220°F
Type Flooded Suction
Viscosity (maximum) 50 cPS
Voltage 115V AC
Warranty 5 yrs.
Width 6 1/5"

Shipping Info:

Ship weight (kg) 7.36
Ship height (cm)28.7
Ship length (cm)51.56
Ship width (cm)27.43
HS code8413702022
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelHpVoltageMax. Outlet PressureFlow Rate @ 3 Ft.Flow Rate @ 6 Ft.Flow Rate @ 9 Ft.Flow Rate @ 24 Ft.Flow Rate @ 40 Ft.Price
FINISH THOMPSON DB5.5P-M622 Magnetic Drive Pump 1/2 Hp 115v Fkm Gasket | AA7AJD 15R528 DB5.5P-M6221/2 hp115V AC12.6 psi30 GPM30 GPM28 GPM17 GPM0 GPM€892.72
FINISH THOMPSON DB5.5P-E-M622 Magnetic Drive Pump 1/2 Hp 115v Epdm Gasket | AA7AJE 15R529 DB5.5P-E-M6221/2 hp115V AC12.6 psi30 GPM30 GPM28 GPM17 GPM0 GPM€915.86
FINISH THOMPSON DB5.5P-M617 Magnetic Drive Pump 1/2 Hp 230v Fkm Gasket | AA7AJF 15R530 DB5.5P-M6171/2 hp230V AC12.6 psi30 GPM30 GPM28 GPM17 GPM0 GPM€873.03
FINISH THOMPSON DB5.5P-E-M617 Magnetic Drive Pump 1/2 Hp 230v Epdm Gasket | AA7AJG 15R531 DB5.5P-E-M6171/2 hp230V AC12.6 psi30 GPM30 GPM28 GPM17 GPM0 GPM€873.03
FINISH THOMPSON DB5.5V-T-M622 Magnetic Drive Pump 1/2 Hp 115v Fkm Gasket | AA7AJH 15R532 DB5.5V-T-M6221/2 hp115V AC12.6 psi30 GPM30 GPM28 GPM17 GPM0 GPM€1,149.99
FINISH THOMPSON DB5.5V-T-M617 Magnetic Drive Pump 1/2 Hp 230v Fkm Gasket | AA7AJJ 15R533 DB5.5V-T-M6171/2 hp230V AC12.6 psi30 GPM30 GPM28 GPM17 GPM0 GPM€1,067.01
FINISH THOMPSON DB6P-M224 Pump Magnetic Drive 1/3 Hp 115/208-230vv | AC8KVV 3AZN4 DB6P-M2241/3 hp115/208-230V AC14.2 psi39 GPM39 GPM37 GPM23 GPM0 GPM€1,371.44
