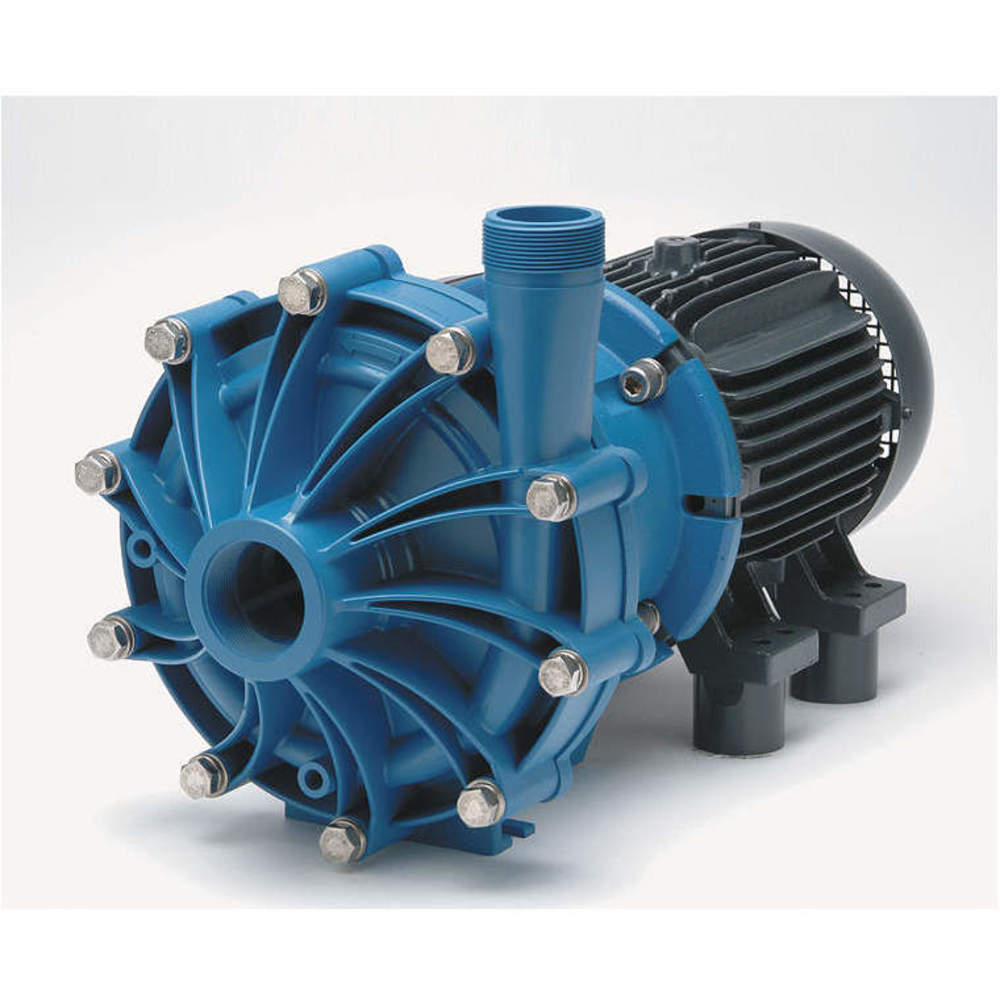

FINISH THOMPSON DB22P-3-21-M239 Pump Magnetic Drive 10 Hp 208-230/460v | AC8KWK 3AZP9

FINISH THOMPSON DB22P-3-21-M239 Pump Magnetic Drive 10 Hp 208-230/460v

Item: AC8KWKModel: DB22P-3-21-M239Cross Ref: 3AZP9
Check Availability
In Stock

Get it by Wednesday, Dec 17

€6,968.22
10.00% off
€6,271.40 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Magnetic Drive Pump
Amps 11.7/23.4-25.9A
Application Acids, Caustics, Di-Water, Plating Solutions
Bearing Type Thrust, Radial
Bushing Material Carbon
Chemical Compatibility Deionized Water
Compatible Chemicals Deionized Water
Design Centrifugal
Discharge Pipe Size 2"
Discharge Pipe Type MNPT
Discharge Port Size 2"
Discharge Port Type MNPT
Feet Of Head (maximum) 201 ft.
Flow Rate @ 1 Ft. 202 GPM
Flow Rate @ 15 Ft Of Head (maximum) 202 GPM
Flow Rate @ 18 Ft Of Head (maximum) 202 GPM
Flow Rate @ 18 Ft. 202 GPM
Flow Rate @ 24 Ft Of Head (maximum) 202 GPM
Flow Rate @ 24 Ft. 202 GPM
Flow Rate @ 3 Ft Of Head (maximum) 202 GPM
Flow Rate @ 3 Ft. 202 GPM
Flow Rate @ 40 Ft Of Head (maximum) 202 GPM
Flow Rate @ 40 Ft. 202 GPM
Flow Rate @ 50 Ft Of Head (maximum) 202 GPM
Flow Rate @ 50 Ft. 202 GPM
Flow Rate @ 6 Ft Of Head (maximum) 202 GPM
Flow Rate @ 6 Ft. 202 GPM
Flow Rate @ 9 Ft Of Head (maximum) 202 GPM
Flow Rate @ 9 Ft. 202 GPM
Full Load Current 25.9-23.4/11.7A
Gasket Material Viton
Gpm @ 1 Ft. Of Head 202 GPM
Gpm Of Water @ 18 Ft. Of Head 202
Gpm Of Water @ 24 Ft. Of Head 202
Gpm Of Water @ 3 Ft. Of Head 202
Gpm Of Water @ 6 Ft. Of Head 202 GPM
Gpm Of Water @ 9 Ft. Of Head 202
Height 13 2/5"
Horsepower (maximum) 10 hp
Housing Material Polypropylene
Hp 10 hp
Impeller Polypropylene w/Carbon Bushing
Impeller Material Polypropylene
Inlet Size 2"
Inlet Type FNPT
Intake Pipe Size 2"
Intake Pipe Type FNPT
Length 28 1/2"
Manufacturers Warranty Length 5 yrs.
Max. Discharge Pressure 68 psi
Max. Flow Rate @ 15 Ft. 202 GPM
Max. Flow Rate @ 50 Ft Of Head 202 GPM
Max. Fluid Temp. 180°F
Max. Head 158 ft.
Max. Operating Pressure 90 psi
Max. Outlet Pressure 68 psi
Max. Specific Gravity 1.8
Max. Viscosity 100 cPS
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Mounting Type Horizontal
Motor Speed (maximum) 3450 RPM
Motor Type Induction
Mounting Horizontal
Mounting Location Open Air
Mounting Orientation Horizontal
Operating Pressure 68 psi
Operating Pressure (maximum) 68 psi
Outlet Size 2"
Outlet Type MNPT
Overall Height 13 2/5"
Overall Length 28 1/2"
Overall Width 14.3"
Phase 3
Priming Manual
Product Datasheet finish-thompson-db10p-m218.pdf
Rpm 3450 RPM
Self Priming Manual
Series DB22 Series
Specific Gravity 1.8
Suction Port 2" FNPT
Temp (f) @ 0 Psig 180°F
Temp (f) @ 0 Psig 180
Temp (f) @ 10 Psig 180°F
Temp (f) @ 10 Psig 180
Temp (f) @ 20 Psig 180°F
Temp (f) @ 20 Psig 180
Temp (f) @ 30 Psig 180°F
Type Straight
Viscosity (maximum) 100 cPS
Voltage 208-230/460V AC
Warranty 5 yrs.
Width 14.3"

Shipping Info:

Ship weight (kg) 112.5
Ship height (cm)43.18
Ship length (cm)78.74
Ship width (cm)50.8
HS code8413810040
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelHpVoltageMax. Outlet PressureFlow Rate @ 3 Ft.Flow Rate @ 6 Ft.Flow Rate @ 9 Ft.Flow Rate @ 24 Ft.Flow Rate @ 40 Ft.Price
FINISH THOMPSON DB5.5P-M622 Magnetic Drive Pump 1/2 Hp 115v Fkm Gasket | AA7AJD 15R528 DB5.5P-M6221/2 hp115V AC12.6 psi30 GPM30 GPM28 GPM17 GPM0 GPM€892.72
FINISH THOMPSON DB5.5P-E-M622 Magnetic Drive Pump 1/2 Hp 115v Epdm Gasket | AA7AJE 15R529 DB5.5P-E-M6221/2 hp115V AC12.6 psi30 GPM30 GPM28 GPM17 GPM0 GPM€915.86
FINISH THOMPSON DB5.5P-M617 Magnetic Drive Pump 1/2 Hp 230v Fkm Gasket | AA7AJF 15R530 DB5.5P-M6171/2 hp230V AC12.6 psi30 GPM30 GPM28 GPM17 GPM0 GPM€873.03
FINISH THOMPSON DB5.5P-E-M617 Magnetic Drive Pump 1/2 Hp 230v Epdm Gasket | AA7AJG 15R531 DB5.5P-E-M6171/2 hp230V AC12.6 psi30 GPM30 GPM28 GPM17 GPM0 GPM€873.03
FINISH THOMPSON DB5.5V-T-M622 Magnetic Drive Pump 1/2 Hp 115v Fkm Gasket | AA7AJH 15R532 DB5.5V-T-M6221/2 hp115V AC12.6 psi30 GPM30 GPM28 GPM17 GPM0 GPM€1,149.99
FINISH THOMPSON DB5.5V-T-M617 Magnetic Drive Pump 1/2 Hp 230v Fkm Gasket | AA7AJJ 15R533 DB5.5V-T-M6171/2 hp230V AC12.6 psi30 GPM30 GPM28 GPM17 GPM0 GPM€1,067.01
FINISH THOMPSON DB6P-M224 Pump Magnetic Drive 1/3 Hp 115/208-230vv | AC8KVV 3AZN4 DB6P-M2241/3 hp115/208-230V AC14.2 psi39 GPM39 GPM37 GPM23 GPM0 GPM€1,371.44
