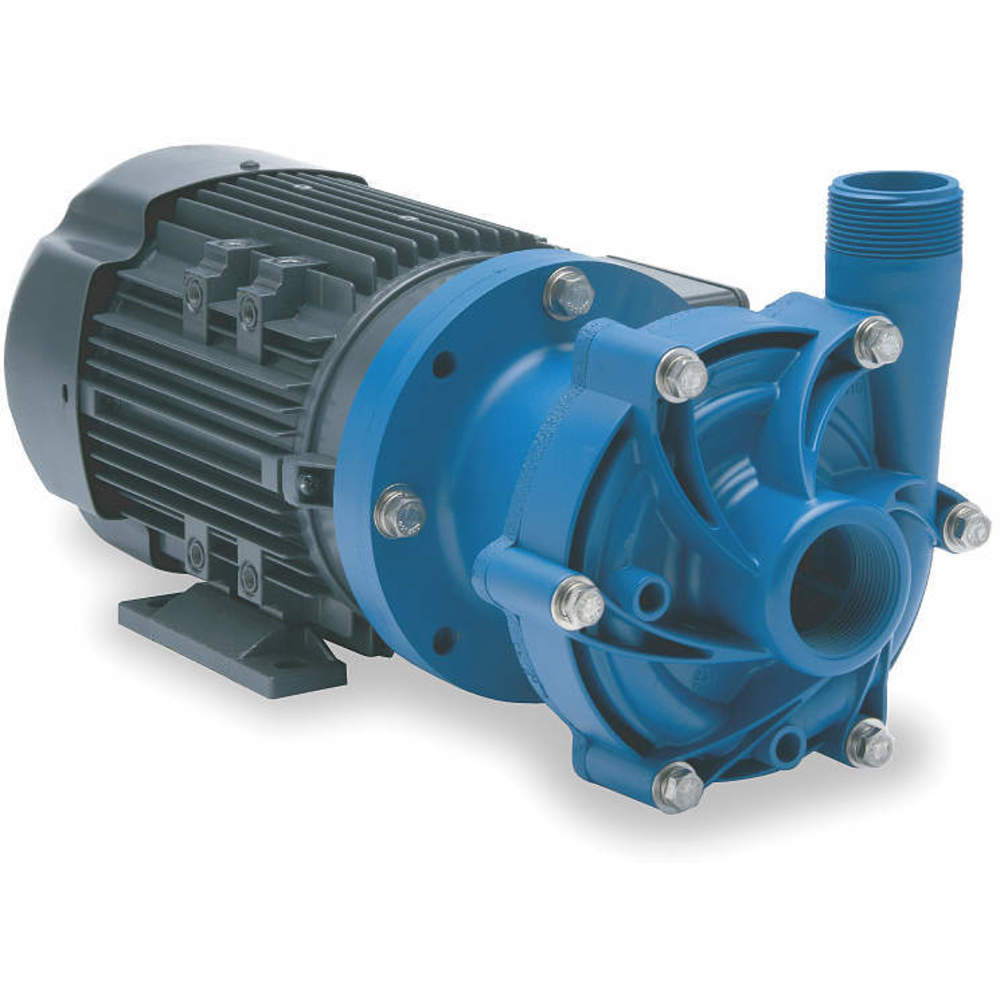

FINISH THOMPSON DB10P-M218 Pump Magnetic Drive 1 Hp 115/208-230v | AC8KWF 3AZP5

FINISH THOMPSON DB10P-M218 Pump Magnetic Drive 1 Hp 115/208-230v

Item: AC8KWFModel: DB10P-M218Cross Ref: 3AZP5
Check Availability
In Stock

Get it by Thursday, Dec 18

€1,968.27
10.00% off
€1,771.45 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Magnetic Drive Pump
Amps 12.8/6.4A
Application Acids, Caustics, Di-Water, Plating Solutions
Bearing Type Thrust, Radial
Bushing Material Carbon
Chemical Compatibility Deionized Water
Compatible Chemicals Deionized Water
Design Centrifugal
Discharge Pipe Size 1 1/2"
Discharge Pipe Type MNPT
Discharge Port Size 1 1/2"
Discharge Port Type MNPT
Feet Of Head (maximum) 51 ft.
Flow Rate @ 1 Ft. 95 GPM
Flow Rate @ 15 Ft Of Head (maximum) 95 GPM
Flow Rate @ 18 Ft Of Head (maximum) 94 GPM
Flow Rate @ 18 Ft. 94 GPM
Flow Rate @ 24 Ft Of Head (maximum) 85 GPM
Flow Rate @ 24 Ft. 85 GPM
Flow Rate @ 3 Ft Of Head (maximum) 95 GPM
Flow Rate @ 3 Ft. 95 GPM
Flow Rate @ 40 Ft Of Head (maximum) 66 GPM
Flow Rate @ 40 Ft. 66 GPM
Flow Rate @ 50 Ft Of Head (maximum) 38 GPM
Flow Rate @ 50 Ft. 38 GPM
Flow Rate @ 6 Ft Of Head (maximum) 95 GPM
Flow Rate @ 6 Ft. 95 GPM
Flow Rate @ 9 Ft Of Head (maximum) 95 GPM
Flow Rate @ 9 Ft. 95 GPM
Full Load Current 12.8/6.4A
Gasket Material Viton
Gpm @ 1 Ft. Of Head 95 GPM
Gpm Of Water @ 18 Ft. Of Head 94
Gpm Of Water @ 24 Ft. Of Head 85
Gpm Of Water @ 3 Ft. Of Head 95
Gpm Of Water @ 6 Ft. Of Head 95 GPM
Gpm Of Water @ 9 Ft. Of Head 95
Height 8.3"
Horsepower (maximum) 1 hp
Housing Material Polypropylene
Hp 1 hp
Impeller Polypropylene w/Carbon Bushing
Impeller Material Polypropylene
Inlet Size 1 1/2"
Inlet Type FNPT
Intake Pipe Size 1 1/2"
Intake Pipe Type FNPT
Length 17.3"
Manufacturers Warranty Length 5 yrs.
Max. Discharge Pressure 23 psi
Max. Flow Rate @ 15 Ft. 95 GPM
Max. Flow Rate @ 50 Ft Of Head 38 GPM
Max. Fluid Temp. 180°F
Max. Head 52 ft.
Max. Operating Pressure 80 psi
Max. Outlet Pressure 23 psi
Max. Specific Gravity 1.8
Max. Viscosity 100 cPS
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Mounting Type Horizontal
Motor Speed (maximum) 3450 RPM
Motor Type Induction
Mounting Horizontal
Mounting Location Open Air
Mounting Orientation Horizontal
Operating Pressure 23 psi
Operating Pressure (maximum) 23 psi
Outlet Size 1 1/2"
Outlet Type MNPT
Overall Height 8.3"
Overall Length 17.3"
Overall Width 7 1/2"
Phase 1
Priming Manual
Product Datasheet finish-thompson-db10p-m218.pdf
Rpm 3450 RPM
Self Priming Manual
Series DB10 Series
Specific Gravity 1.8
Suction Port 1 1/2" FNPT
Temp (f) @ 0 Psig 180°F
Temp (f) @ 0 Psig 180
Temp (f) @ 10 Psig 180°F
Temp (f) @ 10 Psig 180
Temp (f) @ 20 Psig 180°F
Temp (f) @ 20 Psig 180
Temp (f) @ 30 Psig 180°F
Type Straight
Viscosity (maximum) 100 cPS
Voltage 115/208-230V AC
Warranty 5 yrs.
Width 7 1/2"

Shipping Info:

Ship weight (kg) 22.19
Ship height (cm)34.04
Ship length (cm)57.15
Ship width (cm)33.02
HS code8413702005
Country of OriginUS

Documentation:

Datasheet

Product Variants

ProductModelHpVoltageMax. Outlet PressureFlow Rate @ 3 Ft.Flow Rate @ 6 Ft.Flow Rate @ 9 Ft.Flow Rate @ 24 Ft.Flow Rate @ 40 Ft.Price
FINISH THOMPSON DB5.5P-M622 Magnetic Drive Pump 1/2 Hp 115v Fkm Gasket | AA7AJD 15R528 DB5.5P-M6221/2 hp115V AC12.6 psi30 GPM30 GPM28 GPM17 GPM0 GPM€892.72
FINISH THOMPSON DB5.5P-E-M622 Magnetic Drive Pump 1/2 Hp 115v Epdm Gasket | AA7AJE 15R529 DB5.5P-E-M6221/2 hp115V AC12.6 psi30 GPM30 GPM28 GPM17 GPM0 GPM€915.86
FINISH THOMPSON DB5.5P-M617 Magnetic Drive Pump 1/2 Hp 230v Fkm Gasket | AA7AJF 15R530 DB5.5P-M6171/2 hp230V AC12.6 psi30 GPM30 GPM28 GPM17 GPM0 GPM€873.03
FINISH THOMPSON DB5.5P-E-M617 Magnetic Drive Pump 1/2 Hp 230v Epdm Gasket | AA7AJG 15R531 DB5.5P-E-M6171/2 hp230V AC12.6 psi30 GPM30 GPM28 GPM17 GPM0 GPM€873.03
FINISH THOMPSON DB5.5V-T-M622 Magnetic Drive Pump 1/2 Hp 115v Fkm Gasket | AA7AJH 15R532 DB5.5V-T-M6221/2 hp115V AC12.6 psi30 GPM30 GPM28 GPM17 GPM0 GPM€1,149.99
FINISH THOMPSON DB5.5V-T-M617 Magnetic Drive Pump 1/2 Hp 230v Fkm Gasket | AA7AJJ 15R533 DB5.5V-T-M6171/2 hp230V AC12.6 psi30 GPM30 GPM28 GPM17 GPM0 GPM€1,067.01
FINISH THOMPSON DB6P-M224 Pump Magnetic Drive 1/3 Hp 115/208-230vv | AC8KVV 3AZN4 DB6P-M2241/3 hp115/208-230V AC14.2 psi39 GPM39 GPM37 GPM23 GPM0 GPM€1,371.44
