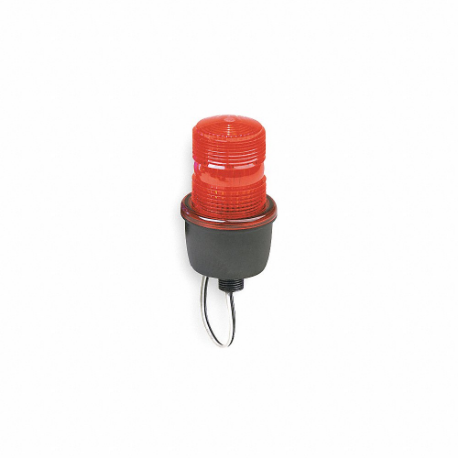

FEDERAL SIGNAL LP3ML-024R Low Profile Warning Light, Red, Steady Burn LED, 24V DC, 2.2 Joules
Item: CP4YKZModel: LP3ML-024RCross Ref: 2KFD8
7 In Stock
Red
1/2" NPT Male Pipe
24VDC
Ships within 2 days via
5.00% off
€209.53 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Warning Light |
| Amps Drawn | 0.08A |
| Brightness Selection | Fixed Brightness |
| Color | Red |
| Control Protocol | Direct Wire |
| Depth | 5 7/8" |
| Dia. | 3 1/8" , 3 5/8" |
| Enclosure Rating | Type 4X, IP55, IP66, IP69K |
| Environmental Rating | Ordinary Location |
| Flashes Per Minute | 0 FPM |
| Footprint Dia. | 3 1/8" |
| Footprint Shape | Circle |
| For Location | Indoor, Outdoor |
| Height | 5.812" |
| Housing Color | Black |
| Housing Material | Polycarbonate |
| Included | Gasket |
| Included Mounting Hardware | Mounting Hardware Included |
| Ip Rating | IP55, IP66, IP69K |
| Lamp Life Hours | 50000 hrs. |
| Lamp Type | Steady Burn LED |
| Lens Color | Red |
| Lens Design | Fresnel |
| Lens Material | Polycarbonate |
| Lens Shape | Dome |
| Lifespan | 50000 hrs. |
| Light Operating Mode | Steady |
| Light Source | LED |
| Max. Operating Temp. | 150°F |
| Min. Operating Temp. | -31°F |
| Mounting Location | Threaded Mount |
| Mounting Mechanism | 1/2" MNPT |
| Mounting Size | 1/2" |
| Mounting Style | Flush Mount |
| Mounting Thread Size | 1/2" MNPT |
| Mounting Type | MNPT |
| Nema Rating | NEMA 4X |
| Operating Amps | 0.15A @ 24V DC |
| Operating Temp. | -31°F to +150°F |
| Operating Voltage | 24V DC |
| Overall Dia. | 3 1/8" |
| Overall Height | 5 13/16" |
| Power Source | Wire |
| Product Datasheet | federal-signal-lp3e-120a.pdf |
| Product Type | Warning Light |
| Rating | IP66, NEMA 4X |
| Requires Base | Base Not Required |
| Voltage | 24V DC |
Shipping Info:
| Ship weight (kg) | 0.28 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Height | Color | Dia. | Operating Voltage | Lens Color | Operating Amps | Overall Height | Amps Drawn | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
LP3TL-120A | 5 1/8" | Amber | 3 1/8" | 120V AC | Amber | 0.6A @ 120V AC | 5 3/32" | 0.13A | €220.56 | |
 |
LP3ML-120A | 5.812" | Amber | 3 1/8" | 120V AC | Amber | 0.6A @ 120V AC | 5 13/16" | 0.13A | €199.49 | |
 |
LP3PL-120A | 5 3/4" | Amber | 3 1/8" | 120V AC | Amber | 0.6A @ 120V AC | 5 11/16" | 0.13A | €220.56 | |
|
LP3ML-024A | 5.812" | Amber | 3 1/8" | 24V DC | Amber | 0.15A @ 24V DC | 5 13/16" | 0.08A | €220.56 | |
 |
LP3PL-024A | 5 3/4" | Amber | 3 1/8" | 24V DC | Amber | 0.15A @ 24V DC | 5 11/16" | 0.08A | €275.72 | |
 |
LP3ML-120G | 5.812" | Green | 3 1/8" | 120V AC | Green | 0.6A @ 120V AC | 5 13/16" | 0.13A | €199.49 | |
 |
LP3TL-120G | 5 1/8" | Green | 3 1/8" | 120V AC | Green | 0.6A @ 120V AC | 5 3/32" | 0.13A | €220.56 |
