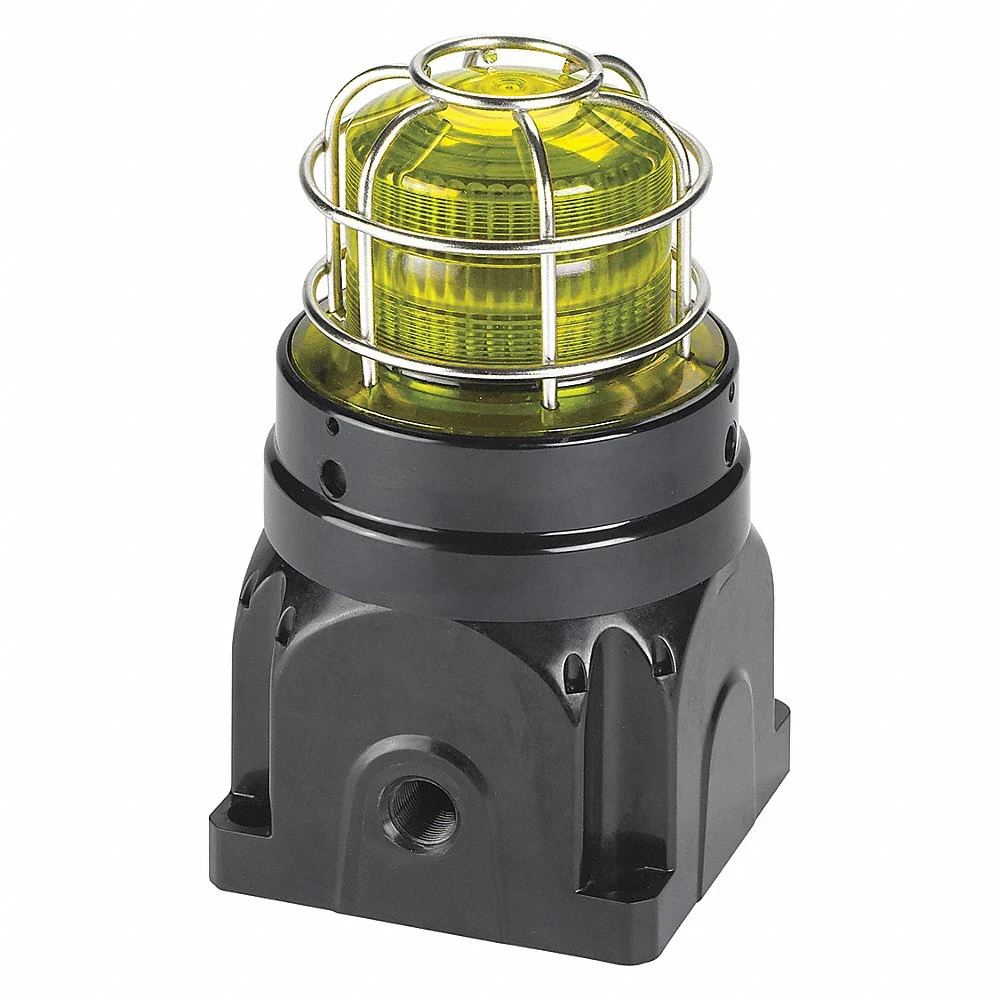

FEDERAL SIGNAL G-STR-024-D-Y Strobe Light, Yellow, Xenon, 24V DC, 21 Joules, 10000 hr Lamp Life, Fresnel
Item: CP4YHGModel: G-STR-024-D-YCross Ref: 46KT77
7 In Stock
Yellow
24VDC
Surface
Ships within 2 days via
5.00% off
€1,038.83 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Strobe |
| Amps Drawn | 1.5A |
| Atex/iecex Certification Marking | Atex Baseefa15Atex0154X, Ex Tb Iiic dB Ip66. T3 @ 70°C, Iecex Iecex Bas 15.0103X, Ii 2Gd Ex D Iic Gb, Ii 2Gd Ex De Iic Gb |
| Brightness Selection | Fixed Brightness |
| Cable Entries | Ex D 2 Entries-M20 x 1.5, Ex De 2X3 Position Quad Pole Terminal Block, Ex De 3 Entries-M20 x 1.5 |
| Color | Yellow |
| Connection Type | Termin, Al Block |
| Control Protocol | User Operated |
| Depth | 5.234" |
| Enclosure Rating | Type 4A, IP66, IP67, IP69K |
| Environmental Rating | Hazardous Location |
| Flashes Per Minute | 60 FPM |
| Footprint Length | 5 1/4" |
| Footprint Shape | Square |
| Footprint Width | 5 1/4" |
| For Hazardous Location | Class I, Division 2, Class Il, Division 2 |
| Guard & External Fasteners Grade | Grade 316 |
| Guard & External Fasteners Material | Stainless Steel |
| Height | 8.953" |
| Housing Color | Black |
| Housing Material | Glass Reinforced Polyester |
| Included | Dome Guard |
| Included Mounting Hardware | Mounting Hardware Included |
| Ip Rating | IP66, IP67, IP69K |
| Lamp Life | 10000 hrs. |
| Lamp Type | Xenon |
| Length | 5 7/32" |
| Lens Color | Yellow |
| Lens Design | Fresnel |
| Lens Material | Polycarbonate |
| Lens Shape | Dome |
| Lifespan | 10000 hrs. |
| Light Intensity | 500 cd |
| Light Operating Mode | Strobe |
| Light Output | 21J |
| Light Source | Strobe |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -67°F |
| Mounting Location | Ceiling Mount, Wall Mount |
| Mounting Mechanism | Screw |
| Mounting Style | Surface Mount |
| Mounting Type | Surface |
| Nema Rating | NEMA 4X |
| Operating Amps | 0.83 @24V DC, 0.33 @120V AC, 0.19 @220-240V AC , 0.83A @ 24V DC |
| Operating Temp. | -58°F to +158°F |
| Operating Voltage | 24V DC |
| Overall Height | 8 15/16" |
| Overall Length | 5 7/32" |
| Overall Width | 5 7/32" |
| Power Source | Wire |
| Product Datasheet | federal-signal-g-led-ac-d-a.pdf |
| Product Type | Strobe Light |
| Rating | IP66 |
| Requires Base | Base Not Required |
| Terminals | EX D 6 Way Block (3", 3 Out) |
| Ul/cul Certification Marking | B, C, Class I, Class II, Class III T4A @ 70°C, D T3 @ 70°C, Division 2, G T4A @ 70°C, Groups A, Groups F, UL and cUL E207119 |
| Width | 5 7/32" |
Shipping Info:
| Ship weight (kg) | 3.69 |
| Ship height (cm) | 22.74 |
| Ship length (cm) | 13.3 |
| Ship width (cm) | 13.3 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Color | Operating Voltage | Lens Color | Amps Drawn | Power Source | Mounting Type | Depth | Mounting Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G-STR-230-D-B | Blue | 220-240V AC | Blue | 0.34A | Wire | Surface | 5.234" | Surface Mount | €1,005.02 | |
 |
G-STR-024-D-R | Red | 24V DC | Red | 1.5A | Wire | Surface | 5.234" | Surface Mount | €1,093.50 | |
 |
G-STR-230-T-Y | Yellow | 220-240V AC | Yellow | 0.34A | Wire | U Bracket | 7.453" | Flush Mount | €1,059.79 | |
 |
G-STR-120-T-R | Red | 120V AC | Red | 0.45A | Wire | U Bracket | 7.453" | Flush Mount | €1,085.26 | |
|
G-STR-120-D-B | Blue | 120V AC | Blue | 0.45A | Wire | Surface | 5.234" | Surface Mount | €986.94 | |
 |
G-STR-230-D-G | Green | 220-240V AC | Green | 0.34A | Wire | Surface | 5.234" | Surface Mount | €1,005.02 | |
|
G-STR-024-D-B | Blue | 24V DC | Blue | 1.5A | Wire | Surface | 5.234" | Surface Mount | €1,093.50 |
