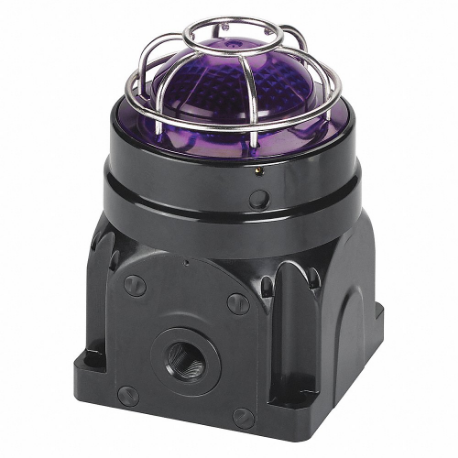

FEDERAL SIGNAL G-LED-AC-D-M Beacon Warning Light, Magenta, LED, 120 to 240VAC, 400 Lumens, 50000 hr Lamp Life
Item: CP4YNMModel: G-LED-AC-D-MCross Ref: 46KU19
7 In Stock
Magenta
120-240VAC
Surface
Ships within 2 days via
5.00% off
€1,200.65 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Warning Light |
| Amps Drawn | 0.12-0.07A |
| Atex/iecex Certification Marking | Atex Baseefa15Atex0153X,Ex Tb Iiic dB Ip66. T6 @ 58°C, T5 @ 70ºc,Iecex Iecex Bas 15.0102X,Ii 2Gd Ex dB E Op Is Iic Gb,Ii 2Gd Ex De Iic Gb |
| Brightness Selection | Fixed Brightness |
| Cable Entries | Ex D 2 Entries-M20 x 1.5, Ex De 3 Entries-M20 x 1.5 |
| Color | Magenta |
| Connection Type | Termin, Al Block |
| Control Protocol | User Operated |
| Depth | 5.234" |
| Enclosure Rating | Type 4A, IP66, IP67, IP69K |
| Environmental Rating | Hazardous Location |
| Flashes Per Minute | 60/75/90 FPM |
| Footprint Length | 5 1/4" |
| Footprint Shape | Square |
| Footprint Width | 5 1/4" |
| For Hazardous Location | Class I, Division 2, Class Il, Division 2 |
| Guard & External Fasteners Grade | Grade 316 |
| Guard & External Fasteners Material | Stainless Steel |
| Height | 7 1/2" |
| Housing Color | Black |
| Housing Material | Glass Reinforced Polyester |
| Included | Dome Guard |
| Included Mounting Hardware | Mounting Hardware Included |
| Ip Rating | IP66, IP69K |
| Lamp Life | 50000 hrs. |
| Length | 5 7/32" |
| Lens Color | Magenta |
| Lens Design | Fresnel |
| Lens Material | Polycarbonate |
| Lens Shape | Dome |
| Lifespan | 50000 hrs. |
| Light Intensity | 175 cd |
| Light Operating Mode | Strobe, Flashing, Rotating |
| Light Output | 400 lm |
| Light Source | LED |
| Max. Operating Temp. | 158°F |
| Min. Operating Temp. | -67°F |
| Mounting Location | Ceiling Mount, Wall Mount |
| Mounting Mechanism | Screw |
| Mounting Style | Surface Mount |
| Mounting Type | Surface |
| Nema Rating | NEMA 4X |
| Operating Amps | 0.07-0.12A @ 120-240V AC |
| Operating Temp. | -58°F to +158°F |
| Operating Voltage | 120-240V AC |
| Overall Height | 7 1/2" |
| Overall Length | 5 7/32" |
| Overall Width | 5 7/32" |
| Power Source | Wire |
| Product Datasheet | federal-signal-g-led-ac-d-a.pdf |
| Product Type | Warning Light |
| Rating | IP66 |
| Requires Base | Base Not Required |
| Terminals | EX D 6 Way Block (3", 3 Out), EX DE 3-Pole, 4 Position Quad Pole Terminal Blocks |
| Ul/cul Certification Marking | B, C, Class I, Class II, Class III T6 @ 70°C, D T4 @ 70°C, Division 2, G T6 @ 70°C, Groups A, Groups F, UL and cUL E207119 |
| Width | 5 7/32" |
Shipping Info:
| Ship weight (kg) | 3.35 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 13.3 |
| Ship width (cm) | 13.3 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Color | Operating Voltage | Lens Color | Operating Amps | Power Source | Mounting Type | Amps Drawn | Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
G-LED-AC-T-A | Amber | - | - | - | 120-240V AC | U Bracket | 0.12-0.07A | 8.484" | €1,284.18 | |
 |
G-LED-AC-D-A | Amber | 120-240V AC | Amber | 0.07-0.12A @ 120-240V AC | Wire | Surface | 0.12-0.07A | 7.453" | €1,354.12 | |
 |
G-LED-DC-D-A | Amber | 24V DC | Amber | 0.3A @ 24V DC | Wire | Surface | 0.3A | 5.234" | €1,396.29 | |
|
G-LED-DC-T-A | Amber | 24V DC | Amber | 0.3A @ 24V DC | Wire | U Bracket | 0.3A | 8.484" | €1,505.59 | |
 |
G-LED-AC-T-B | Blue | 120-240V AC | Blue | 0.07-0.12A @ 120-240V AC | Wire | U Bracket | 0.12-0.07A | 8.484" | €1,284.18 | |
 |
G-LED-DC-D-B | Blue | 24V DC | Blue | 0.3A @ 24V DC | Wire | Surface | 0.3A | 5.234" | €1,396.29 | |
|
G-LED-DC-T-B | Blue | 24V DC | Blue | 0.3A @ 24V DC | Wire | U Bracket | 0.3A | 8.484" | €1,505.59 |
