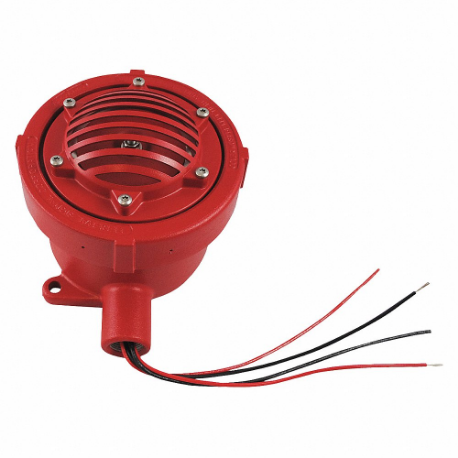

FEDERAL SIGNAL FHEX-24SMR Vibrating Horn, 24V DC, 99 dB Decibels, Indoor/Outdoor, Conduit, 7.625 Inch Height
Item: CP4YJQModel: FHEX-24SMRCross Ref: 447D86
7 In Stock
Ships within 2 days via
5.00% off
€2,265.70 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Vibrating Horn |
| Amps | 1.2A |
| Amps Drawn | 1.2A |
| Audible Alarm Type | Horn |
| Color | Red |
| Control Protocol | Direct Wire |
| Depth | 6 1/2" |
| Environmental Rating | Explosion Proof |
| Features | Supervisory Diode And Four Wires |
| For Hazardous Location | Class I, Division 1, Class Il, Division 1 |
| For Location | Indoor, Outdoor |
| Height | 7 5/8" |
| Housing Color | Red |
| Housing Material | Die Cast Aluminum |
| Included | Horn |
| Indoor/outdoor | Indoor, Outdoor |
| Ip Rating | IP66 |
| Legend | Non Applicable |
| Material | Cast Aluminum |
| Max. Alarm Volume @ 1 M | 109 dBA |
| Max. Alarm Volume @ 10 Ft. | 99 dBA |
| Max. Operating Temp. | 150°F |
| Min. Operating Temp. | -31°F |
| Mounting | Conduit |
| Mounting Location | Conduit Mount |
| Nema Rating | NEMA 4X |
| Noise Level | 99 dBA |
| Operating Temp. | -31°F to +150°F |
| Operating Voltage | 24V DC |
| Overall Depth | 6 1/2" |
| Overall Dia. | 6 1/2" |
| Overall Length | 7 5/8" |
| Overall Width | 6 1/2" |
| Power Source | Wire |
| Product Type | Horn |
| Rating | NEMA 4X, IP66, UL Listed, CUL Listed For Class I, Division 1 |
| Sound Principle | Vibrating |
| Sound Style | Horn |
| Vibration | Vibrating |
| Voltage | 24V DC |
| Width | 6 1/2" |
Shipping Info:
| Ship weight (kg) | 4.64 |
| Ship height (cm) | 19.37 |
| Ship length (cm) | 16.51 |
| Ship width (cm) | 16.51 |
| Country of Origin | US |
Product Variants
| Product | Model | Height | Color | Depth | Voltage | Housing Material | Audible Alarm Type | Indoor/outdoor | Operating Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
506-120-1 | 6" | Gray | 2 5/8" | 120V AC | - | Bell | Indoor, Outdoor | -31°F to +150°F | €489.13 | |
 |
504-120-1 | 4" | Gray | 2 1/4" | 120V AC | - | Bell | Indoor, Outdoor | -31°F to +150°F | €326.50 | |
 |
EHORN-120-240 | 8 1/2" | Gray | 9.609" | 120/240V AC | Plastic | Horn | Indoor, Outdoor | -40°F to +150°F | €3,958.47 | |
|
EHORN-024 | 8 1/2" | Gray | 9.609" | 24V DC | Plastic | Horn | Indoor, Outdoor | -40°F to +150°F | €3,785.60 | |
 |
450EWBX-024 | 4.391" | Gray | 3 7/8" | 12-24V DC | Polycarbonate | Horn | Indoor | -65°F to +150°F | €990.55 | |
 |
LP7-18-30A | 3 1/2" | White, Amber | - | 18-30V DC | ABS | Siren | - | +14°F to +131°F | €289.61 | |
 |
LP7-18-30R | 3 1/2" | White, Red | - | 18-30V DC | ABS | Siren | - | +14°F to +131°F | €294.24 |
