FEDERAL SIGNAL 224XST-024B Hazardous Location Warning Light, Blue, Strobe Tube, 24 VDC, 580000 Candela, Fresnel
Item: CP4YAWModel: 224XST-024BCross Ref: 447D38
7 In Stock
Ships within 2 days via
10.00% off
€1,208.62 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Warning Light |
| Amps Drawn | 0.7A |
| Brightness Selection | Fixed Brightness |
| Color | Blue |
| Connection Type | Wire |
| Control Protocol | Direct Wire |
| Depth | 5 1/2" |
| Diameter | 5 1/2" |
| Enclosure Rating | Type 4X, IP66, IP69K |
| Environmental Rating | Hazardous Location |
| Flashes Per Minute | 80 FPM |
| Footprint Diameter | 5 1/2" |
| Footprint Shape | Circle |
| For Hazardous Location | Class I, Division 2, Class Il, Division 2 |
| Height | 7 1/2" |
| Housing Color | Black |
| Housing Material | Aluminum |
| Includes Mounting Hardware | No Mounting Hardware |
| Ip Rating | IP66, IP69K |
| Lamp Life | 10000 hrs. |
| Lamp Type | Strobe Tube |
| Lens Color | Blue |
| Lens Design | Fresnel |
| Lens Material | Polycarbonate |
| Lens Shape | Dome |
| Lifespan | 10000 hrs. |
| Light Intensity | 580000 cd |
| Light Operating Mode | Strobe |
| Light Output | 580000 cd |
| Light Source | Strobe |
| Mounting Location | Threaded Mount |
| Mounting Style | Surface Mount |
| Mounting Thread Size | 1/2" |
| Nema Rating | NEMA 4X |
| Operating Current | 0.7A @ 24V DC |
| Operating Current (amps) | 0.7A |
| Operating Temp. | -40°F to +104°F |
| Operating Temperature - Maximum | 104°F |
| Operating Temperature - Minimum | -40°F |
| Operating Voltage | 24V DC |
| Overall Height | 7 1/2" |
| Power Source | Wire |
| Product Type | Strobe Light |
| Rating | IP66, NEMA 4X |
| Requires Base | Base Required |
| Voltage | 24V DC |
| Warranty | 5 yrs. |
| Width | 5 1/2" |
Shipping Info:
| Ship weight (kg) | 1.17 |
| Ship height (cm) | 19.05 |
| Ship length (cm) | 13.97 |
| Ship width (cm) | 13.97 |
| Country of Origin | US |
Product Variants
| Product | Model | Lens Color | Light Source | Height | Flashes Per Minute | Voltage | Diameter | Power Source | Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
224XST-024A | Amber | Strobe | 7 1/2" | 80 FPM | 24V DC | 5 1/2" | Wire | 5 1/2" | €1,415.00 | |
 |
224XST-024C | Clear | Strobe | 7 1/2" | 80 FPM | 24V DC | 5 1/2" | Wire | 5 1/2" | €1,342.92 | |
 |

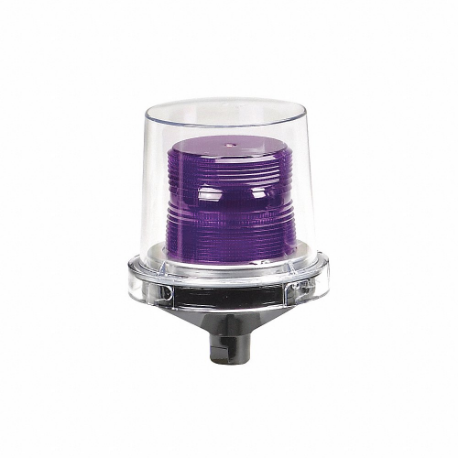

224XST-024M | Magenta | Strobe | 7 1/2" | 80 FPM | 24V DC | 5 1/2" | Wire | 5 1/2" | €1,342.92 | |
 |
224XST-024R | Red | Strobe | 7 1/2" | 80 FPM | - | - | Wire | 5 1/2" | €1,413.40 |
