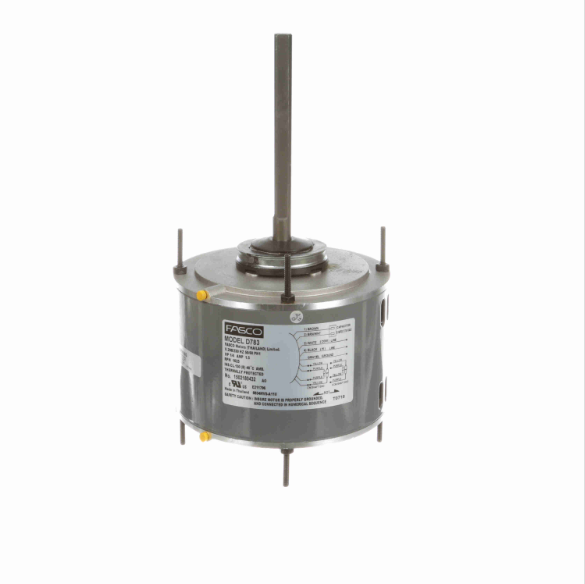

FASCO D783 Motor, 1.4 HP, 208/230V, 1625 RPM
Get it by Tuesday, Dec 23
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€362.15 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Motor |
| Ambient Temp. | 40°C |
| Amps | 1.58A |
| Body Diameter | 5.6" |
| Capacitor Required | Yes |
| Drive End Bearing | Sleeve |
| Duty | Continuous |
| Electrical Type | Permanent Split Capacitor |
| Fits Brand | Fasco |
| Frame | 48 |
| Frame Length | 3.45" |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Current | 1.58A |
| Hp | 1/4 hp |
| Includes Capacitor | No |
| Insulation Class | Class B |
| Length Less Shaft | 4" |
| Motor Bearings | Sleeve |
| Motor Design | 1 Phase |
| Motor Enclosure Design | ODP |
| Motor Mounting Type | Extended Studs |
| Motor Shaft Rotation | CW/CCW |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1625 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 1 |
| Number Of Speeds | 1 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/4 hp |
| Output Kw | 0.19 kW |
| Overall Length | 10 15/16" |
| Permanent Split Capacitor Required | 5 µf, 370V |
| Phase | 1 |
| Product Type | Motor |
| Rpm | 1625 RPM |
| Rpm Range | 1601-1700 RPM |
| Service Factor | 1 |
| Shaft Diameter | 1/2" |
| Shaft Extension Size | 5.94" |
| Shaft Length | 5 15/16" |
| Shaft Type | Double Flat |
| Starting Method | Across The Line |
| Thermal Protection | Automatic |
| Usable @ 208 V | Yes |
| Voltage | 208-230V |
Shipping Info:
| Ship weight (kg) | 5.04 |
| Ship height (cm) | 14.3 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 14.3 |
| Country of Origin | TH |
