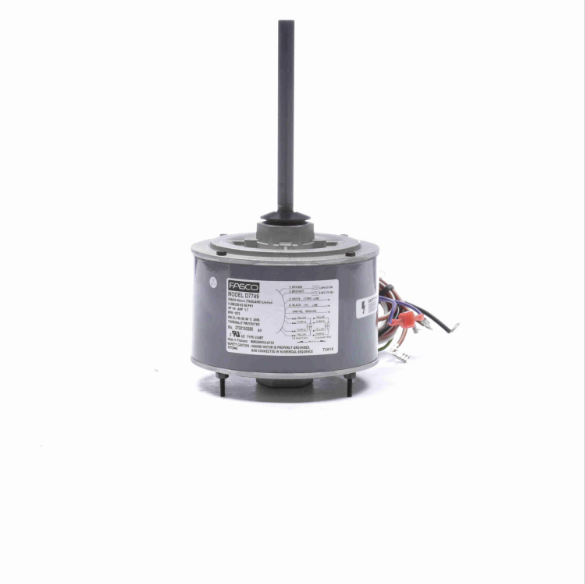

FASCO D7749 Condenser Fan Motor, Stud Mount, Open Dripproof, 1/4 HP, 1075 RPM, 1 Speed
Item: CH9XBFModel: D7749Cross Ref: 49VT86
7 In Stock
Ships within 2 days via
10.00% off
€190.37 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Condenser Fan Motor |
| Ambient Temp. | 60°C |
| Amps | 1.7A |
| Bearing Type | Ball |
| Body Dia. | 5 5/8" |
| Bolt Circle Dia. | 5 1/4" |
| Capacitor Required | Yes |
| Dia. | 5 5/8" |
| Diameter | 5 5/8" |
| Drive End Bearing | Ball |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Efficiency | 59% |
| Electrical Type | Permanent Split Capacitor |
| Enclosure Type | Open Dripproof |
| Features | Belly Band, Extended Studs Lead End, Thermally Protected |
| Frame | 48 |
| Frame Length | 3.74" |
| Frame Material | Rolled Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.7A |
| Hp | 1/4 hp |
| Hz | 60 Hz |
| Includes Capacitor | No |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Lead Length | 27" |
| Length | 10 1/4" |
| Length Less Shaft | 3 3/4" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 60°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | ODP |
| Motor Frame Material | Steel |
| Motor Mounting Position | All Angle |
| Motor Mounting Type | Stud |
| Motor Mounting Type | Extended Studs |
| Motor Service Factor | 1 |
| Motor Shaft Design | Double Flat |
| Motor Shaft Rotation | CW/CCW |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Auto |
| Motor Type | Permanent Split Capacitor |
| Mounting Stud Pattern | 3 11/16" x 3 11/16" |
| Mounting Stud Size | #8-32 |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1075 RPM |
| No. Of Poles | 6 |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Nominal Efficiency | 59% |
| Number Of Studs | 4 |
| Opp Drive End Bearing | Ball |
| Output Hp | 1/4 hp |
| Output Kw | 0.19 kW |
| Output Wattage | 190 W |
| Overall Length | 10 1/4" |
| Permanent Split Capacitor Required | 5 µf, 370V |
| Phase | 1 |
| Power | 190 W |
| Power | 0.19 kW |
| Removable Base | Yes |
| Rpm | 1075 RPM |
| Service Factor | 1 |
| Shaft Extension Size | 6.5" |
| Shaft Length | 6 1/2" |
| Shaft Type | Double Flat |
| Starting Method | Across The Line |
| Stud Pattern | 3 11/16" x 3 11/16" |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 208-230V |
Shipping Info:
| Ship weight (kg) | 4.68 |
| Ship height (cm) | 14.3 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 14.3 |
| Country of Origin | TH |
Product Variants
| Product | Model | Voltage | Motor Enclosure Design | Motor Design | No. Of Speeds | Frame | Phase | Hp | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D0636 | 115V | OAO | Shaded Pole | 1 | 3.3 | 1 | 1/88 hp | Automatic | €125.54 | |
 |
D1006 | 115V | OAO | Shaded Pole | 1 | 4.4 | 1 | 1/4 hp | Automatic | €591.53 | |
 |
D1039 | 115V | OAO | Shaded Pole | 1 | 4.4 | 1 | 1/10 hp | Automatic | €473.19 | |
 |
D1041 | 265V | OAO | Permanent Split Capacitor | 3 | 42 | 1 | 1/15 hp | Automatic | €350.82 | |
 |
D1044 | 115V | OAO | Permanent Split Capacitor | 3 | 42 | 1 | 1/4 hp | Automatic | €382.29 | |
 |
D1053 | 265V | OAO | Permanent Split Capacitor | 3 | 42 | 1 | 1/30 hp | Automatic | €324.04 | |
 |
D1061 | 115V | OAO | Shaded Pole | 3 | 4.4 | 1 | 1/20 hp | Auto | €483.70 |
