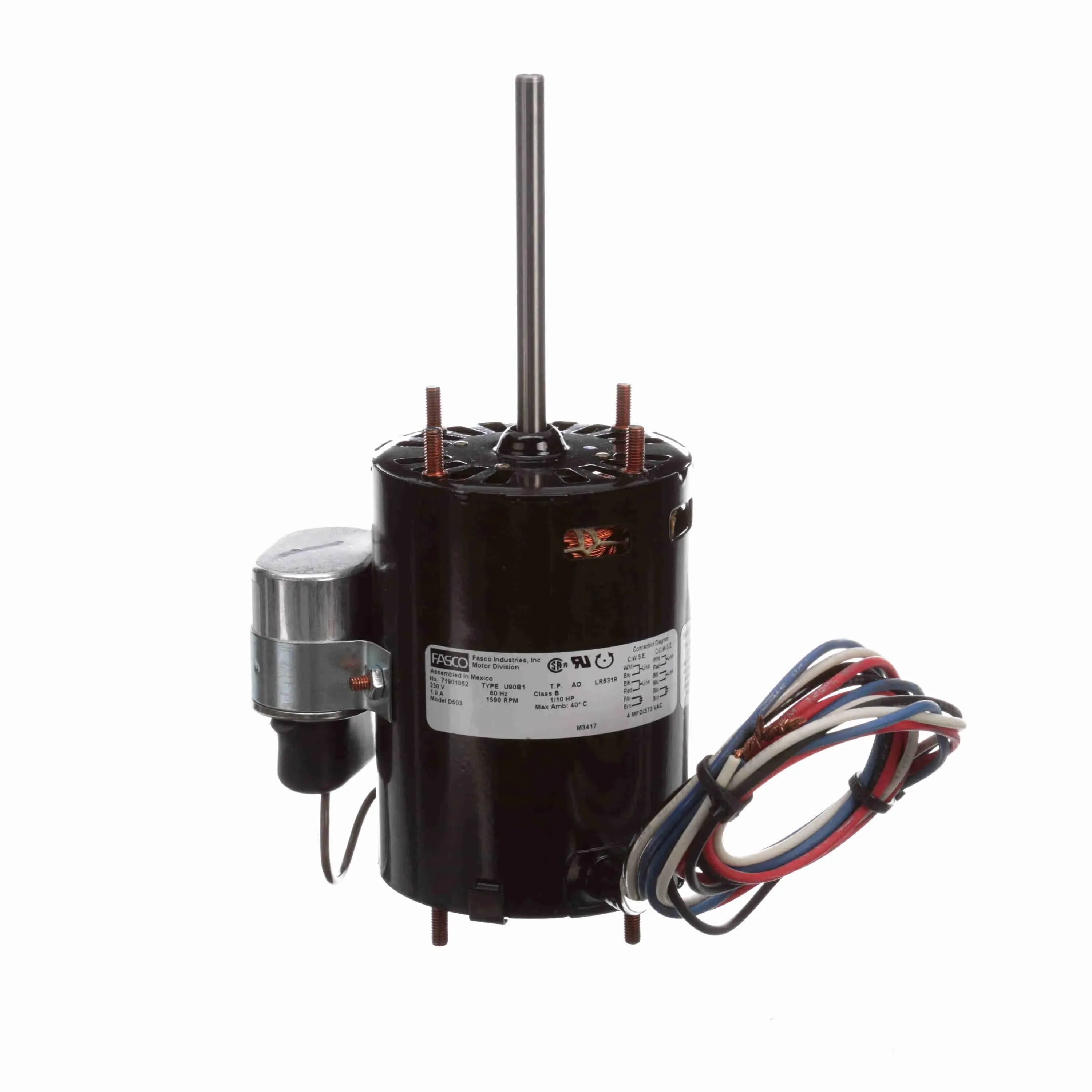

FASCO D503 Fan and Blower Motor, 1/10 HP, 1 Phase, 60 Hz, 230 V, 1590 RPM, 1 Speed, 3.3 Inch Diameter

Fasco D503 HVAC motor is suitable for heating, ventilation and air conditioning (HVAC) systems to drive fans and facilitate air circulation. Its efficient and reliable design ensures proper temperature control and air quality within residential and commercial spaces. This motor is used in various HVAC equipment, such as furnaces, air handlers and condenser units, to power the blower fans & ensure efficient air distribution for optimal climate control & comfort.

Features:

• This Fasco motor has a steel frame, providing robust construction and durability for long-lasting performance.
• It has a permanent split capacitor for enhanced motor efficiency and performance.
• This motor features automatic thermal protection for enhanced safety and longevity.
• It features an open air-over enclosure design for optimal cooling in its application.
• This motor is equipped with sleeve bearings to provide cost-effective and reliable support for the motor's shaft.
• It has stud mounting, providing a secure & stable attachment option in HVAC systems.

Frequently Asked Questions:

Q. How should I maintain this Fasco D503 HVAC motor for optimal performance?

A.

• Regularly inspect the motor for signs of wear, damage or loose components.
• Ensure the motor is clean and free from debris that can obstruct airflow.
• Lubricate the motor's bearings as recommended by the manufacturer.
• Check and replace the capacitor as needed.
• Keep the motor and its surroundings free from dust and contaminants.

Q. What is the insulation Class of the motor?

A. The motor has an insulation Class of B. It ensures that the motor can handle the heat generated during operation without posing a risk of electrical failure or fire.

Q. What safety precautions should I take while using this Fasco HVAC motor?

A.

• Always disconnect the power supply before installing, servicing or inspecting the motor.
• Use proper personal protective equipment (PPE) such as gloves and safety glasses.
• Ensure the motor is properly grounded to prevent electrical hazards.
• Do not operate the motor if it shows signs of damage or malfunction.
• Keep flammable materials away from the motor to prevent fire hazards.

Q. What are the factors to consider while choosing this Fasco HVAC motor?

A. Major factors include specifications, electrical compatibility, motor enclosure, thermal protection, bearing type and ambient conditions to ensure it meets the specific requirements of your HVAC system &application.
