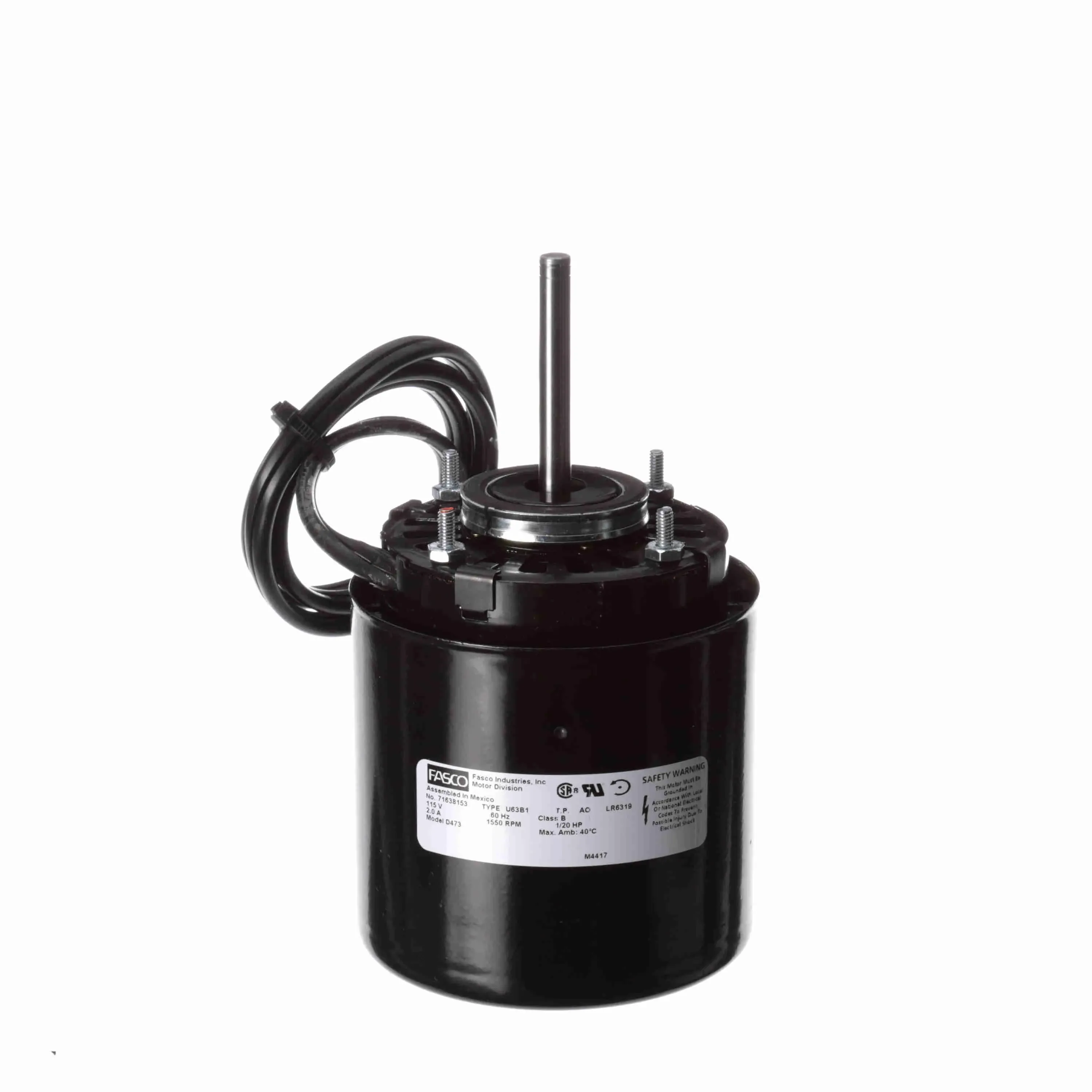

FASCO D473 Refrigeration Motor, 1/20 HP, 1 Phase, 60 Hz, 115 V, 1550 RPM, 1 Speed
Item: AH3KPUModel: D473Cross Ref: 32NA59
7 In Stock
Ships within 2 days via
10.00% off
€271.73 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Refrigeration Motor |
| Ambient Temp. | 40°C |
| Amps | 2A |
| Application | HVAC/R |
| Bearing Type | Sleeve |
| Body Dia. | 3 5/16" |
| Bolt Circle Dia. | 2 7/8" |
| Capacitor Required | No |
| Cord Length | 34" |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Duty Cycle | Continuous |
| Electrical Type | Shaded Pole |
| Frame | 3.3 |
| Frame Length | 2.95" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2A |
| Hp | 1/20 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Lead Length | 33" |
| Length | 7.37" |
| Length Less Shaft | 5 1/16" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | OAO |
| Motor Frame Material | Steel |
| Motor Mounting Type | Extended Studs |
| Motor Mounting Type | Ring, Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Shaft Rotation | CCWSE |
| Motor Sub Application | Refrigerator/Freezer |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting Holes | (4) #8-32 |
| Mounting Stud Location | 4/Shaft End |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1550 RPM |
| No. Of Poles | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/20 hp |
| Output Kw | 0.04 kW |
| Overall Length | 7 3/8" |
| Phase | 1 |
| Rpm | 1550 RPM |
| Service Factor | 1 |
| Shaft Dia. | 0.313" |
| Shaft Extension Size | 2.65" |
| Shaft Length | 2 5/8" |
| Shaft Type | Flat And Groove |
| Starting Method | Across The Line |
| Stud Location | Shaft End |
| Stud Size | #8-32 |
| Stud/base Mtg. Pattern | 2-27-32" x 90 Degrees |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V |
| Weight | 5 lbs. |
Shipping Info:
| Ship weight (kg) | 2.07 |
| Ship height (cm) | 11.43 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 11.43 |
| Country of Origin | MX |
Product Details:
- No. of Speeds : 1
