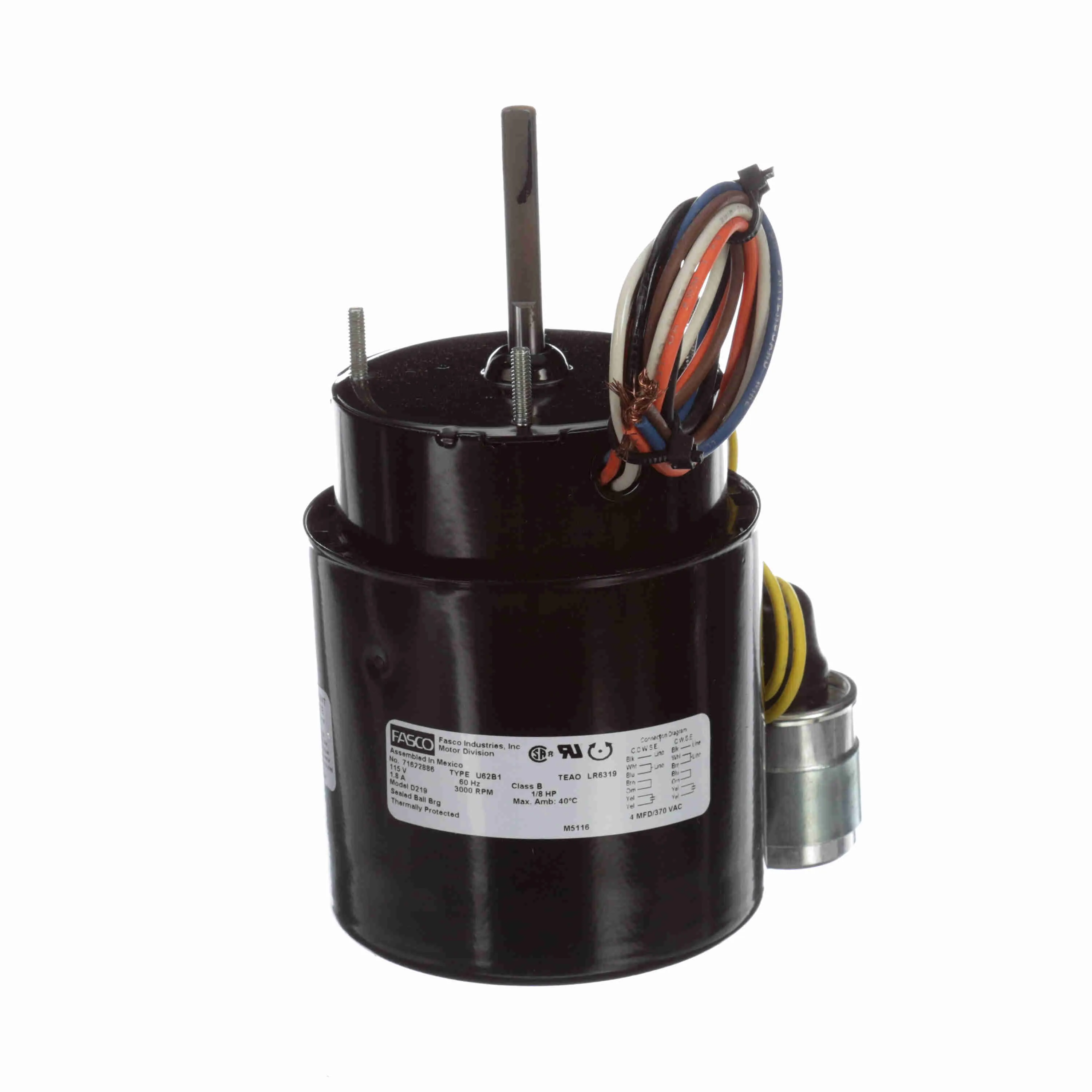

FASCO D219 Hvac Motor 1/8 Hp 3000 Rpm 115v 3.3 | AC7LTD 38N525

FASCO D219 Fan and Blower Motor, 1/8 HP, 1 Phase, 60 Hz, 115 V, 3000 RPM, 1 Speed, 3.3 Inch Diameter

Item: AC7LTDModel: D219Cross Ref: 38N525
7 In Stock

Ships within 2 days via

€472.20
10.00% off
€424.98 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Blower/Fan Motor
Ambient Temp. 40°C
Amps 1.8A
Application HVAC/R
Bearing Type Ball
Body Dia. 3 5/16"
Bolt Circle Dia. 2 7/8"
Capacitor Required Included
Drive End Bearing Ball
Duty Continuous Air Over
Duty Cycle Continuous
Electrical Type Permanent Split Capacitor
Frame 3.3
Frame Length 4.94"
Frame Material Steel
Frequency 60 Hz
Full Load Amps 1.1A
Hp 1/8 hp
Hz 60 Hz
Includes 4 MFD 370V AC Capacitor
Includes Capacitor Yes
Ins. Class Class B
Insulation Class Class B
Lead Length 12"
Length 7.24"
Length Less Shaft 5 3/16"
Max. Ambient Temp. 40°C
Motor Application HVAC/R
Motor Bearings Ball
Motor Design Permanent Split Capacitor
Motor Enclosure Design TEAO
Motor Frame Material Steel
Motor Mounting Type Ring, Stud
Motor Mounting Type Extended Studs
Motor Service Factor 1
Motor Shaft Design Flat
Motor Shaft Rotation CW/CCW
Motor Sub Application Direct Drive Fan/Blower
Motor Thermal Protection Auto
Motor Type Permanent Split Capacitor
Mounting Stud
Mounting Holes (4) #8-32
Mounting Pattern 2-7/8 x 2-7/8
Mounting Stud Location 4/Shaft End
Mounting Stud Pattern 2 7/8" x 2 7/8"
Mounting Type Extended Studs
Nameplate Rpm 3000 RPM
No. Of Poles 2
No. Of Shafts 1
No. Of Speeds 1
No. Of Studs 4
Opp Drive End Bearing Ball
Output Hp 1/8 hp
Output Kw 0.10 kW
Overall Length 7 1/4"
Permanent Split Capacitor Required 4 µf, 370V
Phase 1
Rpm 3000 RPM
Service Factor 1
Shaft Dia. 0.312"
Shaft Extension Size 2.3"
Shaft Length 2 1/4"
Shaft Type Flat
Starting Method Across The Line
Stud Location Shaft End
Stud Pattern 2 7/8" x 2 7/8"
Stud Size #8-32
Stud/base Mtg. Pattern 2-7/8 x 2-7/8"
Thermal Protection Automatic
Usable @ 200v No
Usable @ 208v No
Voltage 115V

Shipping Info:

Ship weight (kg) 2.7
Ship height (cm)12.7
Ship length (cm)20.32
Ship width (cm)14.3
HS code8501404040
Country of OriginMX

Product Details:

Fasco D219 HVAC motor is ideal for starting up ventilation equipment smoothly. It is helpful for silently lowering the temperature in manufacturing facilities, warehouses and commercial workspaces.

Features:

  • Fasco D219 HVAC motor has a permanent split capacitor that decreases the power consumed for a given load.
  • It features a TEFC enclosure and extended studs to ensure easy and safe installation.
  • Its motor is reversible and can spin both clockwise and anticlockwise.
  • This single-phase HVAC motor has a steel frame to ensure durability.
  • It has Class B insulation for thermal protection.
  • Fasco D219 HVAC motor has a flat shaft with ball bearings at both ends for seamless power transmission.

Frequently Asked Questions:

Q. How can I determine if my Fasco HVAC motor is working efficiently?

A. Monitoring energy consumption, consistent temperature control and regular maintenance can help you assess the efficiency of your HVAC motor.

Q. What are the key maintenance tasks for keeping HVAC motors in good condition?

A. Regular maintenance tasks include cleaning or replacing air filters, lubricating moving parts, checking electrical connections and inspecting the motor for wear & tear.
