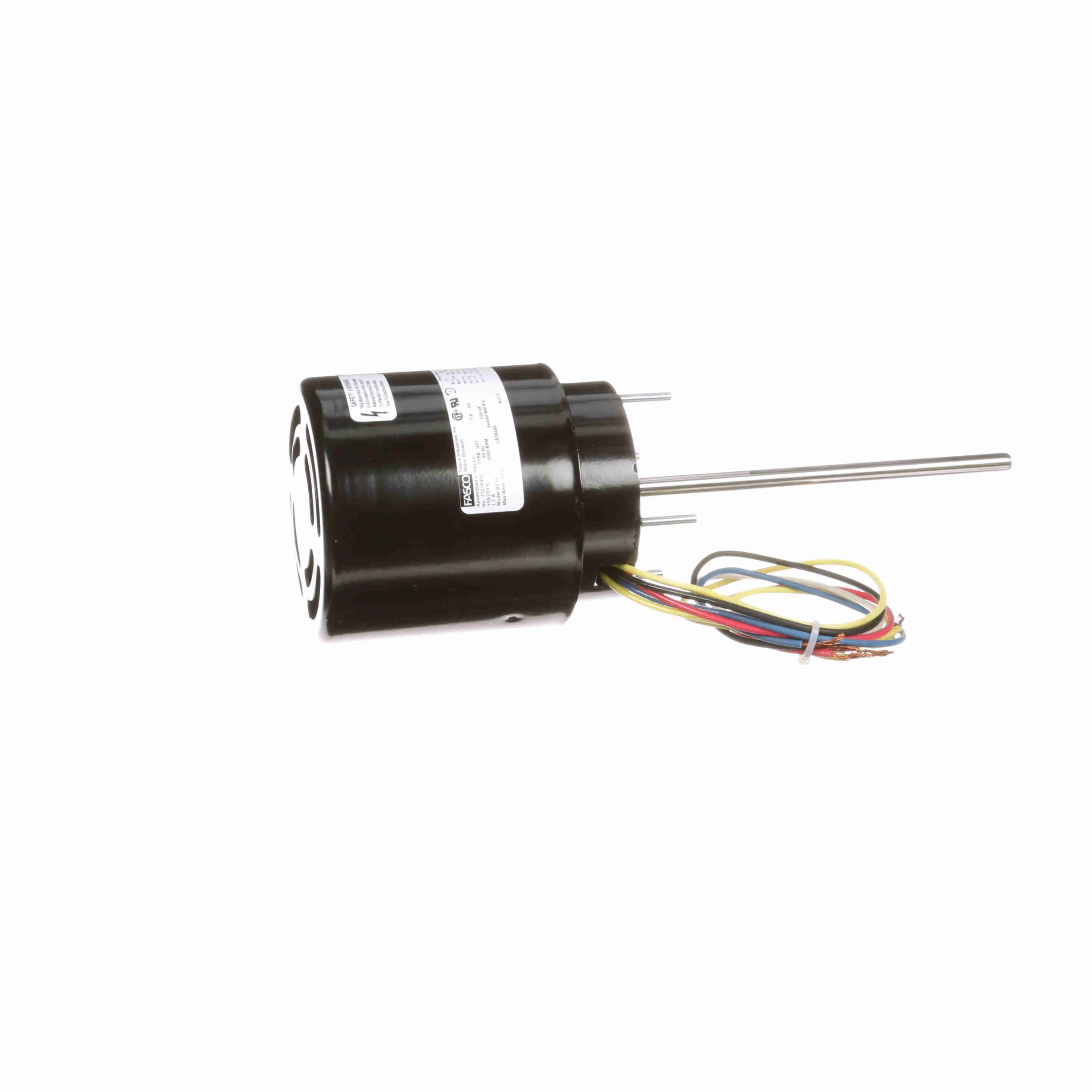

FASCO D215 Fan and Blower Motor, 1/20 HP, 1 Phase, 60 Hz, 115/230 V, 3000 RPM, 3.3 Inch Diameter
Item: AC7LTAModel: D215Cross Ref: 38N522
7 In Stock
Ships within 2 days via
10.00% off
€345.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Blower/Fan Motor |
| Ambient Temp. | 40°C |
| Amps | 1.7A |
| Application | HVAC/R |
| Bearing Type | Ball |
| Body Dia. | 3 5/16" |
| Capacitor Required | No |
| Drive End Bearing | Ball |
| Duty | Air Over |
| Duty Cycle | Continuous |
| Efficiency | 35% |
| Electrical Type | Shaded Pole |
| Frame | 3.3 |
| Frame Length | 3.43" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.1A |
| Hp | 1/20 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Lead Length | 12" |
| Length | 11.23" |
| Length Less Shaft | 4 3/4" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Ball |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Tefc |
| Motor Frame Material | Steel |
| Motor Mounting Type | Ring, Stud |
| Motor Mounting Type | Extended Studs |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Shaft Rotation | CCWSE |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting | Stud |
| Mounting Pattern | 2-7/8 x 2-7/8 |
| Mounting Stud Location | 4/Shaft End |
| Mounting Stud Pattern | 2 7/8" x 2 7/8" |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 3000 RPM |
| No. Of Poles | 2 |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| No. Of Studs | 4 |
| Opp Drive End Bearing | Ball |
| Output Hp | 1/20 hp |
| Output Kw | 0.04 kW |
| Overall Length | 11 1/4" |
| Phase | 1 |
| Rpm | 3000 RPM |
| Service Factor | 1 |
| Shaft Dia. | 0.312" |
| Shaft Extension Size | 6.5" |
| Shaft Length | 6 1/2" |
| Shaft Type | Flat |
| Starting Method | Across The Line |
| Stud Location | Shaft End |
| Stud Pattern | 2 7/8" x 2 7/8" |
| Stud/base Mtg. Pattern | 2-7/8 x 2-7/8" |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115/230V |
| Weight | 5 lbs. |
Shipping Info:
| Ship weight (kg) | 2.34 |
| Ship height (cm) | 32.08 |
| Ship length (cm) | 10.49 |
| Ship width (cm) | 10.49 |
| HS code | 8501106020 |
| Country of Origin | MX |
