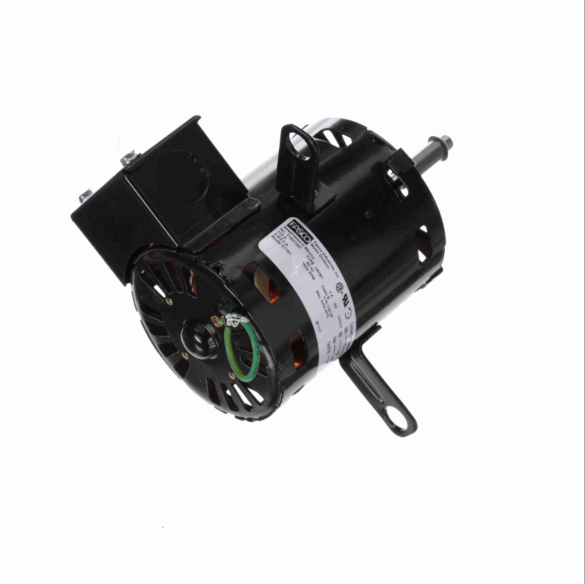

FASCO D1161 Hvac 3.3 Inch Motor 1/15-1/20 Hp 115v Ccw
Item: AC7LUMModel: D1161Cross Ref: 38N556
7 In Stock
Ships within 2 days via
10.00% off
€262.68 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | HVAC Motor |
| Ambient Temp. | 40°C |
| Amps | 2.9/2.2A |
| Application | HVAC/R |
| Bearing Type | Sleeve |
| Body Dia. | 3 5/16" |
| Bolt Circle Dia. | 1/2" |
| Capacitor Required | No |
| Conduit Box Location | Exterior |
| Conduit Box Position | F3 |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Duty Cycle | Continuous |
| Electrical Type | Shaded Pole |
| Frame | 3.3 |
| Frame Length | 4.02" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 2.9/2.2A |
| Hp | 1/15 hp, 1/25 hp |
| Hz | 60 Hz |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Length | 6.55" |
| Length Less Shaft | 4 3/4" |
| Max. Ambient Temp. | 40°C |
| Motor Application | HVAC/R |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | OAO |
| Motor Frame Material | Steel |
| Motor Mounting Type | Lug |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CCWSE |
| Motor Shaft Rotation | Counter Clockwise Shaft End |
| Motor Sub Application | Oem Replacement |
| Motor Thermal Protection | Auto |
| Motor Type | Shaded Pole |
| Mounting | Bracket |
| Mounting Type | Lug |
| Nameplate Rpm | 1600 RPM |
| No. Of Poles | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 2 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/15 hp to 1/25 hp |
| Output Kw | 0.05 kW |
| Overall Length | 6 9/16" |
| Phase | 1 |
| Rpm | 1600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 0.313" |
| Shaft Extension Size | 2" |
| Shaft Length | 2" |
| Shaft Type | Flat |
| Starting Method | Across The Line |
| Stud Location | None |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V |
Shipping Info:
| Ship weight (kg) | 2.07 |
| Ship height (cm) | 21.59 |
| Ship length (cm) | 17.3 |
| Ship width (cm) | 17.3 |
| HS code | 8501402040 |
| Country of Origin | MX |
Product Variants
| Product | Model | Motor Enclosure Design | Voltage | Hp | Full Load Amps | Mounting Type | Motor Type | Nameplate Rpm | Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D129 | OAO | 115V | 1/125 hp, 1/200 hp | 0.5/0.3A | Extended Studs | Shaded Pole | 1500 RPM | Impedance | €291.84 | |
 |
D1162 | OAO | 115V | 1/100 hp, 1/250 hp | 0.6/0.4A | Round Belly Band | Shaded Pole | 1540/1390 RPM | Automatic | €316.12 | |
 |
D1119 | OAO | 240V | 1/90 hp | 0.4A | Extended Studs | Shaded Pole | 1300 RPM | Automatic | €170.49 | |
|
D1134 | OAO | 120V | 1/50 hp, 1/65 hp, 1/30 hp | 1.1/0.8/0.6A | Extended Studs | Shaded Pole | 1300 RPM | Automatic | €209.23 | |
 |
D1139 | TEAO | 115V | 1/50 hp | 0.9A | Extended Studs | Shaded Pole | 1550 RPM | Automatic | €232.36 | |
 |
D128 | OAO | 115V | 1/40 hp, 1/50 hp, 1/80 hp | 1.3/0.9/0.7A | Extended Studs | Shaded Pole | 1500 RPM | Automatic | €225.55 | |
 |
D136 | OAO | 115V | 1/30 hp | 1.3A | Extended Studs | Shaded Pole | 1500 RPM | Automatic | €290.95 |
