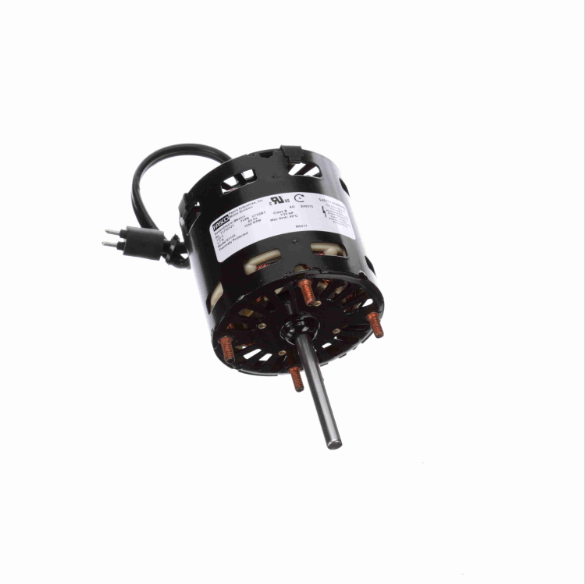

FASCO D1133 Condenser Fan Motor, 1/20 HP, 1550 RPM, 115V AC, 3.3 Inch Frame
Item: CJ2XZLModel: D1133Cross Ref: 46MV79
7 In Stock
Ships within 2 days via
10.00% off
€169.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | OEM Replacement Motor |
| Ambient Temp. | 40°C |
| Amps | 1.7A |
| Bearing Type | Sleeve |
| Body Dia. | 3 2/5" |
| Bolt Circle Dia. | 4 5/8" |
| Capacitor Required | No |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Electrical Type | Shaded Pole |
| Frame | 3.3 |
| Frame Length | 2.82" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.7A |
| Hp | 1/20 hp |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Length | 5.94" |
| Length Less Shaft | 3 11/16" |
| Manufacturers Warranty Length | 1 yr. |
| Max. Ambient Temp. | 104°F |
| Motor Application | Fan |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | OAO |
| Motor Frame Material | Steel |
| Motor Mounting Type | Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Shaft Rotation | CWSE |
| Motor Sub Application | Condenser Fan Motor |
| Motor Thermal Protection | Automatic |
| Motor Type | Shaded Pole |
| Mounting Stud Length | 1/8" |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1550 RPM |
| No. Of Poles | 4 |
| No. Of Shafts | 1 |
| No. Of Speeds | 1 |
| Number Of Shafts | 1 |
| Number Of Speeds | 1 |
| Oem Replacement Brand | Heatcraft |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/20 hp |
| Output Kw | 0.04 kW |
| Overall Length | 5 15/16" |
| Phase | 1 |
| Replacement For | Fasco Mfr. No. 71639384, Heatcraft Mfr. No. 25300101 |
| Rpm | 1550 RPM |
| Service Factor | 1 |
| Shaft Dia. | 0.313" |
| Shaft Extension Size | 2.6" |
| Shaft Length | 2 5/8" |
| Shaft Type | Flat |
| Starting Method | Across The Line |
| Stud Size | #10-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V |
| Weight | 4 lbs. |
Shipping Info:
| Ship weight (kg) | 1.76 |
| Ship height (cm) | 8.59 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 8.59 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Hp | Motor Enclosure Design | Frame | Motor Design | Motor Application | Motor Mounting Type | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

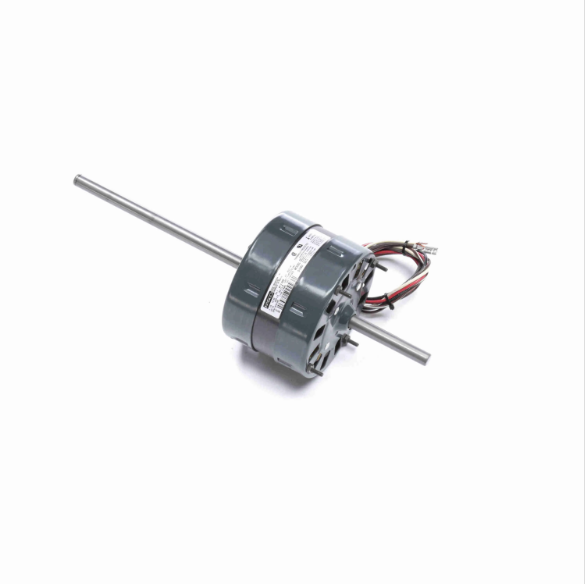

D1092 | 115V AC | 1/3 hp | Open Air Over | 42 | Permanent Split Capacitor | OEM Replacement | Stud | Automatic | €278.43 | |
 |

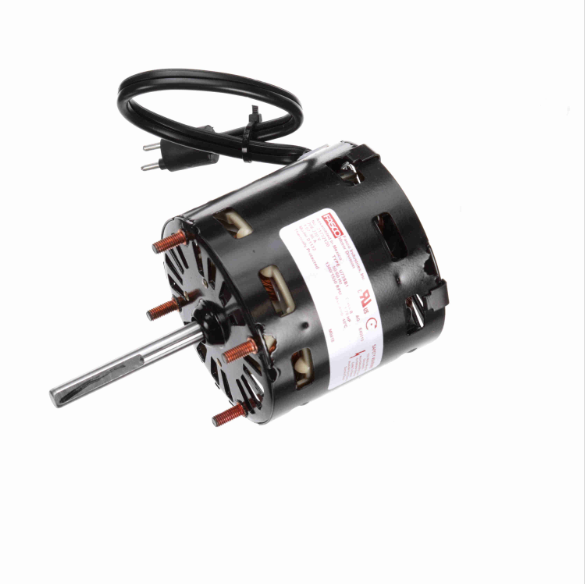

D1132 | 208-230V AC | 1/20 hp | Open Air Over | 3.3" | Shaded Pole | Fan | Stud | Automatic | €188.54 | |
 |

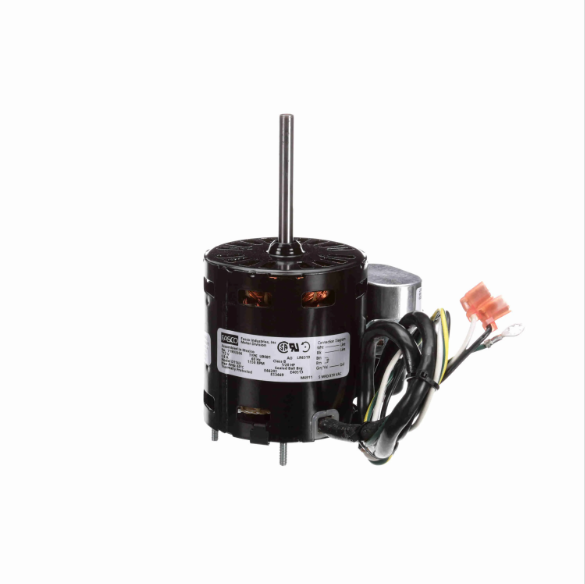

D1143 | 115V | 1/20 hp | OAO | 3.3 | Permanent Split Capacitor | OEM Replacement | Stud | Automatic | €239.67 | |
 |

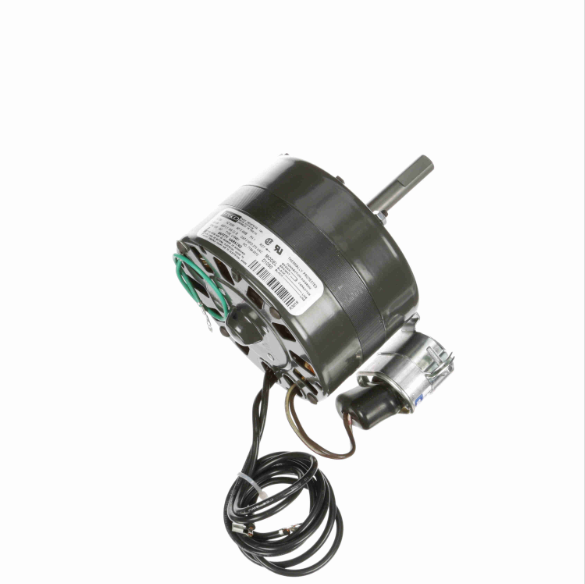

D1050 | 230V AC | 1/8 hp | Open Air Over | 42 | Permanent Split Capacitor | OEM Replacement | Band | Auto | - | RFQ
|
