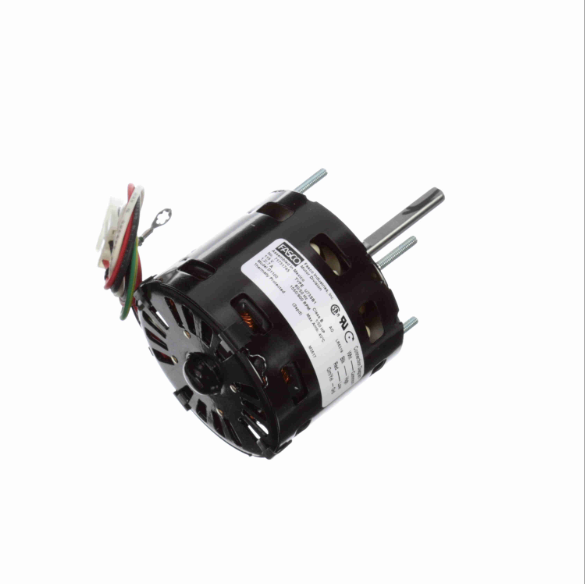

FASCO D1100 Condenser Fan Motor, 1/50 HP, 1550/900 RPM, 115V AC
Item: CH9XEFModel: D1100Cross Ref: 48GN36
7 In Stock
Ships within 2 days via
10.00% off
€195.09 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Condenser Fan Motor |
| Ambient Temp. | 40°C |
| Amps | 1.2/0.7A |
| Bearing Type | Sleeve |
| Body Dia. | 3.4" |
| Bolt Circle Dia. | 2 13/16" |
| Capacitor Required | No |
| Dia. | 3 2/5" |
| Diameter | 3 2/5" |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Electrical Type | Shaded Pole |
| Enclosure Type | Open Air Over |
| Frame | 3.3 |
| Frame Length | 2.57" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Amps | 1.2/0.7A |
| Hp | 1/50 hp |
| Ins. Class | Class B |
| Insulation Class | Class B |
| Length | 5.51" |
| Length Less Shaft | 3 1/16" |
| Max. Ambient Temp. | 104°F |
| Motor Application | OEM Replacement |
| Motor Bearings | Sleeve |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | OAO |
| Motor Frame Material | Steel |
| Motor Mounting Type | Stud |
| Motor Service Factor | 1 |
| Motor Shaft Design | Flat |
| Motor Shaft Rotation | CWSE |
| Motor Shaft Rotation | Clockwise Shaft End |
| Motor Sub Application | Condenser Fan |
| Motor Thermal Protection | Automatic |
| Motor Type | Shaded Pole |
| Mounting Stud Length | 7/8" |
| Mounting Stud Pattern | 2" x 2" |
| Mounting Stud Size | #8-32 |
| Mounting Type | Extended Studs |
| Nameplate Rpm | 1550/900 RPM |
| No. Of Poles | 4, 6 |
| No. Of Shafts | 1 |
| No. Of Speeds | 2 |
| Number Of Shafts | 1 |
| Number Of Speeds | 2 |
| Oem Replacement Brand | Loren Cook |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/50 hp |
| Output Kw | 0.01 kW |
| Overall Length | 5 1/2" |
| Phase | 1 |
| Replacement For | 7173-1580 |
| Rpm | 1550/900 RPM |
| Service Factor | 1 |
| Shaft Dia. | 0.313" |
| Shaft Extension Size | 2.45" |
| Shaft Length | 2 3/8" |
| Shaft Type | Flat |
| Starting Method | Across The Line |
| Stud Length | 7/8" |
| Stud Pattern | 2" x 2" |
| Stud Size | #8-32 |
| Thermal Protection | Automatic |
| Usable @ 200v | No |
| Usable @ 208v | No |
| Voltage | 115V |
Shipping Info:
| Ship weight (kg) | 1.44 |
| Ship height (cm) | 8.59 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 8.59 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Motor Enclosure Design | Motor Design | No. Of Speeds | Frame | Phase | Hp | Motor Thermal Protection | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
D0636 | 115V | OAO | Shaded Pole | 1 | 3.3 | 1 | 1/88 hp | Automatic | €125.54 | |
 |
D1006 | 115V | OAO | Shaded Pole | 1 | 4.4 | 1 | 1/4 hp | Automatic | €591.53 | |
 |
D1039 | 115V | OAO | Shaded Pole | 1 | 4.4 | 1 | 1/10 hp | Automatic | €473.19 | |
 |
D1041 | 265V | OAO | Permanent Split Capacitor | 3 | 42 | 1 | 1/15 hp | Automatic | €350.82 | |
 |
D1044 | 115V | OAO | Permanent Split Capacitor | 3 | 42 | 1 | 1/4 hp | Automatic | €382.29 | |
 |
D1053 | 265V | OAO | Permanent Split Capacitor | 3 | 42 | 1 | 1/30 hp | Automatic | €324.04 | |
 |
D1061 | 115V | OAO | Shaded Pole | 3 | 4.4 | 1 | 1/20 hp | Auto | €483.70 |
