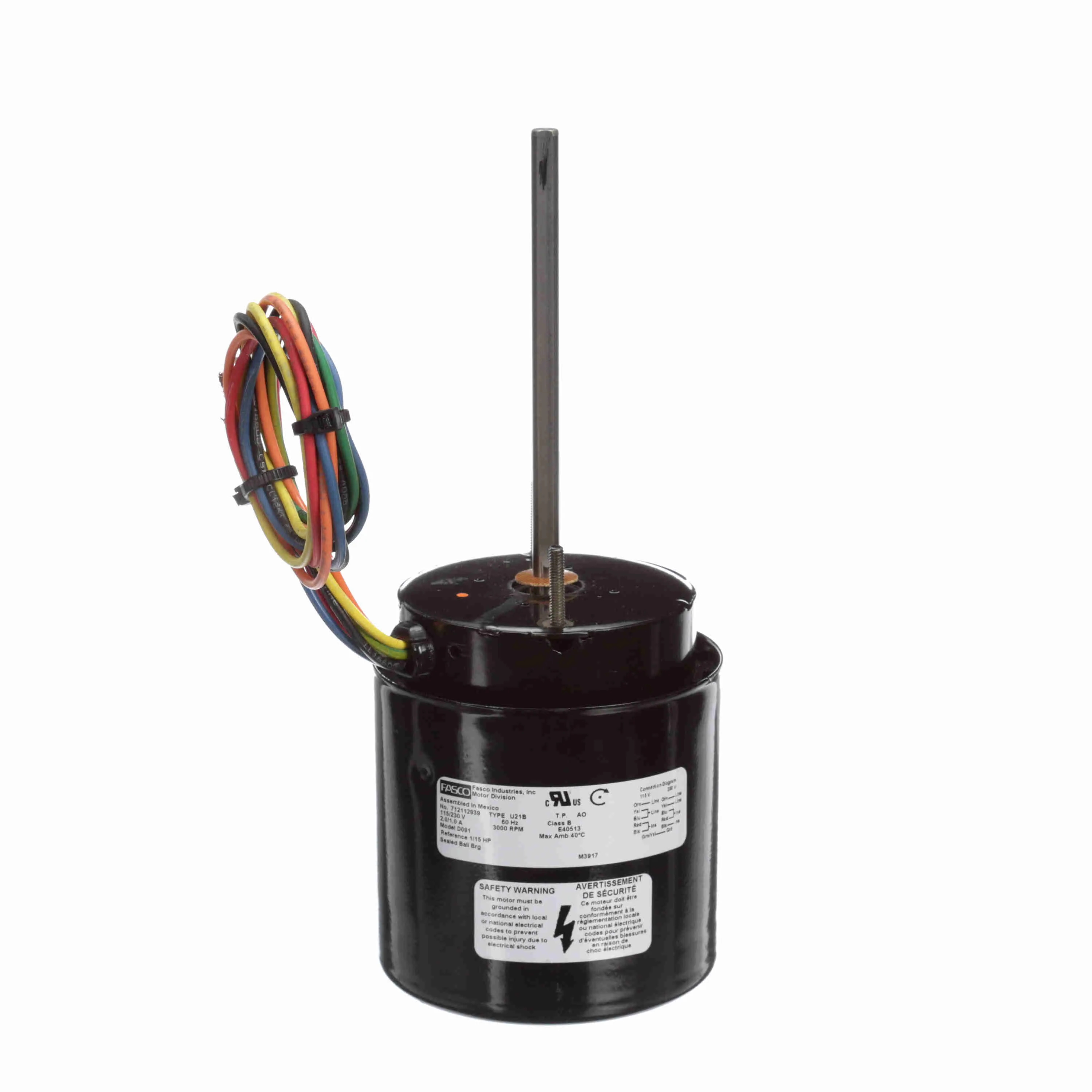

FASCO D091 Ventilation Motor, 1/15 HP, 1 Phase, 60 Hz, 115/230 V, 1 Speed, 3.3 Inch Diameter
Item: CP4XMUModel: D091Cross Ref: 241W69
7 In Stock
Ships within 2 days via
10.00% off
€387.17 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ventilation Motor |
| Ambient Temp. | 40°C |
| Ambient Temperature | 40°C |
| Amps | 2/1A |
| Ce | N |
| Csa | N |
| Current | 2/1A |
| Drive End Bearing | Ball |
| Duty | Air Over |
| Electrical Type | Shaded Pole |
| Enclosure | Totally Enclosed Fan Cooled |
| Frame | 3.3 |
| Frame Length | 4.5" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Insulation Class | Class B |
| Length | 9.55" |
| Motor Application | Vents |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Tefc |
| Motor Service Factor | 1 |
| Motor Shaft Rotation | CWSE |
| Motor Sub Application | Ventilation Motor |
| Motor Thermal Protection | Automatic |
| Mounting | Extended Studs |
| Mounting Type | Extended Studs |
| No. Of Poles | 2 |
| No. Of Speeds | 1 |
| Number Of Shafts | 1 |
| Number Of Speeds | 1 |
| Opp Drive End Bearing | Ball |
| Output Hp | 1/15 hp |
| Output Kw | 0.05 kW |
| Overall Length | 9.55" |
| Phase | 1 |
| Poles | 2 |
| Rotation | Clockwise Shaft End |
| Rpm | 3000 RPM |
| Service Factor | 1 |
| Shaft Dia. | 0.312" |
| Shaft Diameter | 0.312" |
| Shaft Extension | 5" |
| Shaft Extension Size | 5" |
| Shaft Type | Flat |
| Speed | 3000 RPM |
| Starting Method | Across The Line |
| Ul | Recognized |
| Voltage | 115/230V |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 32.08 |
| Ship length (cm) | 10.49 |
| Ship width (cm) | 10.49 |
| Country of Origin | MX |
