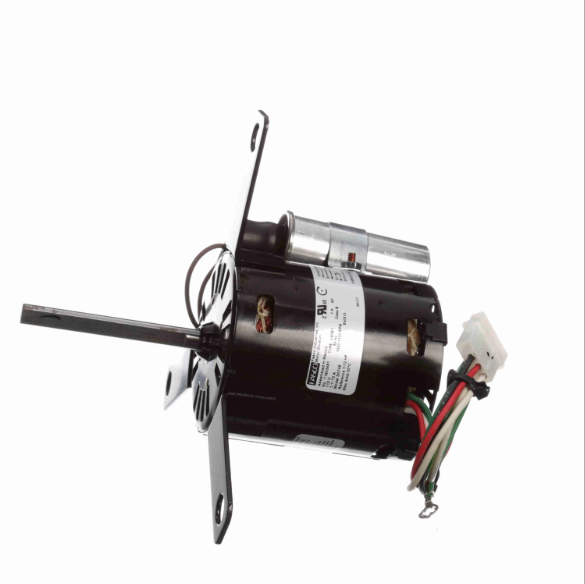

FASCO D0746 Motor, 1/12 HP, 115V, 1.1/0.73A, 1550/1300 RPM, 3.3 Diameter
Item: CJ2WDBModel: D0746Cross Ref: 161L77
7 In Stock
Ships within 2 days via
10.00% off
€397.26 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Motor |
| Ambient Temp. | 50°C |
| Amps | 1.1/0.73A |
| Body Diameter | 3.3" |
| Capacitor Required | Yes |
| Drive End Bearing | Sleeve |
| Duty | Air Over |
| Electrical Type | Permanent Split Capacitor |
| Fits Brand | Fasco |
| Frame | 3.3 |
| Frame Length | 3.93" |
| Frame Material | Steel |
| Frequency | 60 Hz |
| Full Load Current | 0.73/1.1A |
| Hp | 1/12 hp |
| Includes Capacitor | Yes |
| Insulation Class | Class B |
| Length | 7.38" |
| Length Less Shaft | 3 15/16" |
| Motor Bearings | Sleeve |
| Motor Design | 1 Phase |
| Motor Enclosure Design | OAO |
| Motor Mounting Type | Lug |
| Motor Shaft Rotation | CWSE |
| Mounting Type | Lug |
| Nameplate Rpm | 1550/1300 RPM |
| No. Of Poles | 4 |
| No. Of Speeds | 2 |
| Number Of Speeds | 2 |
| Opp Drive End Bearing | Sleeve |
| Output Hp | 1/12 hp |
| Output Kw | 0.06 kW |
| Overall Length | 7 3/8" |
| Permanent Split Capacitor Required | 10 µf, 370V |
| Phase | 1 |
| Product Type | Motor |
| Rpm | 1550/1300 RPM |
| Rpm Range | 1501-1600 RPM |
| Service Factor | 1 |
| Shaft Dia. | 0.375" |
| Shaft Diameter | 5/8" |
| Shaft Extension Size | 3.45" |
| Shaft Length | 3 7/16" |
| Shaft Type | Flat |
| Standards | Ul Recognized |
| Starting Method | Across The Line |
| Type | 2-Speed CW Rotation |
| Voltage | 115V |
Shipping Info:
| Ship weight (kg) | 2.39 |
| Ship height (cm) | 21.29 |
| Ship length (cm) | 20.65 |
| Ship width (cm) | 20.65 |
| Country of Origin | MX |
