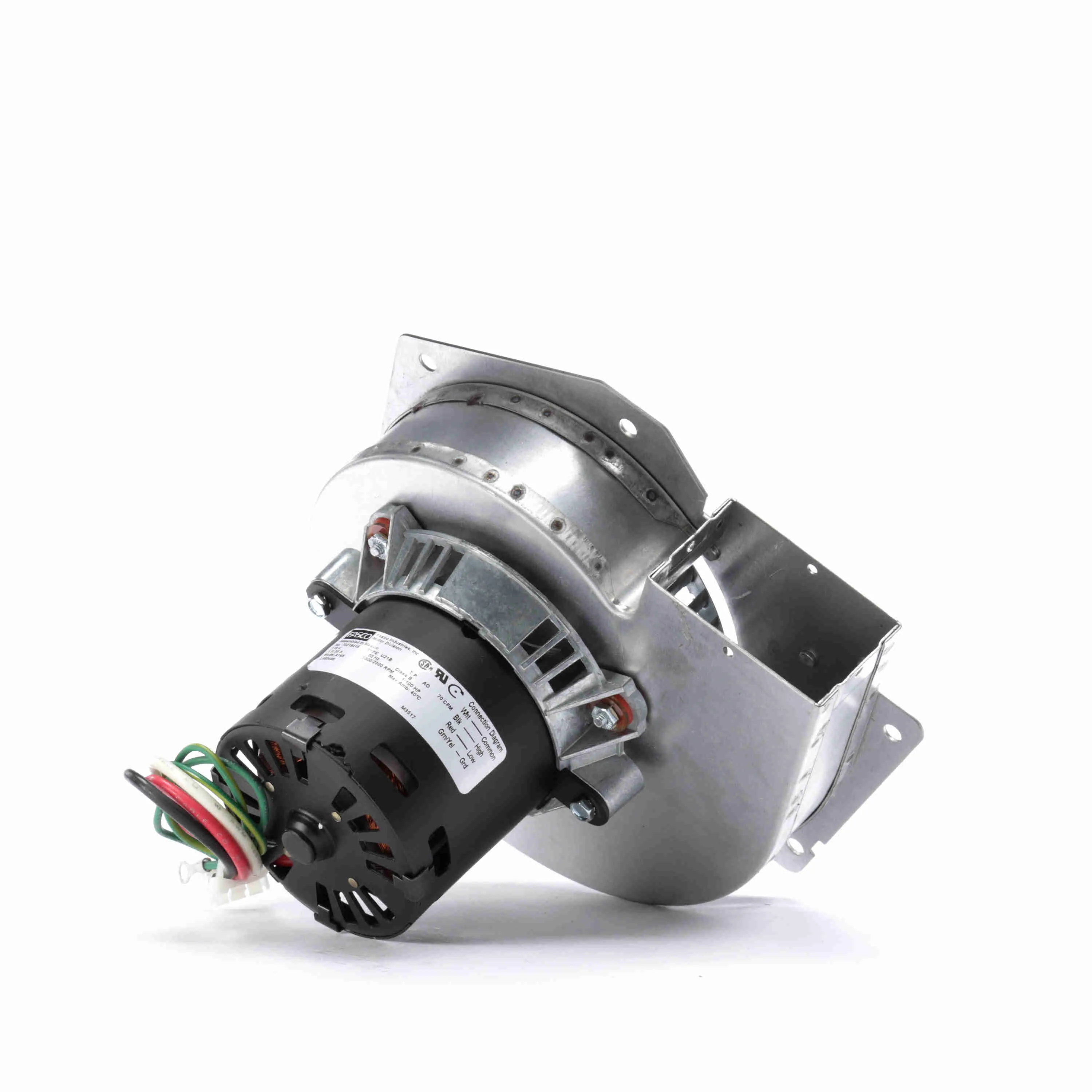

FASCO A146 Rectangular Outlet Shaded Pole OEM Replacement Draft Inducer Blower, 115 Volt
Item: AD4FJNModel: A146Cross Ref: 41H448
7 In Stock
Ships within 2 days via
10.00% off
€532.59 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Draft Inducer Blower |
| Ambient Temp. | 40°C |
| Amps | 1/0.35A |
| Application | Furnaces |
| Bearing Type | Sleeve |
| Blower Outlet Flange | No |
| Blower Outlet Shape | Rectangle |
| Construction Material | Aluminum Steel |
| Current | 1/0.35A |
| Depth | 6" |
| Electrical Connection | Wire Leads |
| Fits Brand | Trane |
| For Appliance Type | Gas Furnaces |
| For Fuel Type | Natural Gas |
| For Use With | Furnace |
| For Use With Mfr. Model Number | 21D340096P04 |
| Frequency | 60 Hz |
| Height | 7 1/2" |
| Housing Material | Aluminum Steel |
| Hp | 1/100 hp |
| Includes Motor | Yes |
| Inlet Dia. | 4 7/8" |
| Insulation Class | Class B |
| Material | Aluminum, Steel |
| Max. Motor Hp | 1/100 hp |
| Max. Static Pressure | Not Applicable |
| Maximum Fan Speed | 3400 RPM |
| Maximum Inlet Air Temperature | 40°C |
| Maximum Motor Speed | 3000 RPM |
| Motor Enclosure Design | Open |
| Motor Type | Shaded Pole |
| Nameplate Voltage | 115V AC |
| No. Of Speeds | 2 |
| Oem Replacement | Yes |
| Outlet Dia. | Not Applicable |
| Outlet Height | 2 5/8" |
| Outlet Shape | Rectangular |
| Outlet Width | 1 5/8" |
| Overall Depth | 6" |
| Overall Height | 7 1/2" |
| Overall Width | 8 5/8" |
| Phase | 1 |
| Power Consumption | 73 W |
| Product Datasheet | fasco-a146.pdf |
| Remarks | Product Used As Direct Oem Replacement Only. Any Other Use Constitutes A Misapplication Which Voids The Warranty And May Create Unsafe Conditions |
| Replacement For Manufacturer Model No. | 21D340096P04, 70217986, 70218925, X38040276047 |
| Rpm | 3000/2300 RPM |
| Type | Replacement |
| Voltage | 115V |
| Wattage | 73 W |
| Wheel Dia. | 4 5/8" |
| Wheel Material | Steel |
| Wheel Type | Forward Curved |
| Width | 8 5/8" |
Shipping Info:
| Ship weight (kg) | 2.52 |
| Ship height (cm) | 17.93 |
| Ship length (cm) | 28.91 |
| Ship width (cm) | 20.96 |
| HS code | 8414596060 |
| Country of Origin | MX |
Product Details:
- Supercedes Trane 21D340096P04
Documentation:
Product Variants
| Product | Model | Outlet Shape | Voltage | Overall Height | Overall Width | Overall Depth | Housing Material | Outlet Height | Outlet Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A086 | Round | 115V | 7 7/8" | 9" | 6 3/8" | Plastic | Not Applicable | Not Applicable | €453.22 | |
 |
A142B | Round | 115V | 7 3/4" | 9 1/8" | 6 3/8" | - | - | - | €688.92 | |
 |
A157 | Rectangular | 115V | 8 7/8" | 9" | 5 3/4" | Aluminum Steel | 2 5/8" | 1 3/4" | €336.90 | |
 |
A064 | Rectangular | 115V | 7 1/2" | 8 5/8" | 5 7/8" | Steel | 2 5/8" | 1 5/8" | €315.94 | |
 |
A079 | Rectangular | 115V | - | - | - | Steel | 2 5/8" | 1 5/8" | €339.34 | |
 |
A088 | Round | 115V | 7 7/8" | 9" | 6 1/2" | Plastic | Not Applicable | Not Applicable | €507.05 | |
 |
A090 | Rectangular | 115V | 7 1/2" | 8 5/8" | 5 7/8" | Steel | 2 5/8" | 1 5/8" | €402.96 |
