FASCO A079 Rectangular Outlet Shaded Pole OEM Replacement Draft Inducer Blower, 115 Volt
Ships within 2 days via
Payment
Product Specifications:
| Item | Draft Inducer Blower |
| Airflow @ 0.000 In Sp | 90 CFM |
| Ambient Temp. | 40°C |
| Amps | 1.1A |
| Application | Furnaces |
| Bearing Type | Sleeve |
| Blower Outlet Flange | No |
| Blower Outlet Shape | Rectangle |
| Construction Material | Steel |
| Depth | 5 7/8" |
| Electrical Connection | Wire Leads |
| Fits Brand | Goodman, Trane |
| For Appliance Type | Gas Furnaces |
| For Fuel Type | Natural Gas |
| For Use With | Furnace |
| Frequency | 50/60 Hz |
| Height | 7 1/2" |
| Housing Material | Steel |
| Hp | 1/50 hp |
| Includes Motor | Yes |
| Inlet Dia. | 4 5/8" |
| Insulation Class | Class B |
| Material | Steel |
| Max. Motor Hp | 1/50 hp |
| Motor Enclosure Design | Open |
| Motor Type | Shaded Pole |
| No. Of Speeds | 1 |
| Oem Replacement | Yes |
| Outlet Dia. | Not Applicable |
| Outlet Height | 2 5/8" |
| Outlet Shape | Rectangular |
| Outlet Width | 1 5/8" |
| Phase | 1 |
| Power Consumption | 90 W |
| Remarks | Product Used As Direct Oem Replacement Only. Any Other Use Constitutes A Misapplication Which Voids The Warranty And May Create Unsafe Conditions |
| Rpm | 3000 RPM |
| Type | Replacement |
| Voltage | 115V |
| Wattage | 90 W |
| Wheel Dia. | 4 1/2" |
| Wheel Material | Steel |
| Width | 8 5/8" |
Shipping Info:
| Ship weight (kg) | 2.25 |
| Ship height (cm) | 20.32 |
| Ship length (cm) | 30.48 |
| Ship width (cm) | 26.37 |
| HS code | 8414596060 |
| Country of Origin | MX |
Product Details:
Fasco A079 induced draft furnace blower improves combustion efficiency by creating negative pressure within the furnace or boiler. It is widely used in manufacturing, power generation and heating applications. This blower maintains a clean and safe environment and also maximises heat transfer.
Features:
- Fasco A079 induced draft furnace blower has 24-inch leads with one stripped and one flagged terminals for seamless connections.
- It has a shaded pole design that reduces power consumption.
- This blower also has forward-curved steel wheels to improve airflow.
- It is heat-protected and comes with Class B insulation.
Frequently Asked Questions:
Q. How do I power this Fasco A079 induced draft blower?
A. Electric motors are necessary for this Fasco draft blower to operate.
Q. What is the difference between an induced draft blower and a forced draft blower?
A. An induced draft blower generates negative pressure in order to draw air or gases out of a system, whereas a forced draft blower generates positive pressure to push air or gases into a system.
Q. How do induced draft furnace blowers benefit people?
A. These blowers promote better indoor air quality by expelling combustion gases safely. They also enhance the overall energy efficiency of heating systems, making them more cost-effective to operate.
Q. How much airflow can this blower produce?
A. Fasco A079 blower can produce up to 79 CFM airflow.
Product Variants
| Product | Model | Outlet Shape | Voltage | Overall Height | Overall Width | Overall Depth | Housing Material | Outlet Height | Outlet Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

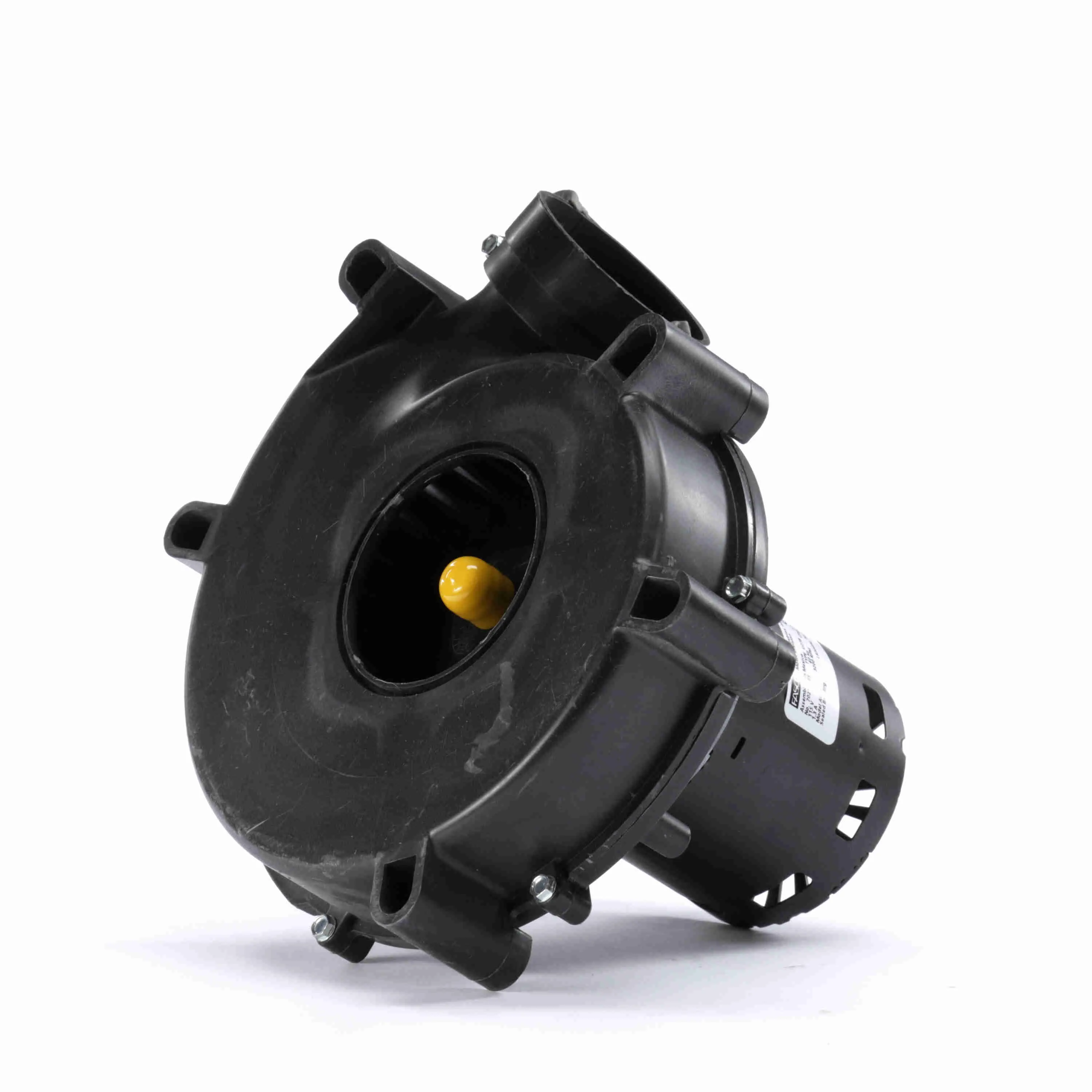

A086 | Round | 115V | 7 7/8" | 9" | 6 3/8" | Plastic | Not Applicable | Not Applicable | €453.22 | |
 |
A142B | Round | 115V | 7 3/4" | 9 1/8" | 6 3/8" | - | - | - | €688.92 | |
 |

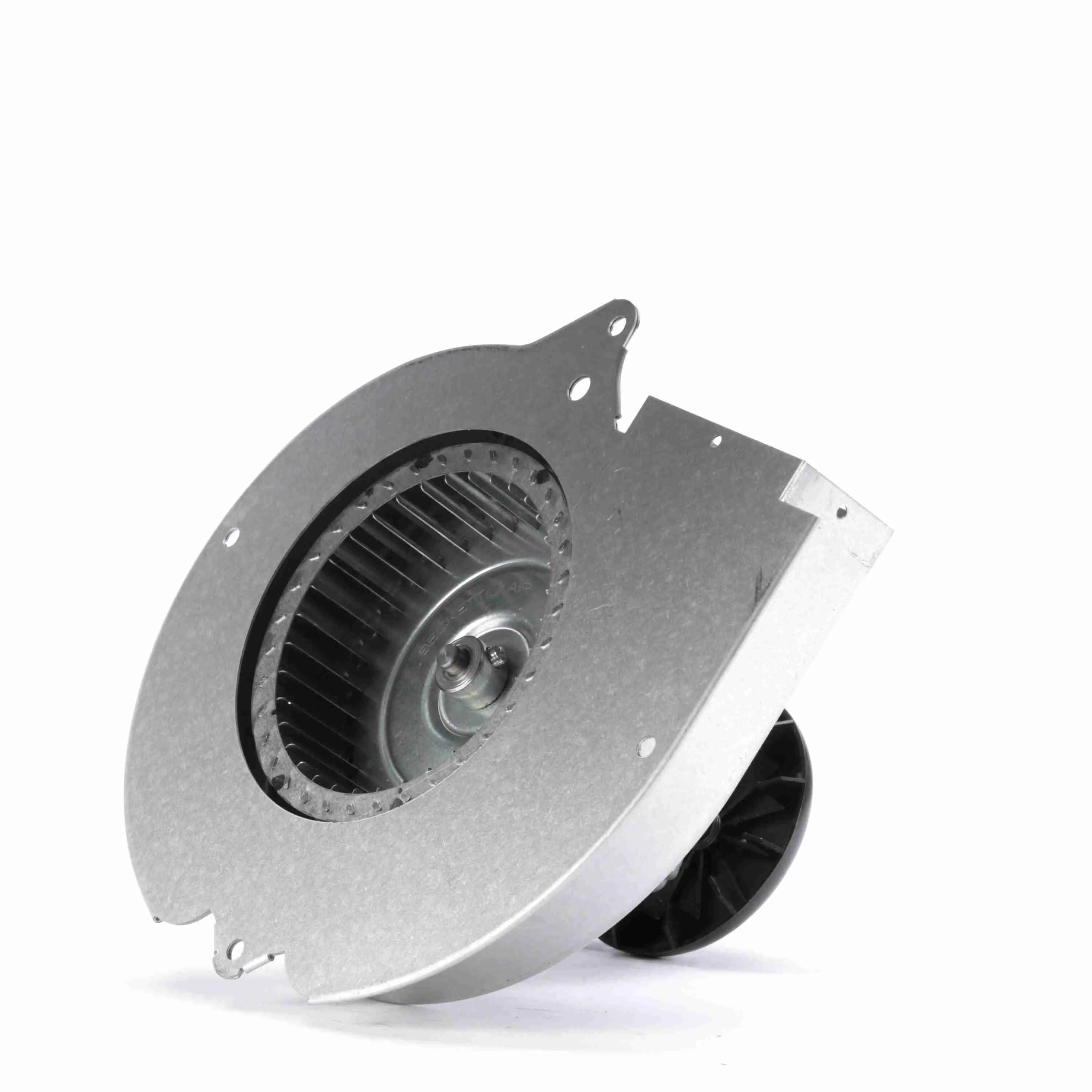

A157 | Rectangular | 115V | 8 7/8" | 9" | 5 3/4" | Aluminum Steel | 2 5/8" | 1 3/4" | €336.90 | |
 |

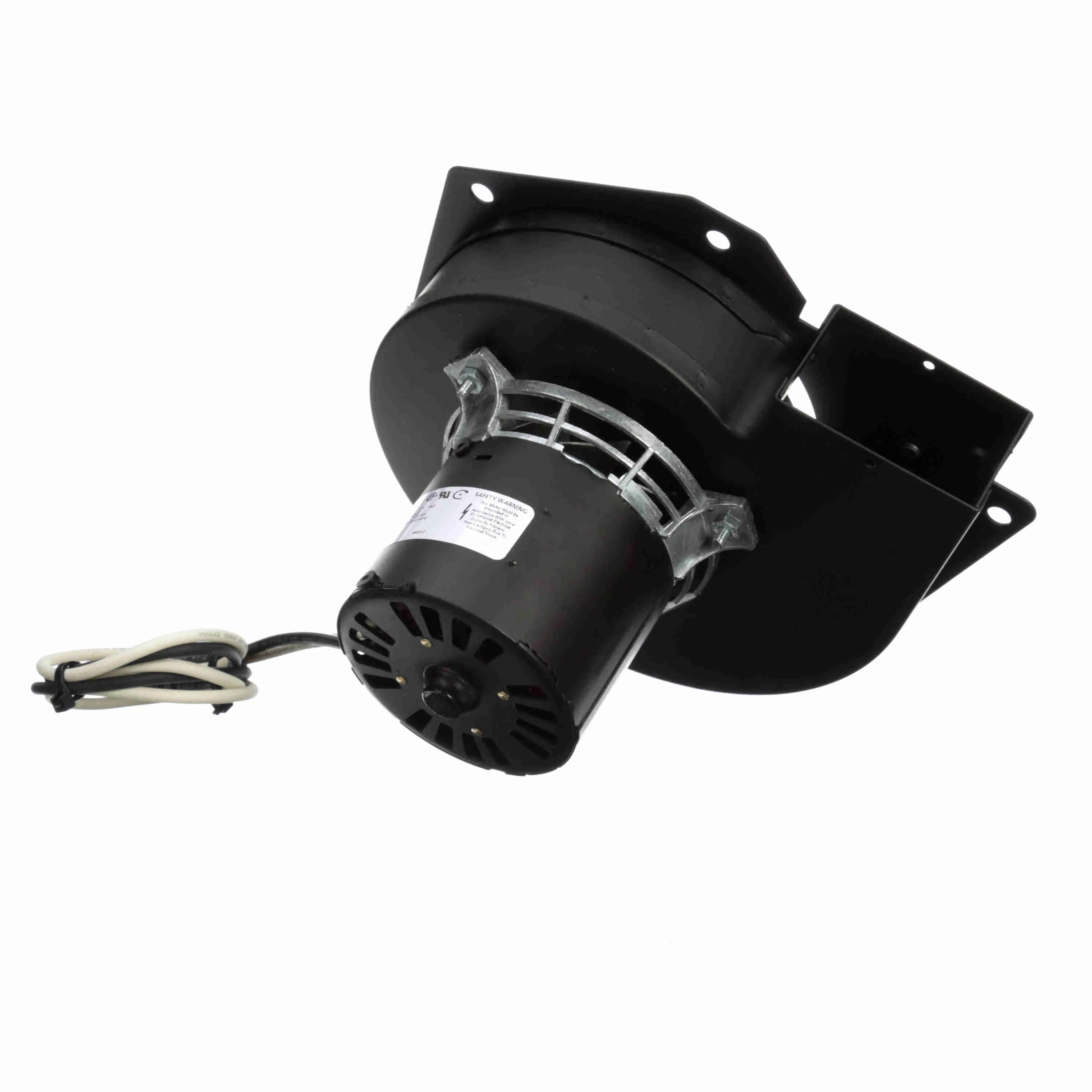

A064 | Rectangular | 115V | 7 1/2" | 8 5/8" | 5 7/8" | Steel | 2 5/8" | 1 5/8" | €315.94 | |
 |

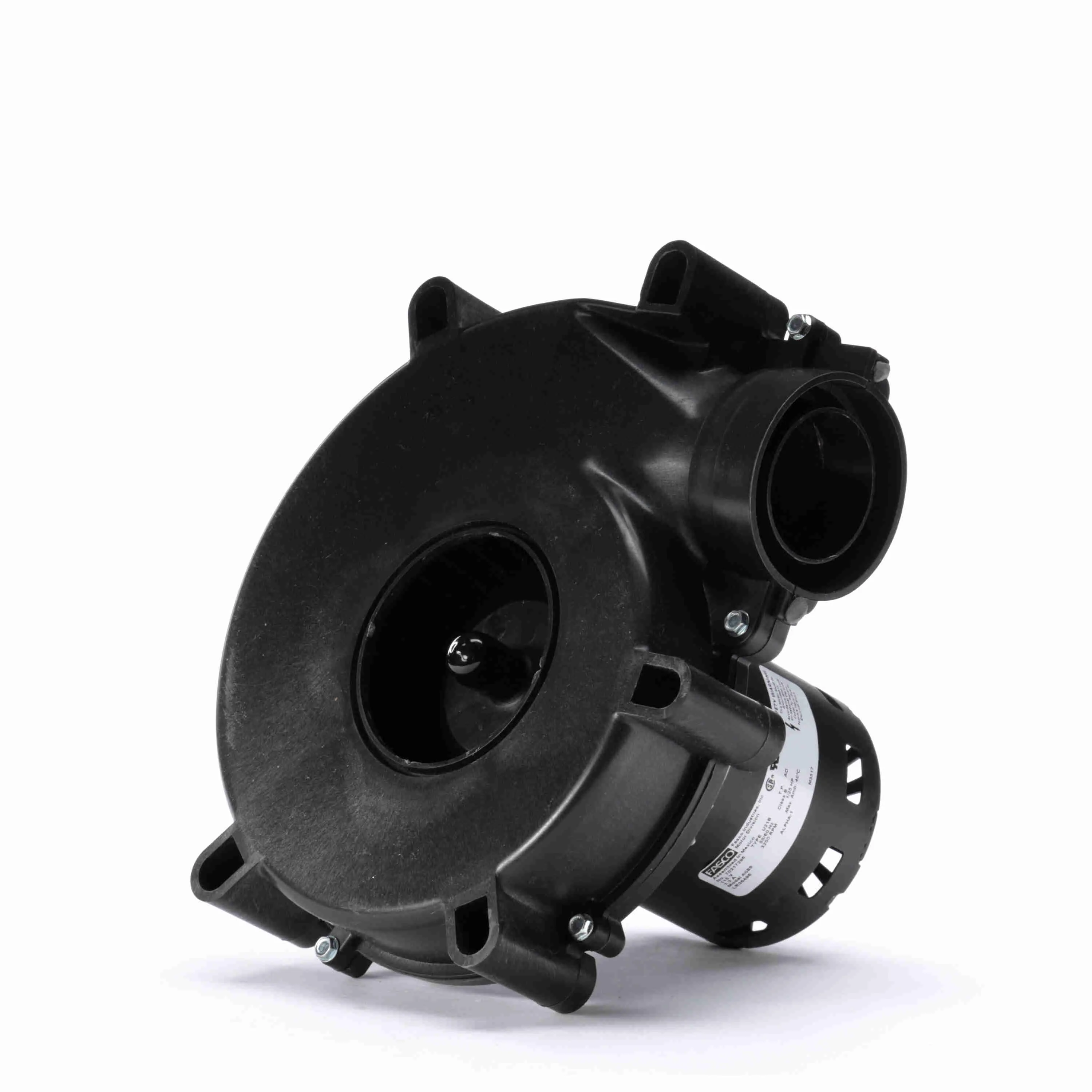

A088 | Round | 115V | 7 7/8" | 9" | 6 1/2" | Plastic | Not Applicable | Not Applicable | €507.05 | |
 |

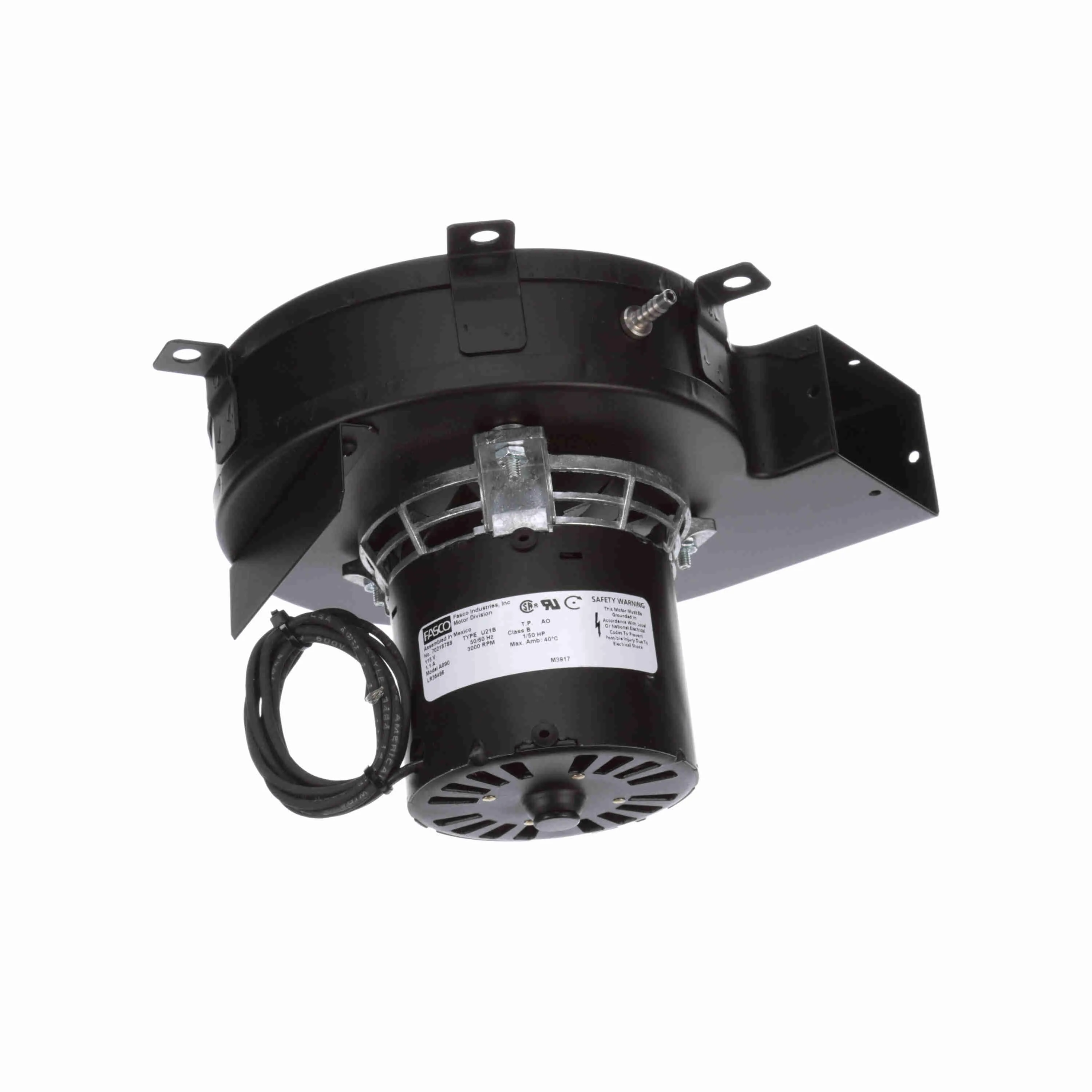

A090 | Rectangular | 115V | 7 1/2" | 8 5/8" | 5 7/8" | Steel | 2 5/8" | 1 5/8" | €402.96 | |
 |

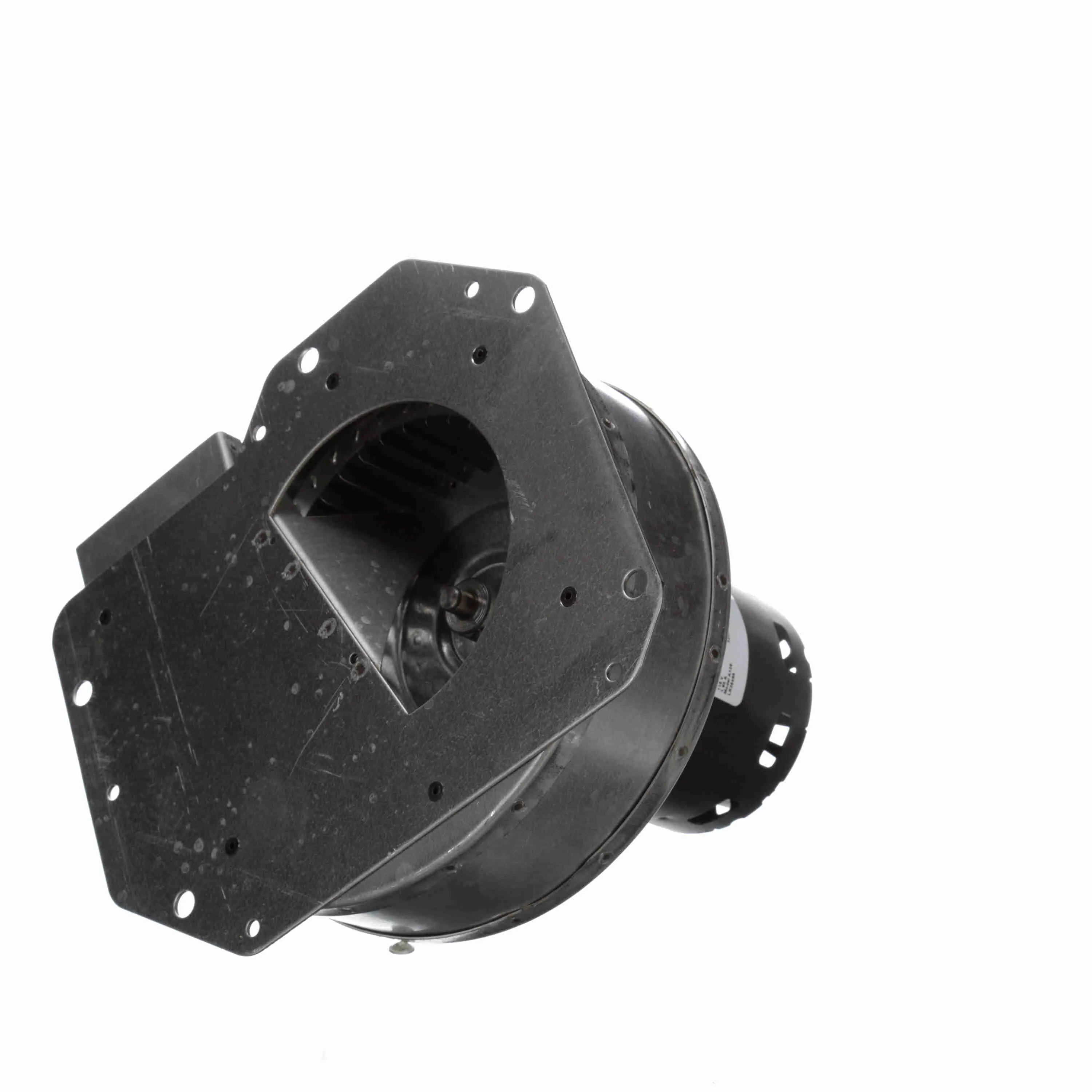

A129 | Rectangular | 115V | 7 1/2" | 8 3/8" | 7" | Aluminum Steel | 2 5/8" | 2 1/8" | €555.55 |
