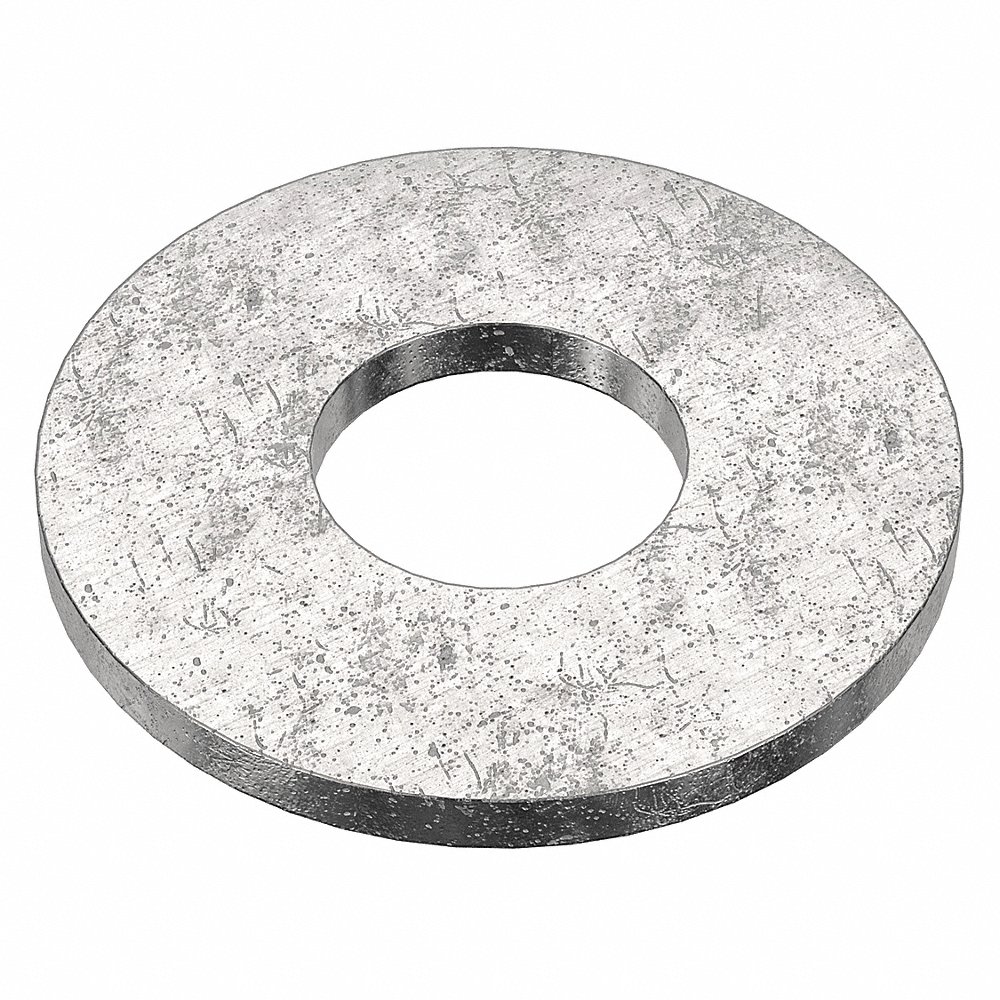

FABORY U51420.075.0001 Flat Washer, 3/4 In Fits Bolt Size, USS, 0.813 In I.D., 2 In O.D., Plain
Item: CG8TDDModel: U51420.075.0001Cross Ref: 29DR38
7 In Stock
Ships within 2 days via
5.00% off
€44.42 /pkg. of 20
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flat Washer |
| Dimensional Standards | Asme B18.21.1, Uss |
| Finish | Plain |
| Fits Bolt Size | 3/4" |
| Flat Washer Type | Uss |
| For Screw Size | 3/4" |
| Grade | Grade 18-8 |
| Inside Dia. | 0.813" |
| Inside Dia. Tolerance | -0.007" to +0.03" |
| Made In North America | No |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
| Max. Temp. | 302°F |
| Max. Thickness | 0.177" |
| Min. Temp. | -58°F |
| Min. Thickness | 0.122" |
| Outside Dia. | 2" |
| Outside Dia. Tolerance | -0.007" to +0.030" |
| Reach Compliant | Yes |
| Removable | Yes |
| Resistance Properties | Corrosion Resistant |
| Rohs Compliant | Yes |
| Standard | ASME B18.21.1 |
| System Of Measurement | Imperial |
| Tensile Strength | Not Applicable |
| Thickness | 0.156" |
| Thickness Tolerance | +0.029", -0.026" |
| Washer Material | Stainless Steel |
| Washer Type | USS Washer |
| Washer Type | Flat Washer |
Shipping Info:
| Ship weight (kg) | 0.92 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Varies |
Product Variants
| Product | Model | Fits Bolt Size | Thickness | Min. Thickness | Max. Thickness | For Screw Size | Thickness Tolerance | Inside Dia. Tolerance | Outside Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U51420.056.0001 | 9/16" | 0.109" | 0.086" | 0.132" | 9/16" | -0.023" to +0.023" | -0.005" to +0.015" | -0.007" to +0.030" | 25 | €17.29 | |
 |
U51420.100.0001 | 1" | 0.156" | 0.136" | 0.192" | 1" | +0.027", -0.029" | -0.007" to +0.03" | -0.007" to +0.030" | 5 | €17.19 | |
 |
U51420.112.0001 | 1 1/8" | 0.156" | 0.136" | 0.192" | 1 1/8" | +0.027", -0.029" | -0.007" to +0.03" | -0.007" to +0.030" | 5 | €15.63 | |
 |
U51420.150.0001 | 1 1/2" | 0.156" | 0.153" | 0.213" | 1 1/2" | +0.033", -0.027" | -0.01" to +0.045" | -0.01" to +0.045" | 5 | €31.19 | |
 |
U51420.025.0001 | 1/4" | 0.065" | 0.051" | 2/25" | 1/4" | +0.015", -0.014" | -0.005" to +0.015" | -0.007" to +0.015" | 50 | €4.76 | |
 |
U51420.031.0001 | 5/16" | 0.083" | 0.083" | 0.083" | 5/16" | - | - | - | 50 | €7.51 | |
 |
U51420.037.0001 | 3/8" | 0.083" | 0.064" | 0.104" | 3/8" | +0.021", -0.019" | -0.005" to +0.015" | -0.007" to +0.030" | 50 | €11.39 |
