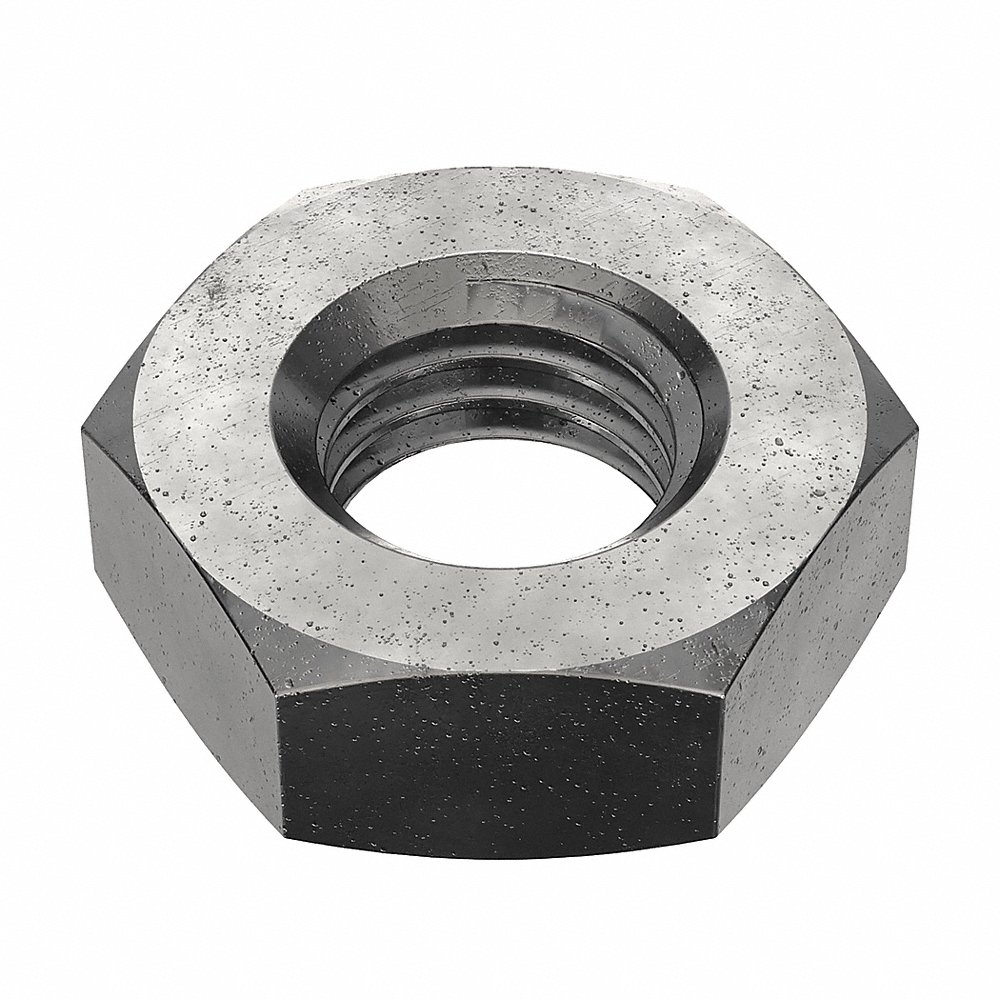

FABORY U11071.025.0001 Jam Nut, 1/4 In - 28 Thread Size, Steel, 0.15 In To 0.163 In Ht., 0.428 In To 0.438 In Wd., Pln
€12.17 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Jam Nut |
| Dimensional Standards | Asme B18.2.2 |
| Finish | Black Oxide |
| Grade | Grade 5 |
| Height | 0.15" to 0.163" |
| Hex Height | 5/32" |
| Hex Type | Jam Hex |
| Hex Width | 7/16" |
| Material | Steel |
| Material Grade/class | Grade 5 |
| Nut Type | Jam Hex |
| Nut Type | Jam Nut |
| Standard | ASME B18.2.2 |
| System Of Measurement | Imperial |
| Thread Direction | Right Hand |
| Thread Size | 1/4"-28 |
| Thread Type | Fine |
| Width | 0.428" to 0.438" |
| Wrench Size | 7/16 in |
| Wrench Size | 7/16" |
Shipping Info:
| Country of Origin | Varies |
