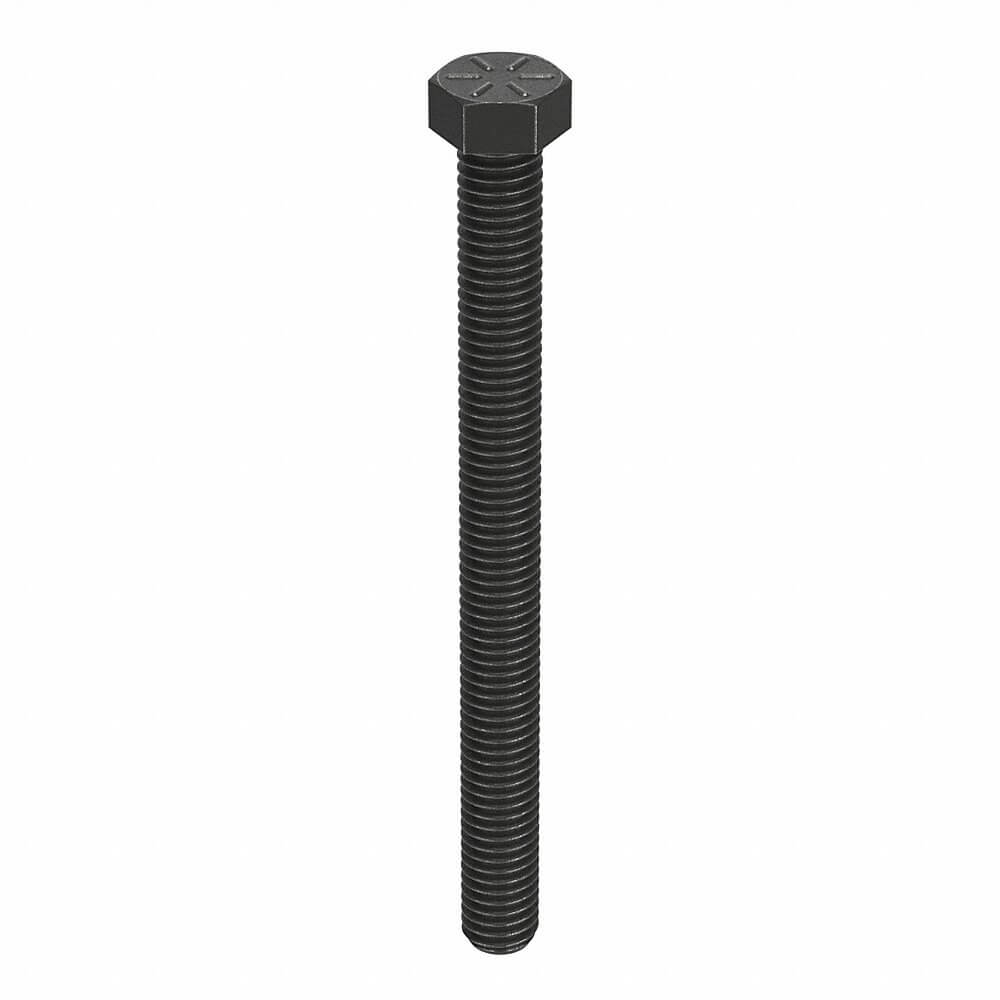

FABORY U04110.043.0600 Tap Bolt, 7/16 In - 14 Thread Size, Steel, 6 In Lg., 19/64 In Head Ht.
Item: CG8KRFModel: U04110.043.0600Cross Ref: 41UF29
7 In Stock
Ships within 2 days via
5.00% off
€177.48 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Tap Bolt |
| Drive | Hex |
| Drive Type | Hex |
| Fastener Length | 6" |
| Finish | Plain |
| Grade | Grade 8 |
| Hardness | Rockwell C33 |
| Head Height | 19/64" |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 5/8" |
| Hex Head Cap Screw Type | Hex Tap Bolt |
| Length | 6" |
| Material | Steel |
| Material Grade/class | Grade 8 |
| Material Quality Standards | Sae J429 |
| Min. Thread Length | 6" |
| Overall Length | 6" |
| Rockwell Hardness | Hrc33 |
| Standard | ASME B18.2.1 |
| System Of Measurement | Imperial |
| Tensile Strength | 150000 psi |
| Thread Direction | Right Hand |
| Thread Length | 6" |
| Thread Size | 7/16"-14 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Type | Hex Tap Bolt |
Shipping Info:
| Ship weight (kg) | 0.61 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Varies |
Product Variants
| Product | Model | Thread Length | Fastener Length | Min. Thread Length | Head Height | Head Width | Thread Style | Thread Direction | Material Grade/class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U04110.043.0200 | 2" | 2" | 2" | 19/64" | 5/8" | Fully Threaded | Right Hand | Grade 8 | 25 | €84.85 | |
|
U04110.043.0400 | 4" | 4" | 4" | 19/64" | 5/8" | Fully Threaded | Right Hand | Grade 8 | 10 | €117.31 | |
|
U04110.043.0500 | 5" | 5" | 5" | 19/64" | 5/8" | Fully Threaded | Right Hand | Grade 8 | 10 | €131.40 | |
|
U04110.043.0175 | 1 3/4" | 1 3/4" | 1 3/4" | 19/64" | 5/8" | Fully Threaded | Right Hand | Grade 8 | 25 | €151.17 | |
|
U04110.043.0225 | 2 1/4" | 2 1/4" | 2 1/4" | 19/64" | 5/8" | Fully Threaded | Right Hand | Grade 8 | 10 | €162.35 | |
|
U04110.043.0250 | 2 1/2" | 2 1/2" | 2 1/2" | 19/64" | 5/8" | Fully Threaded | Right Hand | Grade 8 | 10 | €56.03 | |
 |
U04110.043.0300 | 3" | 3" | 3" | 19/64" | 5/8" | Fully Threaded | Right Hand | Grade 8 | 10 | €70.23 |
