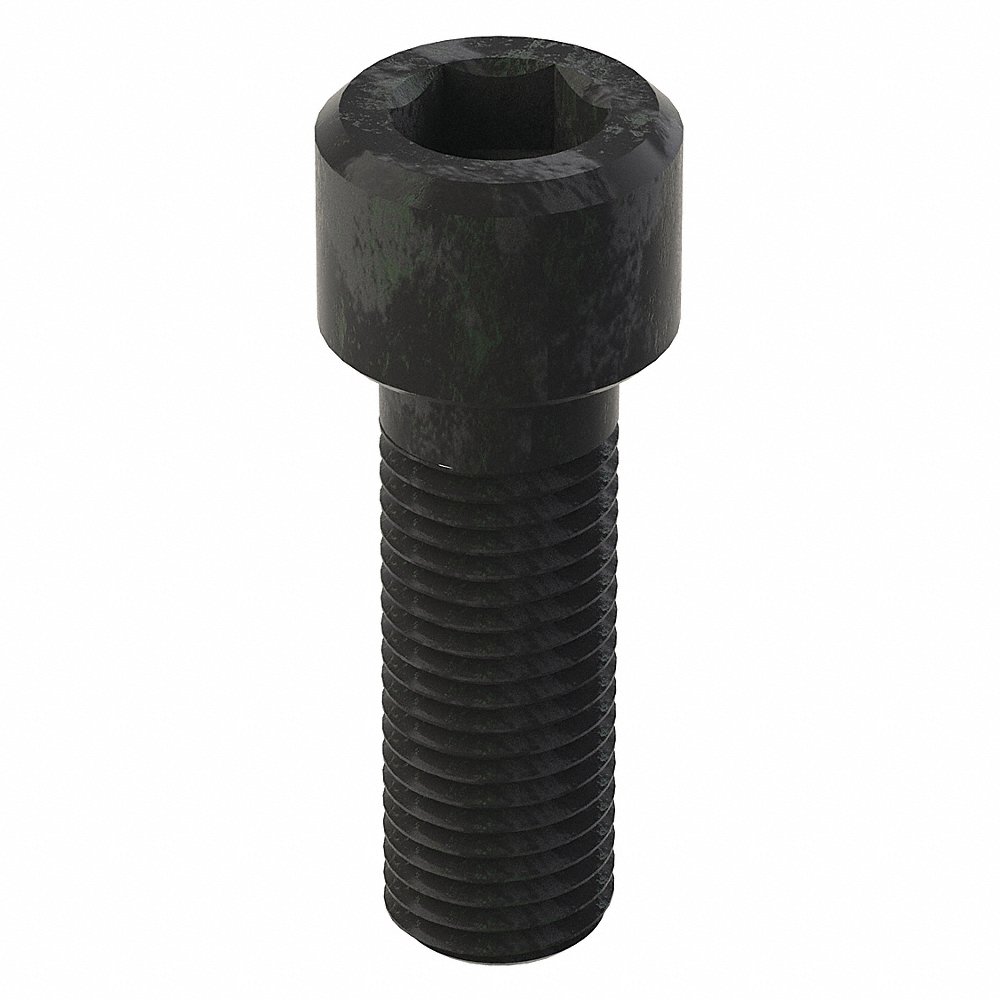

FABORY M07000.240.0070 Metric Socket Head Cap Screw, M24x3 Thread Size, Cyl., 70 mm Lg., Blk Oxide
70 mm
Get it by Tuesday, Feb 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€71.29 /pkg. of 10
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Metric Socket Head Cap Screw |
| Class | Class 12.9 |
| Combined Material & Grade | Class 12.9 Steel |
| Dimensional Standards | Din 912 |
| Display Qty | 10 |
| Drive Size | 19 mm |
| Finish | Black Oxide |
| Hardness | Rockwell C39-C44 |
| Head Dia. | 36 mm |
| Head Height | 24 mm |
| Length | 70 mm |
| Material | Steel |
| Material Grade/class | Class 12.9 |
| Material Type | Steel |
| Maximum Temperature | 302°F |
| Min. Tensile Strength | 176000 psi |
| Min. Thread Length | 60 mm |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 60 mm |
| Screw Length | 70 mm |
| Self-locking Element | No |
| Standard | DIN 912 |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 176000 psi |
| Thread Direction | Right Hand |
| Thread Length | 60 mm |
| Thread Size | M24 x 3 |
| Thread Style | Partially Threaded |
Shipping Info:
| Ship weight (kg) | 3.6 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Varies |
Product Variants
| Product | Model | Thread Size | Thread Style | Drive Size | Head Dia. | Head Height | Thread Length | Min. Tensile Strength | Hardness | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U07000.008.0012 | #2-56 | Fully Threaded | 5/64" | 0.14" | 0.086" | 1/8" | 180000 psi | Rockwell C37-C45 | 100 | €34.66 | |
 |
U07000.008.0062 | #2-56 | Fully Threaded | 5/64" | 0.14" | 0.086" | 5/8" | 180000 psi | Rockwell C37-C45 | 100 | €40.28 | |
 |
U07000.008.0075 | #2-56 | Partially Threaded | 5/64" | 0.14" | 0.086" | 5/8" | 180000 psi | Rockwell C37-C45 | 100 | €45.74 | |
 |
U07000.008.0087 | #2-56 | Partially Threaded | 5/64" | 0.14" | 0.086" | 5/8" | 180000 psi | Rockwell C37-C45 | 100 | €70.06 | |
 |
U07000.008.0100 | #2-56 | Partially Threaded | 5/64" | 0.14" | 0.086" | 5/8" | 180000 psi | Rockwell C37-C45 | 100 | €85.64 | |
 |
U07000.009.0075 | #3-48 | Partially Threaded | 5/64" | 0.161" | 0.099" | 5/8" | 180000 psi | Rockwell C37-C45 | 100 | €31.95 | |
 |
U07000.011.0175 | #4-40 | Partially Threaded | 3/32" | 0.183" | 0.112" | 3/4" | 180000 psi | Rockwell C37-C45 | 100 | €33.72 |
