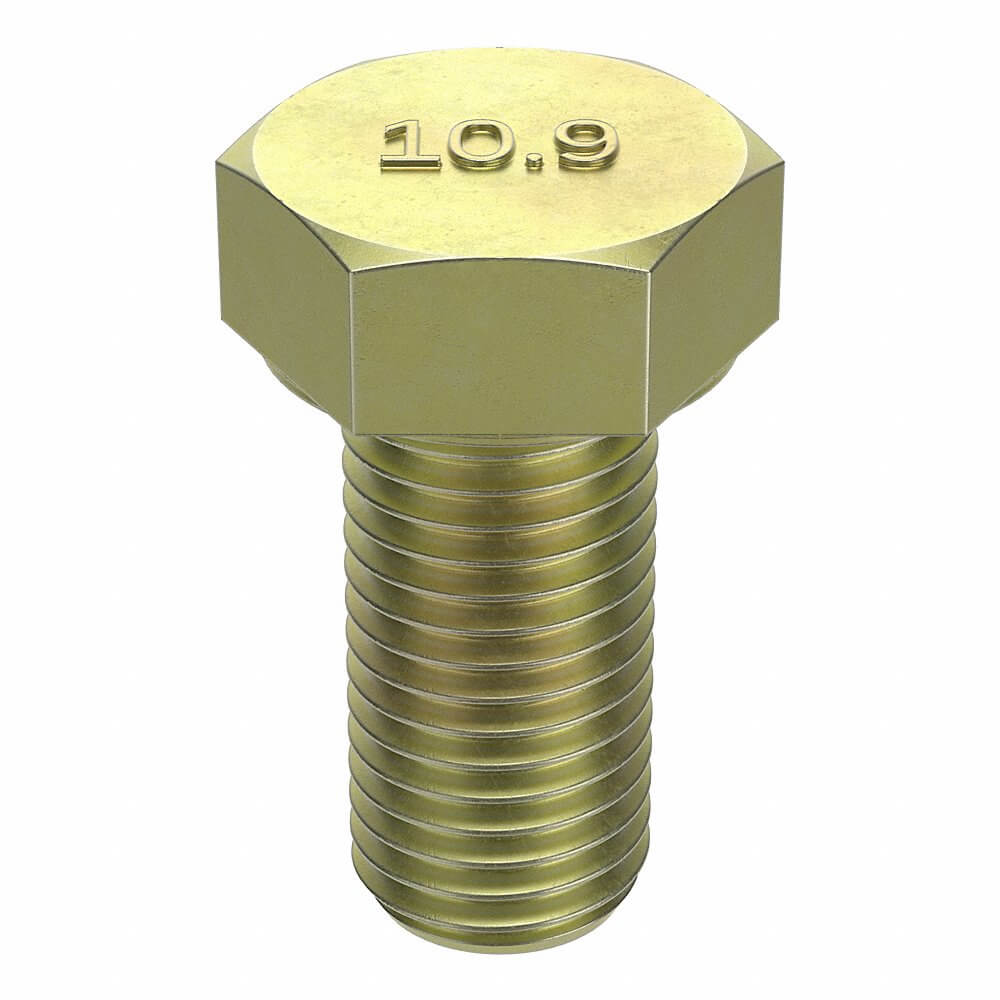

FABORY M04114.240.0060 Hex Head Cap Screw, M24x3 Thread Size, Steel, 60 mm Lg., 15 mm Head Ht., Coarse
Item: CG8DHGModel: M04114.240.0060Cross Ref: 38CU31
7 In Stock
Ships within 2 days via
5.00% off
€143.94 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Class 10.9 |
| Drive | Hex |
| Fastener Length | 60 mm |
| Finish | Zinc Yellow |
| Grade | Non Graded |
| Hardness | Rockwell C32 |
| Head Height | 15 mm |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 36 mm |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Length | 60 mm |
| Material | Steel |
| Material Grade/class | Class 10.9 |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Thread Length | 60 mm |
| Overall Length | 60 mm |
| Rockwell Hardness | Hrc32 |
| Standard | DIN 933 |
| System Of Measurement | Metric |
| Tensile Strength | 150800 psi |
| Thread Direction | Right Hand |
| Thread Length | 60 mm |
| Thread Size | M24 x 3 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 2.97 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Varies |
Product Variants
| Product | Model | Thread Style | Thread Length | Fastener Length | Min. Thread Length | Head Height | Head Width | Thread Direction | Material Grade/class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M04104.240.0090 | Partially Threaded | 54 mm | 90 mm | 54 mm | 15 mm | 36 mm | Right Hand | Class 10.9 | 5 | €75.43 | |
|
M04104.240.0100 | Partially Threaded | 54 mm | 100 mm | 54 mm | 15 mm | 36 mm | Right Hand | Class 10.9 | 5 | €86.56 | |
|
M04104.240.0110 | Partially Threaded | 54 mm | 110 mm | 54 mm | 15 mm | 36 mm | Right Hand | Class 10.9 | 5 | €42.38 | |
 |
M04104.240.0120 | Partially Threaded | 54 mm | 120 mm | 54 mm | 15 mm | 36 mm | Right Hand | Class 10.9 | 5 | €86.29 | |
|
M04104.240.0130 | Partially Threaded | 60 mm | 130 mm | 60 mm | 15 mm | 36 mm | Right Hand | Class 10.9 | 5 | €84.98 | |
|
M04104.240.0140 | Partially Threaded | 60 mm | 140 mm | 60 mm | 15 mm | 36 mm | Right Hand | Class 10.9 | 5 | €96.40 | |
|
M04114.240.0050 | Fully Threaded | 50 mm | - | - | 15 mm | 36 mm | Right Hand | - | 10 | €93.99 |
