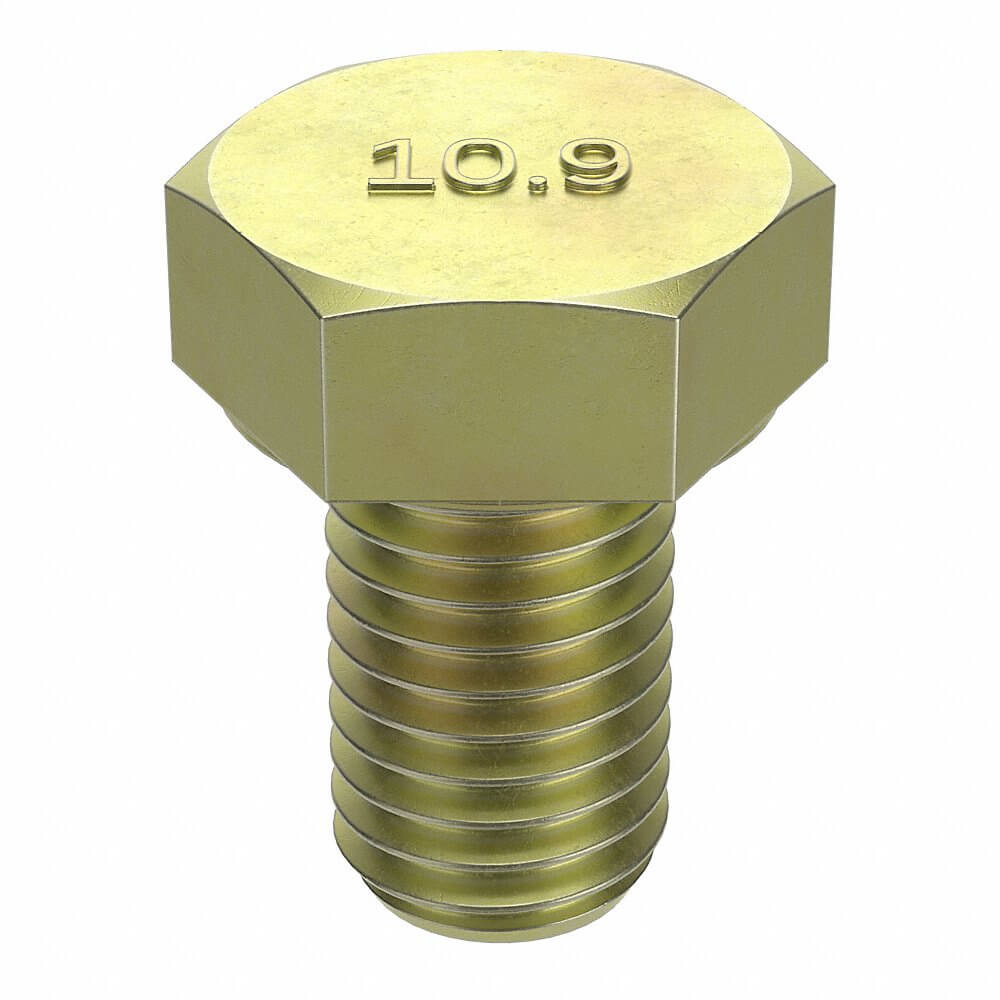

FABORY M04114.160.0025 Hex Head Cap Screw, M16x2 Thread Size, Steel, 25 mm Lg., 10 mm Head Ht., Coarse
Item: CG8DGYModel: M04114.160.0025Cross Ref: 38CU23
7 In Stock
25 mm
Ships within 2 days via
5.00% off
€81.92 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Class 10.9 |
| Drive | Hex |
| Fastener Length | 25 mm |
| Finish | Zinc Yellow |
| Grade | Non Graded |
| Hardness | Rockwell C32 |
| Head Height | 10 mm |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 24 mm |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Length | 25 mm |
| Material | Steel |
| Material Grade/class | Class 10.9 |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Thread Length | 25 mm |
| Overall Length | 25 mm |
| Rockwell Hardness | Hrc32 |
| Standard | DIN 933 |
| System Of Measurement | Metric |
| Tensile Strength | 150800 psi |
| Thread Direction | Right Hand |
| Thread Length | 25 mm |
| Thread Size | M16 x 2 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 1.69 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Varies |
Product Variants
| Product | Model | Thread Style | Thread Length | Fastener Length | Min. Thread Length | Head Height | Head Width | Thread Direction | Material Grade/class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M04104.160.0100 | Partially Threaded | 38 mm | 100 mm | 38 mm | 10 mm | 24 mm | Right Hand | Class 10.9 | 10 | €37.78 | |
 |
M04104.160.0110 | Partially Threaded | 38 mm | 110 mm | 38 mm | 10 mm | 24 mm | Right Hand | Class 10.9 | 10 | €59.98 | |
 |
M04104.160.0120 | Partially Threaded | 38 mm | 120 mm | 38 mm | 10 mm | 24 mm | Right Hand | Class 10.9 | 10 | €59.17 | |
 |
M04104.160.0060 | Partially Threaded | 38 mm | 60 mm | 38 mm | 10 mm | 24 mm | Right Hand | Class 10.9 | 25 | €35.63 | |
 |
M04104.160.0070 | Partially Threaded | 38 mm | 70 mm | 38 mm | 10 mm | 24 mm | Right Hand | Class 10.9 | 10 | €28.94 | |
 |
M04104.160.0080 | Partially Threaded | 38 mm | 80 mm | 38 mm | 10 mm | 24 mm | Right Hand | Class 10.9 | 10 | €29.30 | |
 |
M04104.160.0090 | Partially Threaded | 38 mm | 90 mm | 38 mm | 10 mm | 24 mm | Right Hand | Class 10.9 | 10 | €31.63 |
