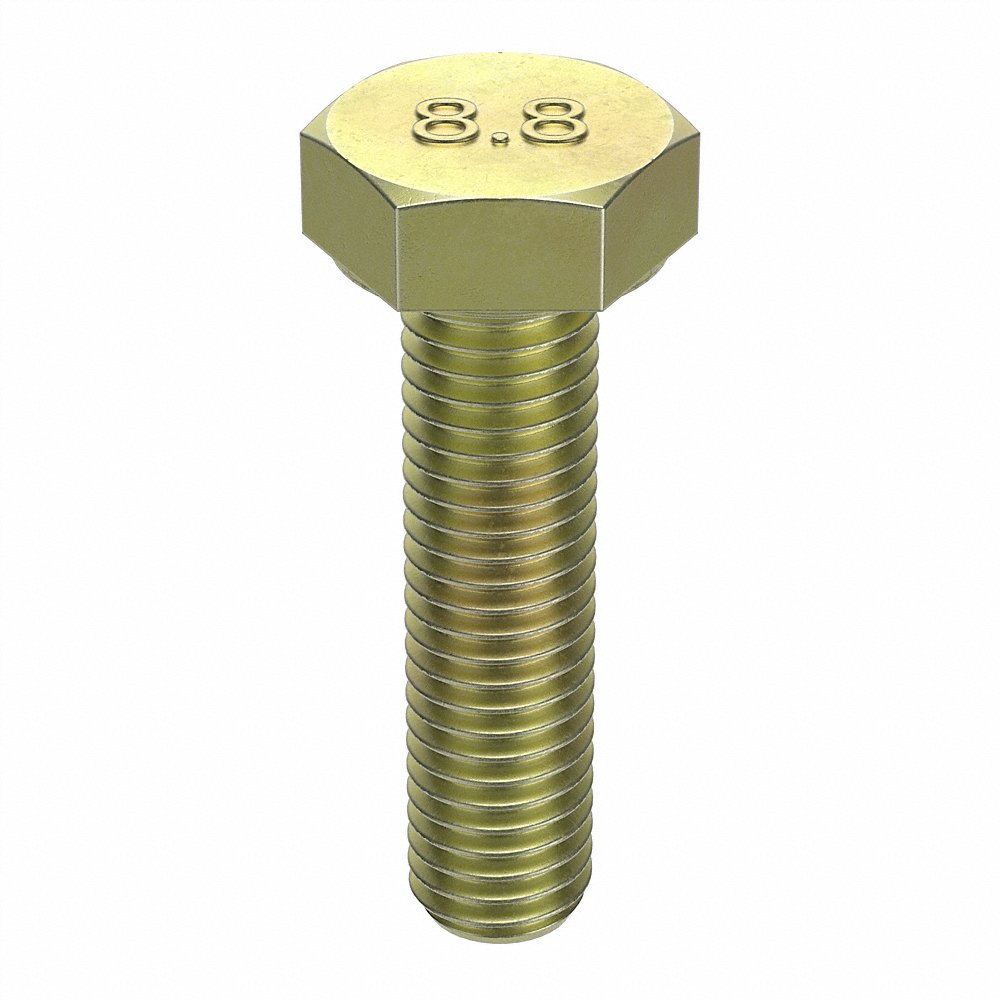

FABORY M01251.100.0035 Hex Head Cap Screw, M10x1 Thread Size, Steel, 35mm Lg., 6.4mm Head Ht., Fine, Yellow Zn Plated
Item: CG8CXHModel: M01251.100.0035Cross Ref: 38CP22
7 In Stock
Ships within 2 days via
5.00% off
€54.87 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Class 8.8 |
| Drive | Hex |
| Fastener Length | 35 mm |
| Finish | Zinc Yellow |
| Grade | Non Graded |
| Hardness | Rockwell C22 |
| Head Height | 6.4 mm |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 17 mm |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Length | 35 mm |
| Material | Steel |
| Material Grade/class | Class 8.8 |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Thread Length | 35 mm |
| Overall Length | 35 mm |
| Rockwell Hardness | Hrc22 |
| Standard | DIN 961 |
| System Of Measurement | Metric |
| Tensile Strength | 116000 psi |
| Thread Direction | Right Hand |
| Thread Length | 35 mm |
| Thread Size | M10 x 1 |
| Thread Style | Fully Threaded |
| Thread Type | Extra Fine |
Shipping Info:
| Ship weight (kg) | 1.57 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Varies |
Product Variants
| Product | Model | Thread Style | Thread Length | Fastener Length | Min. Thread Length | Head Height | Head Width | Thread Direction | Material Grade/class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M01241.100.0040 | Partially Threaded | 26 mm | 40 mm | 26 mm | 6.4 mm | 17 mm | Right Hand | Class 8.8 | 50 | €140.19 | |
|
M01241.100.0050 | Partially Threaded | 26 mm | - | - | 6.4 mm | 17 mm | Right Hand | - | 50 | €82.17 | |
|
M01241.100.0060 | Partially Threaded | 26 mm | 60 mm | 26 mm | 6.4 mm | 17 mm | Right Hand | Class 8.8 | 50 | €89.62 | |
 |
M01241.100.0070 | Partially Threaded | 26 mm | 70 mm | 26 mm | 6.4 mm | 17 mm | Right Hand | Class 8.8 | 50 | €115.59 | |
|
M01241.100.0080 | Partially Threaded | 26 mm | 80 mm | 26 mm | 6.4 mm | 17 mm | Right Hand | Class 8.8 | 50 | €101.51 | |
 |
M01251.100.0020 | Fully Threaded | 20 mm | 20 mm | 20 mm | 6.4 mm | 17 mm | Right Hand | Class 8.8 | 50 | €61.77 | |
|
M01251.100.0025 | Fully Threaded | 25 mm | 25 mm | 25 mm | 6.4 mm | 17 mm | Right Hand | Class 8.8 | 50 | €59.59 |
