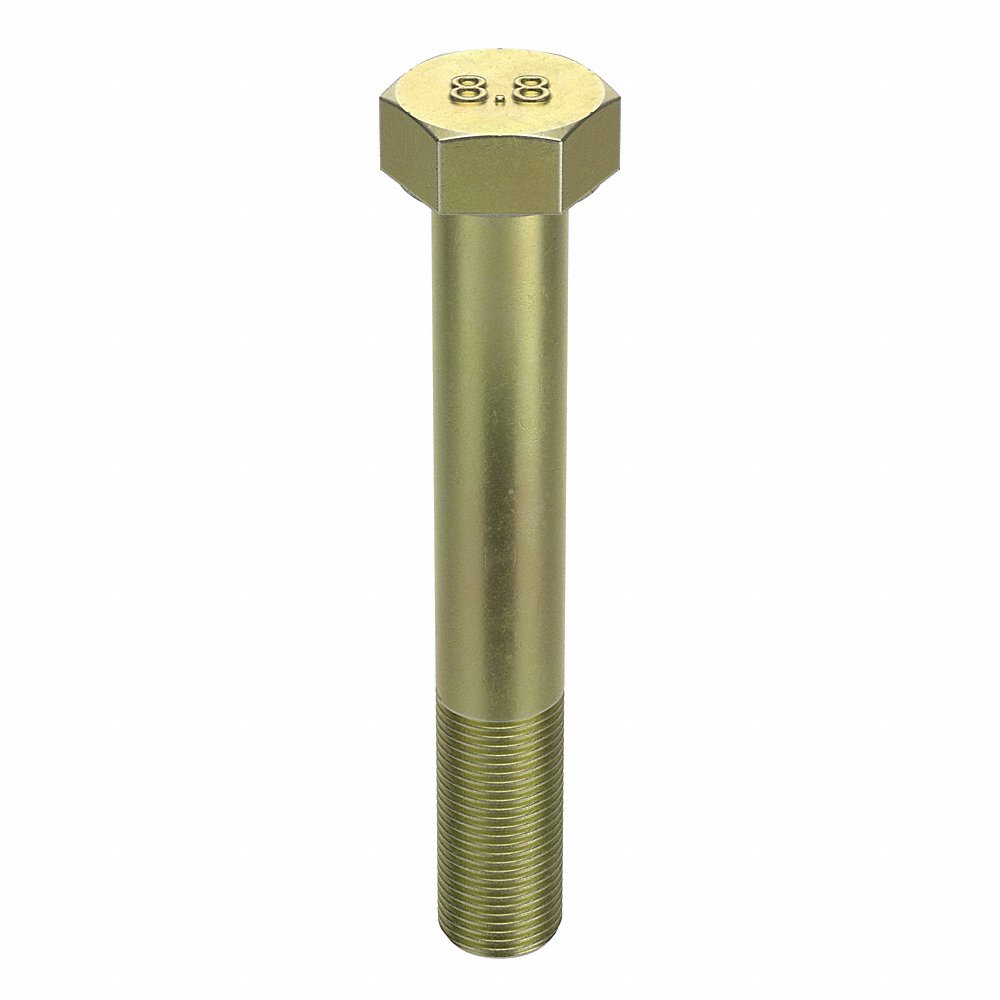

FABORY M01240.160.0140 Hex Head Cap Screw, M16x1.5 Thread Size, Steel, 140mm Lg., 10mm Head Ht., Fine, Yellow Zn Plated
Item: CG8CUHModel: M01240.160.0140Cross Ref: 38CN80
7 In Stock
Ships within 2 days via
5.00% off
€82.91 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Class 8.8 |
| Drive | Hex |
| Fastener Length | 140 mm |
| Finish | Zinc Yellow |
| Grade | Non Graded |
| Hardness | Rockwell C22 |
| Head Height | 10 mm |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 24 mm |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Length | 140 mm |
| Material | Steel |
| Material Grade/class | Class 8.8 |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Thread Length | 44 mm |
| Overall Length | 140 mm |
| Rockwell Hardness | Hrc22 |
| Standard | DIN 960 |
| System Of Measurement | Metric |
| Tensile Strength | 116000 psi |
| Thread Direction | Right Hand |
| Thread Length | 44 mm |
| Thread Size | M16 x 1.5 |
| Thread Style | Partially Threaded |
| Thread Type | Fine |
Shipping Info:
| Ship weight (kg) | 2.49 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Varies |
Product Variants
| Model | Thread Style | Thread Length | Fastener Length | Min. Thread Length | Head Height | Head Width | Thread Direction | Material Grade/class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M01240.160.0055 | Partially Threaded | 38 mm | 55 mm | 38 mm | 10 mm | 24 mm | Right Hand | Class 8.8 | 25 | €103.43 | |
| M01240.160.0060 | Partially Threaded | 38 mm | 60 mm | 38 mm | 10 mm | 24 mm | Right Hand | Class 8.8 | 25 | €147.22 | |
| M01240.160.0065 | Partially Threaded | 38 mm | 65 mm | 38 mm | 10 mm | 24 mm | Right Hand | Class 8.8 | 10 | €56.27 | |
| M01240.160.0070 | Partially Threaded | 38 mm | 70 mm | 38 mm | 10 mm | 24 mm | Right Hand | Class 8.8 | 10 | €69.50 | |
| M01240.160.0075 | Partially Threaded | 38 mm | 75 mm | 38 mm | 10 mm | 24 mm | Right Hand | Class 8.8 | 10 | €63.86 | |
| M01240.160.0080 | Partially Threaded | 38 mm | 80 mm | 38 mm | 10 mm | 24 mm | Right Hand | Class 8.8 | 10 | €76.22 | |
| M01240.160.0090 | Partially Threaded | 38 mm | 90 mm | 38 mm | 10 mm | 24 mm | Right Hand | Class 8.8 | 10 | €87.05 |
