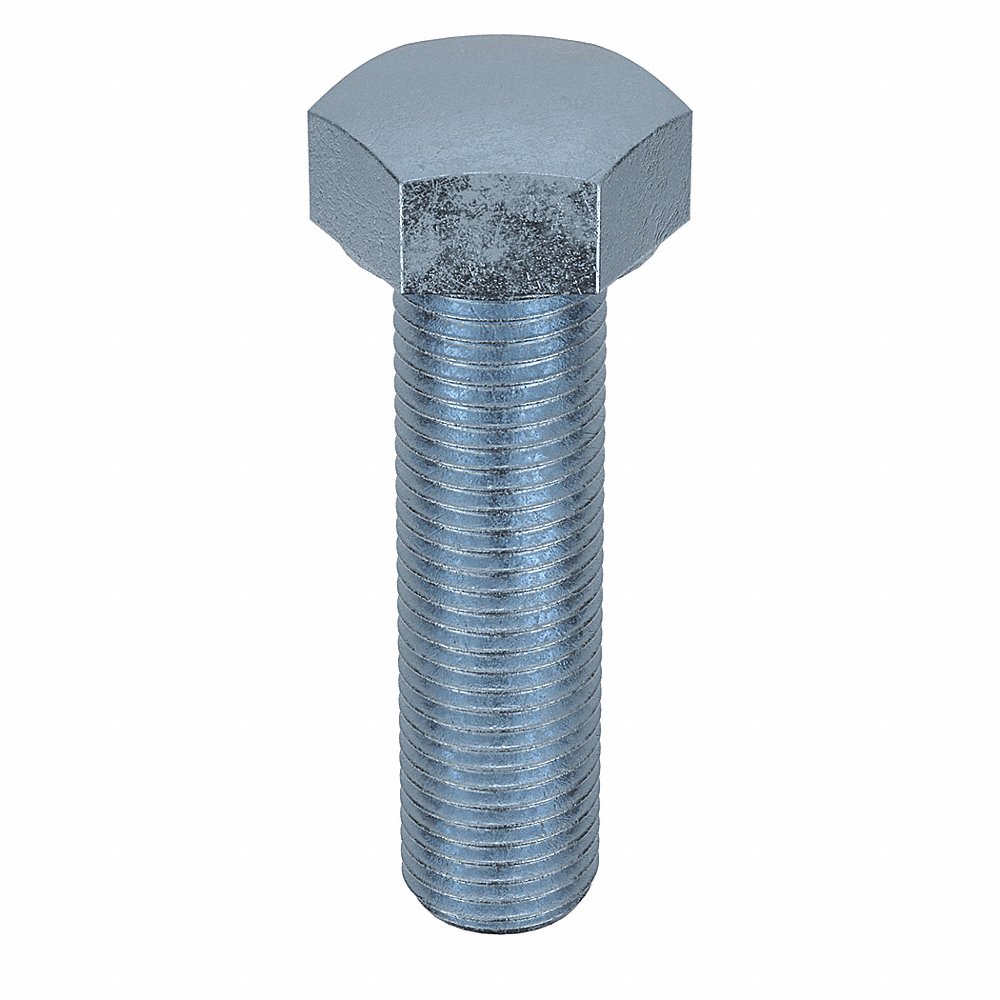

FABORY M01210.270.0100 Hex Head Cap Screw, M27x3 Thread Size, Steel, 100 mm Lg., 17 mm Head Ht., Coarse
Item: CG8CEWModel: M01210.270.0100Cross Ref: 38CL04
7 In Stock
Ships within 2 days via
5.00% off
€116.72 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Class 8.8 |
| Drive | Hex |
| Fastener Length | 100 mm |
| Finish | Zinc Plated |
| Grade | Non Graded |
| Hardness | Rockwell C23 |
| Head Height | 17 mm |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 41 mm |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Length | 100 mm |
| Material | Steel |
| Material Grade/class | Class 8.8 |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Thread Length | 100 mm |
| Overall Length | 100 mm |
| Rockwell Hardness | Hrc23 |
| Standard | DIN 933 |
| System Of Measurement | Metric |
| Tensile Strength | 120350 psi |
| Thread Direction | Right Hand |
| Thread Length | 100 mm |
| Thread Size | M27 x 3 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
Shipping Info:
| Ship weight (kg) | 2.82 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Varies |
Product Variants
| Product | Model | Thread Style | Thread Length | Fastener Length | Min. Thread Length | Hardness | Rockwell Hardness | Head Height | Head Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
M01210.270.0060 | Fully Threaded | 60 mm | 60 mm | 60 mm | Rockwell C22 | Hrc22 | 17 mm | 41 mm | 5 | €53.78 | |
 |
M01210.270.0070 | Fully Threaded | 70 mm | 70 mm | 70 mm | Rockwell C22 | Hrc22 | 17 mm | 41 mm | 5 | €86.63 | |
|
M01210.270.0080 | Fully Threaded | 80 mm | 80 mm | 80 mm | Rockwell C22 | Hrc22 | 17 mm | 41 mm | 5 | €92.52 | |
 |
M01200.270.0090 | Partially Threaded | 60 mm | 90 mm | 60 mm | Rockwell C23 | Hrc23 | 17 mm | 41 mm | 5 | €139.72 | |
|
M01200.270.0100 | Partially Threaded | 60 mm | 100 mm | 60 mm | Rockwell C23 | Hrc23 | 17 mm | 41 mm | 5 | €158.30 | |
|
M01200.270.0110 | Partially Threaded | 60 mm | 110 mm | 60 mm | Rockwell C23 | Hrc23 | 17 mm | 41 mm | 5 | €159.70 | |
 |
M01200.270.0120 | Partially Threaded | 60 mm | 120 mm | 60 mm | Rockwell C23 | Hrc23 | 17 mm | 41 mm | 5 | €173.69 |
