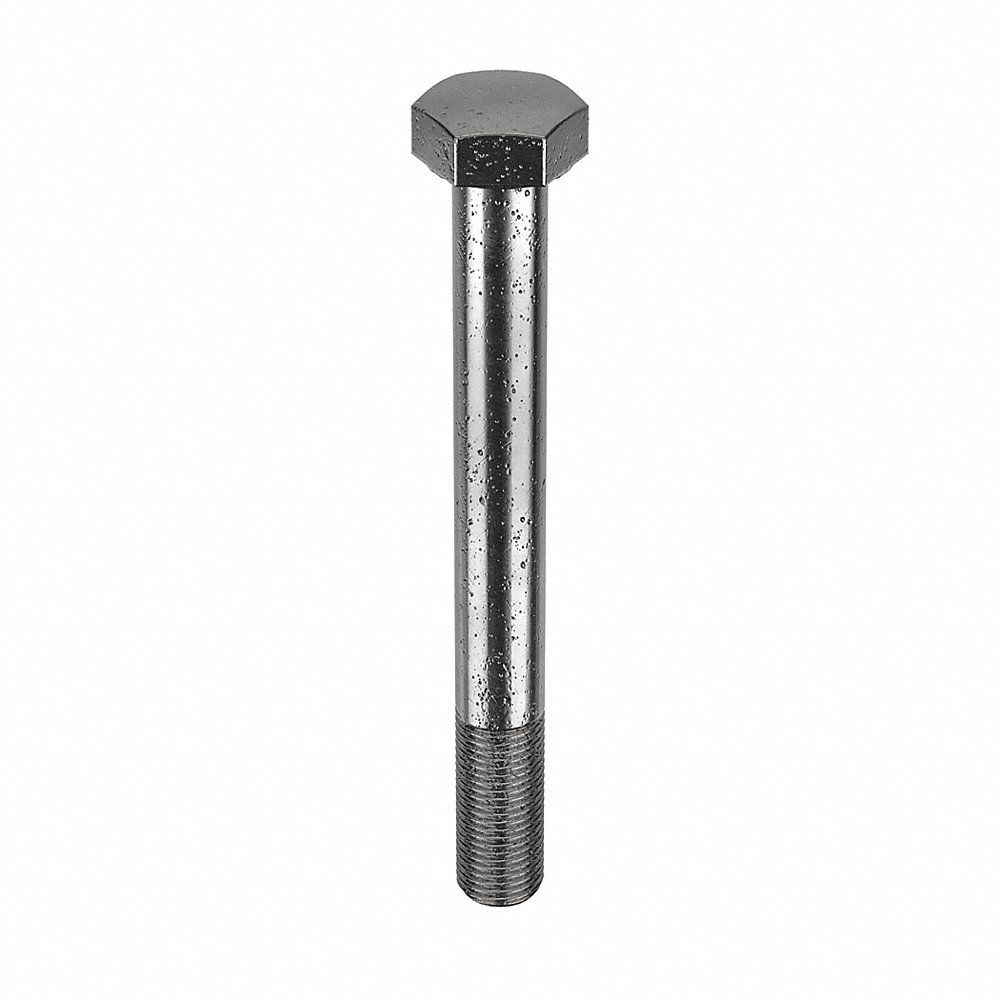

FABORY M01061.120.0110 Hex Head Cap Screw, M12x1.25 Thread Size, Steel, 110mm Lg., 7.5mm Head Ht., Fine, Blk Oxide
Item: CG8BWAModel: M01061.120.0110Cross Ref: 38CH51
7 In Stock
Ships within 2 days via
5.00% off
€132.81 /pkg. of 25
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Hex Head Cap Screw |
| Class | Class 8.8 |
| Drive | Hex |
| Fastener Length | 110 mm |
| Finish | Black Oxide |
| Grade | Non Graded |
| Head Height | 7.5 mm |
| Head Style | Hex |
| Head Type | Hex |
| Head Width | 19 mm |
| Hex Head Cap Screw Type | Hex Head Cap Screw |
| Length | 110 mm |
| Material | Steel |
| Material Grade/class | Class 8.8 |
| Max. Temp. | 302°F |
| Min. Temp. | -58°F |
| Min. Thread Length | 30 mm |
| Overall Length | 19 mm |
| Rockwell Hardness | Hrc22 |
| Standard | DIN 960 |
| System Of Measurement | Metric |
| Tensile Strength | 116000 psi |
| Thread Direction | Right Hand |
| Thread Length | 30 mm |
| Thread Size | M12 x 1.25 |
| Thread Style | Partially Threaded |
| Thread Type | Extra Fine |
Shipping Info:
| Ship weight (kg) | 2.73 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | Varies |
Product Variants
| Model | Thread Style | Thread Length | Fastener Length | Min. Thread Length | Head Height | Head Width | Thread Direction | Material Grade/class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M01061.120.0045 | Partially Threaded | 30 mm | 45 mm | 30 mm | 7.5 mm | 19 mm | Right Hand | Class 8.8 | 50 | €75.86 | |
| M01061.120.0050 | Partially Threaded | 30 mm | 50 mm | 30 mm | 7.5 mm | 19 mm | Right Hand | Class 8.8 | 50 | €123.09 | |
| M01061.120.0060 | Partially Threaded | 30 mm | 60 mm | 30 mm | 7.5 mm | 19 mm | Right Hand | Class 8.8 | 50 | €107.45 | |
| M01061.120.0070 | Partially Threaded | 30 mm | 70 mm | 30 mm | 7.5 mm | 19 mm | Right Hand | Class 8.8 | 25 | €56.90 | |
| M01061.120.0080 | Partially Threaded | 30 mm | - | - | 7.5 mm | 19 mm | Right Hand | - | 25 | €60.94 | |
| M01061.120.0090 | Partially Threaded | 30 mm | 90 mm | 30 mm | 7.5 mm | 19 mm | Right Hand | Class 8.8 | 25 | €80.88 | |
| M01061.120.0100 | Partially Threaded | 30 mm | 100 mm | 30 mm | 7.5 mm | 19 mm | Right Hand | Class 8.8 | 25 | €107.68 |
