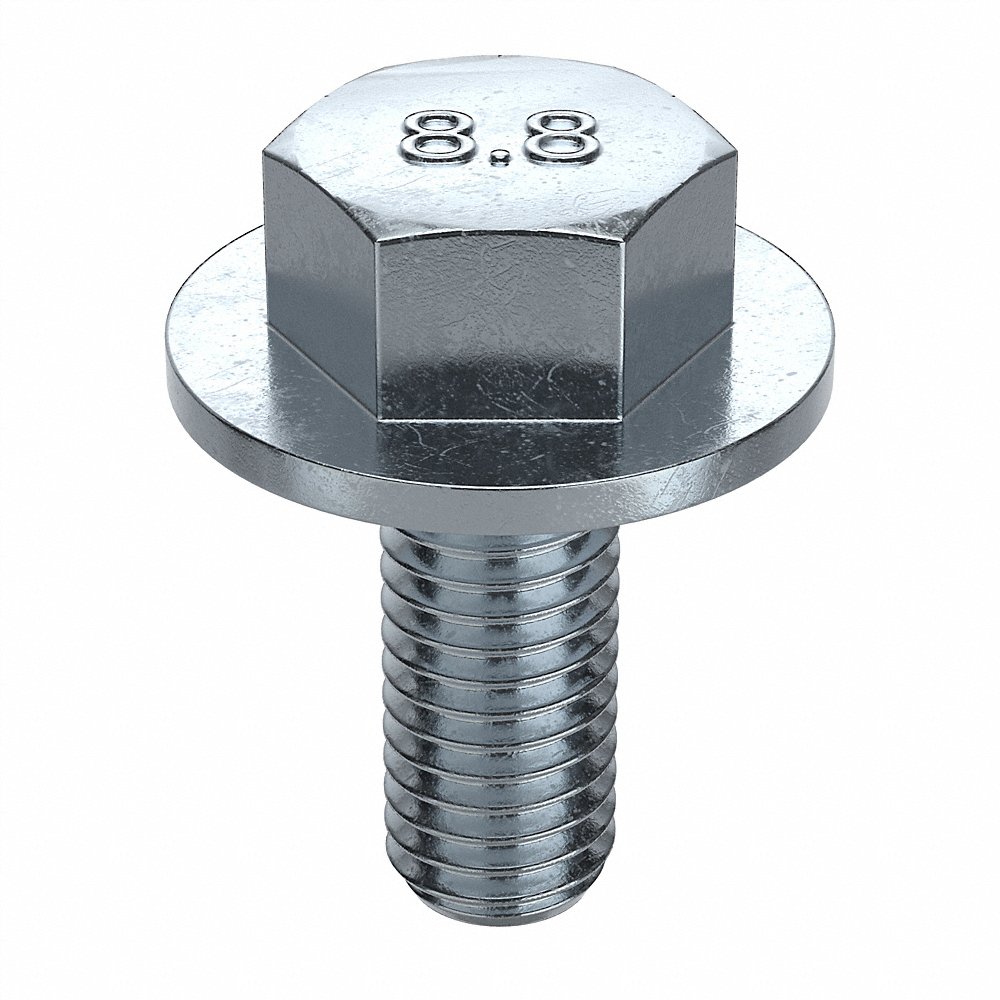

FABORY L01258.080.0020 Flange Bolt, 18mm Flange Dia., M8-1.25 Thread Size, Class 8.8 Grade
€235.66 /unit
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flange Bolt |
| Basic Material | Steel |
| Class | Class 8.8 |
| Dimensional Standards | Din 6921 |
| Fastener Finish | Zinc Plated |
| Fastener Length | 20 mm |
| Finish | Zinc Plated |
| Flange Bolt Type | Flange Bolt |
| Flange Diameter | 18 mm |
| Flange Type | Standard |
| Head Height | 8.1 mm |
| Head Style | Hex Flange |
| Head Type | Hex Flange |
| Head Type - Bolts | Hex Flange |
| Head Width | 13 mm |
| Length | 20 mm |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Class 8.8 |
| Min. Thread Length | 20 mm |
| Screw Size | M8 |
| Standard | DIN 6921 |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 116030 psi |
| Thread Direction | Right Hand |
| Thread Size | M8 x 1.25 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Type | Flange Bolt |
Shipping Info:
| Country of Origin | Varies |
Product Variants
| Product | Model | Thread Size | Thread Style | Thread Type | Finish | Fastener Finish | Min. Thread Length | Fastener Length | Head Width | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
B01258.025.0050 | 1/4"-20 | Fully Threaded | Coarse | Zinc Plated | Zinc Plated | 1/2" | 1/2" | 3/8" | 1 | €485.64 | |
|
B01258.025.0062 | 1/4"-20 | Fully Threaded | Coarse | Zinc Plated | Zinc Plated | 5/8" | 5/8" | 3/8" | 1 | €432.41 | RFQ
|
 |
B01258.025.0100 | 1/4"-20 | Fully Threaded | Coarse | Zinc Plated | Zinc Plated | - | 1" | 3/8" | 1 | €433.44 | |
 |
B01258.025.0125 | 1/4"-20 | Partially Threaded | Coarse | Zinc Plated | Zinc Plated | - | 1 1/4" | 3/8" | 1 | €408.24 | RFQ
|
|
B01258.025.0175 | 1/4"-20 | Partially Threaded | Coarse | Zinc Plated | Zinc Plated | 3/4" | 1 3/4" | 3/8" | 1 | €486.36 | RFQ
|
|
B01258.025.0200 | 1/4"-20 | Partially Threaded | Coarse | Zinc Plated | Zinc Plated | 3/4" | 2" | 3/8" | 1 | €478.62 | RFQ
|
|
B01258.031.0050 | 5/16"-18 | Fully Threaded | Coarse | Zinc Plated | Zinc Plated | 1/2" | 1/2" | 1/2" | 1 | €475.74 | RFQ
|
