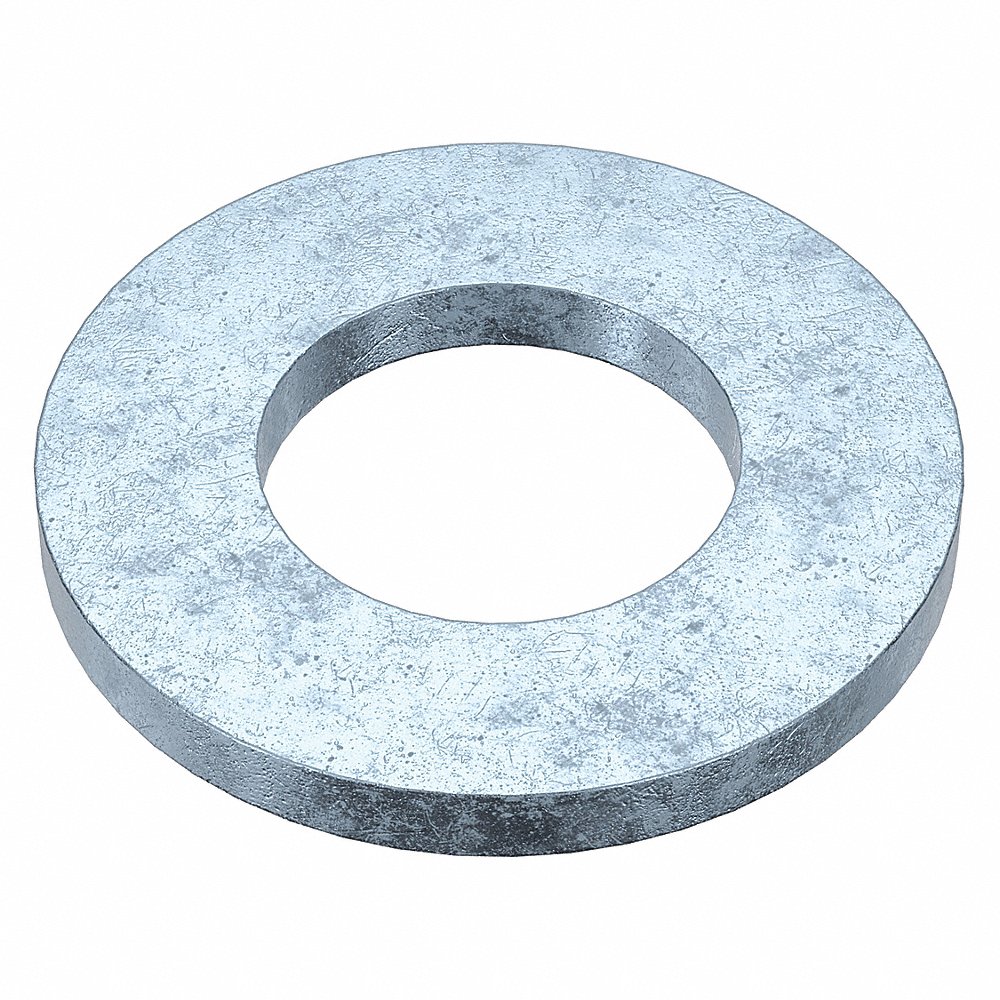

FABORY B38400.075.0002 Flat Washer, 3/4 In Fits Bolt Size, Std, 0.781 In I.D., 0.156 In Thk.
Get it by Thursday, Aug 20
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€341.97 /pkg. of 480
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flat Washer |
| Color | Silver |
| Dimensional Standards | ASME B18.22.1 |
| Finish | Zinc Plated |
| Fits Bolt Size | 3/4" |
| Flat Washer Type | Standard |
| For Screw Size | 3/4" |
| Inside Dia. | 0.781" |
| Inside Dia. Tolerance | 0.774" to 0.751" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Max. Temp. | 350°C |
| Max. Thickness | 0.141" |
| Min. Temp. | -58°C |
| Min. Thickness | 0.141" |
| Outside Dia. | 1 1/2" |
| Outside Dia. Tolerance | 1.493" to 1.47" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140Hv |
| Rohs Compliant | Yes |
| Standard | ASME B18.22.1 |
| System Of Measurement | Imperial |
| Temp. | -58°F to +302°F |
| Thickness | 0.156" |
| Thickness Tolerance | 0.112" to 0.17" |
| Washer Material | Steel |
| Washer Type | Standard Washer |
| Washer Type | Flat Washer |
Shipping Info:
| Ship weight (kg) | 9.77 |
| Country of Origin | Varies |
Product Details:
- General Purpose
Product Variants
| Product | Model | Fits Bolt Size | Thickness | Min. Thickness | Max. Thickness | For Screw Size | Material Grade/class | Thickness Tolerance | Inside Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
WASB#0NZ | #0 | 0.028" | 0.022" | 0.028" | #0 | Grade 2 | -0.014" to +0.005" | -0.01" to +0.01" | 50 | €8.39 | |
 |
WASB#0RZ | #0 | 0.028" | 0.022" | 0.028" | #0 | Grade 2 | -0.014" to +0.005" | -0.01" to +0.01" | 50 | €9.71 | |
 |
WASB#0WZ | #0 | 0.028" | 0.022" | 0.028" | #0 | Grade 2 | -0.014" to +0.005" | -0.01" to +0.01" | 50 | €10.26 | |
 |
WASB#10NZ | #10 | 0.045" | 0.036" | 0.045" | #10 | Grade 2 | -0.014" to +0.005" | -0.01" to +0.01" | 50 | €14.13 | |
 |
WASB#10RZ | #10 | 0.045" | 0.036" | 0.045" | #10 | Grade 2 | -0.014" to +0.005" | -0.01" to +0.01" | 50 | €16.28 | |
 |
WASB#10WZ | #10 | 0.071" | - | - | - | - | -0.014" to +0.005" | - | 50 | €15.50 | |
 |
WASB#1NZ | #1 | 0.028" | 0.022" | 0.028" | #1 | Grade 2 | -0.014" to +0.005" | -0.01" to +0.01" | 50 | €6.62 |
