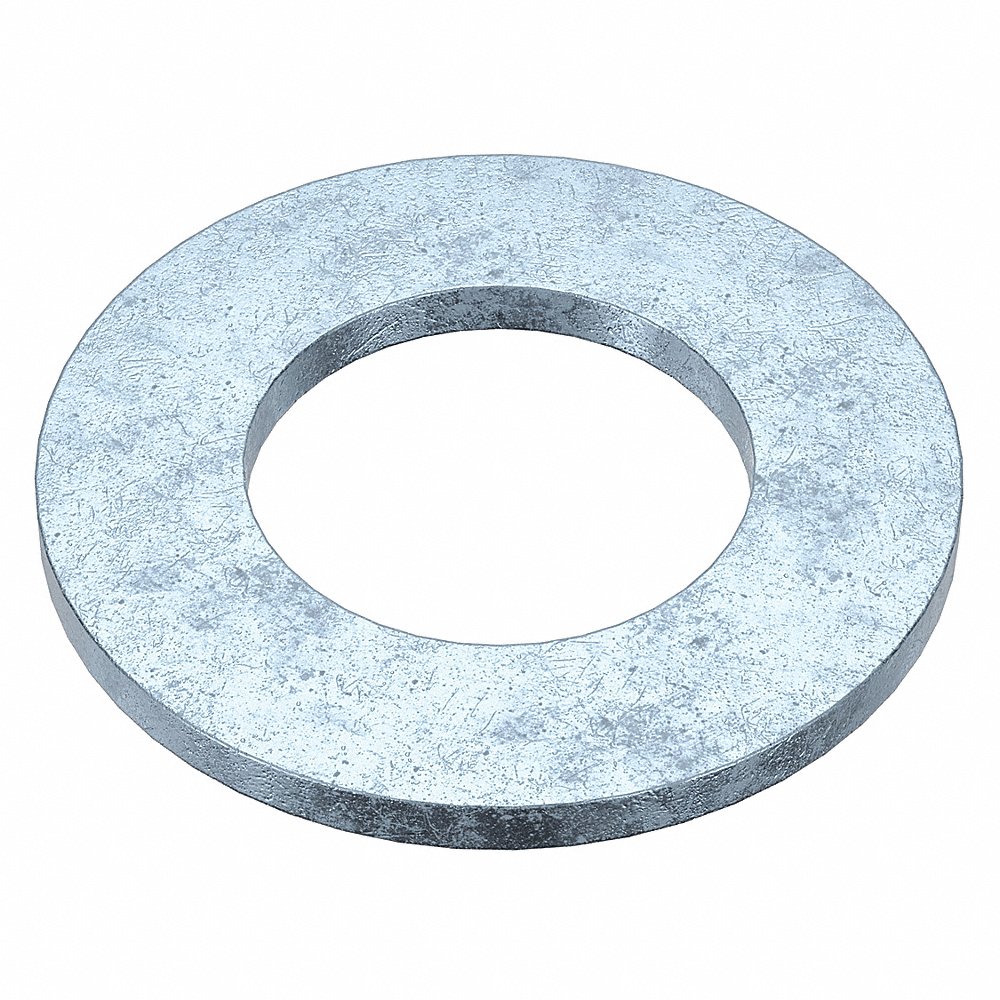

FABORY B38205.125.0001 Flat Washer, 1 1/4 In Fits Bolt Size, SAE, 1 3/8 In I.D., 2 1/2 In O.D., Steel
Get it by Friday, Aug 28
€ 34,99 Flat Shipping + VAT € 34,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€144.65 /pkg. of 130
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Flat Washer |
| Color | Silver |
| Dimensional Standards | Asme B18.21.1, Sae |
| Finish | Zinc Plated |
| Fits Bolt Size | 1 1/4" |
| Flat Washer Type | SAE |
| For Screw Size | 1 1/4" |
| Inside Dia. Tolerance | 1.368" to 1.405" |
| Made In North America | No |
| Material | Steel |
| Material Grade/class | Ungraded |
| Material Quality Standards | Not Rated |
| Max. Temp. | 350°C |
| Max. Thickness | 0.165" |
| Min. Temp. | -58°C |
| Min. Thickness | 0.165" |
| Outside Dia. | 2 1/2" |
| Outside Dia. Tolerance | 2.493" to 2.53" |
| Reach Compliant | Yes |
| Removable | Yes |
| Rockwell Hardness | 140Hv |
| Rohs Compliant | Yes |
| Standard | ASME B18.22.1 |
| System Of Measurement | Imperial |
| Temp. | -58°F to +302°F |
| Thickness | 0.156" |
| Thickness Tolerance | 0.136" to 0.192" |
| Washer Material | Steel |
| Washer Type | SAE Washer |
| Washer Type | Flat Washer |
Shipping Info:
| Ship weight (kg) | 9.57 |
| Country of Origin | Varies |
Product Details:
- General Purpose
Product Variants
| Product | Model | Fits Bolt Size | Thickness | Min. Thickness | Max. Thickness | For Screw Size | Material Grade/class | Thickness Tolerance | Inside Dia. Tolerance | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
U38400.016.0001 | #8 | 3/64" | 0.047" | 0.047" | #8 | Ungraded | 0.036" to 0.065" | 0.183" to 0.196" | 100 | €3.93 | |
 |
U38400.019.0004 | #10 | 3/64" | 0.047" | 0.047" | #10 | Ungraded | 0.036" to 0.065" | 0.214" to 0.227" | 100 | €4.09 | |
 |
U38205.025.0001 | 1/4" | 1/16" | 0.063" | 0.063" | 1/4" | Ungraded | 0.051" to 0.08" | 0.276" to 0.296" | 100 | €5.63 | |
 |
U38205.031.0001 | 5/16" | 1/16" | 0.063" | 0.063" | 5/16" | Ungraded | 0.051" to 0.08" | 0.339" to 0.359" | 100 | €6.94 | |
 |
U38205.037.0001 | 3/8" | 1/16" | 0.063" | 0.063" | 3/8" | Ungraded | 0.051" to 0.08" | 0.401" to 0.421" | 100 | €8.21 | |
 |
U38400.043.0002 | 7/16" | 1/16" | 0.063" | 0.063" | 7/16" | Ungraded | 0.051" to 0.08" | 0.464" to 0.484" | 50 | €5.84 | |
 |
U38205.050.0001 | 1/2" | 3/32" | 0.094" | 0.094" | 1/2" | Ungraded | 0.074" to 0.121" | 0.526" to 0.546" | 50 | €8.84 |
