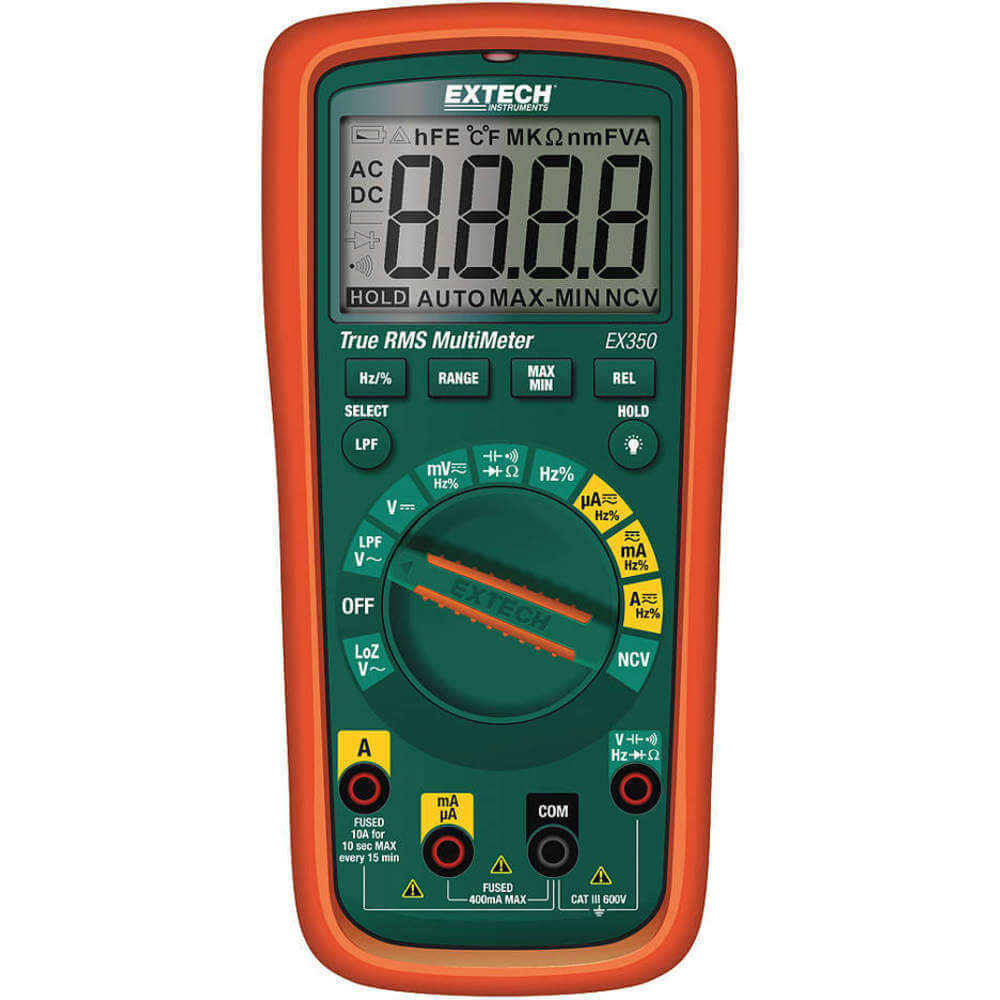

EXTECH EX350 Multimeter 10 MHz AA Full Size Style
Item: AH9LVFModel: EX350Cross Ref: 40JK32
7 In Stock
Ships within 2 days via
10.00% off
€129.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Digital Multimeter |
| Ac Response | TRMS |
| Ac Response Calculation | Trms |
| Ac Voltage Measurement Resolution | 0.1V |
| Audible Continuity | Yes |
| Auto Power Off | Yes |
| Auto Ranging | Yes |
| Bar Graph Included | No |
| Basic Ac Current Accuracy | -0.01% to +0.01% |
| Basic Ac Voltage Accuracy | -1% to +1% |
| Basic Dc Accuracy | +/-0.50% of Reading + 2 Digits |
| Basic Dc Current Accuracy | -0.01% to +0.01% |
| Basic Dc Voltage Accuracy | -0.5% to +0.5% |
| Batteries Included | Yes |
| Battery Access | Yes |
| Battery Chemistry | Alkaline |
| Battery Size | AA |
| Battery Type | AA |
| Bluetooth Compatible | No |
| Calibration Certificate | No |
| Capacitance Measurement Accuracy | -0.5% to +0.5% |
| Capacitance Measurement Resolution | 1 pF |
| Capacitance Range | 1 pF to 60 mF |
| Counts | 4000 |
| Data Hold | Yes |
| Data Logging | No |
| Data Storage | Yes |
| Dc Current Measurement Resolution | 0.1 Ua |
| Dc Voltage Measurement Resolution | 0.01V |
| Depth | 1.9" |
| Diode Test | Yes |
| Display | Backlit LCD |
| Display Type | Backlit LCD |
| Dustproof | No |
| Duty Cycle | Yes |
| Frequency Measurement Accuracy | -0.5% to +0.5% |
| Frequency Measurement Resolution | 0.001 Hz |
| Fuse Access | Yes |
| Includes | (2) AAA Batteries, Test Leads |
| Instrument Counts | 4000 |
| Instrument Safety Rating | CAT III 600V |
| Interface | No |
| Intrinsically Safe | No |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Ac Amps | 10A |
| Max. Ac Amps | 10 |
| Max. Ac Voltage | 600V AC |
| Max. Ac Volts | 600 |
| Max. Dc Amps | 10 |
| Max. Dc Amps | 10A |
| Max. Dc Volts | 600 |
| Max. Dc Volts | 600V |
| Max. Ohms | 40 megohm |
| Maximum Ac Voltage Measurement | 600V |
| Maximum Capacitance Measurement | 60 mF |
| Maximum Dc Current Measurement | 10A |
| Maximum Dc Voltage Measurement | 600V |
| Maximum Frequency Measurement | 10 MHz |
| Maximum Operating Temperature | 104°F |
| Maximum Resistance Measurement | 40 M ohms |
| Maximum Storage Temperature | 122°F |
| Min./max. Memory | Yes |
| Minimum Capacitance Measurement | 1 pF |
| Minimum Frequency Measurement | 0.001 Hz |
| Minimum Operating Temperature | 32°F |
| Minimum Resistance Measurement | 0.1 ohms |
| Minimum Storage Temperature | 14°F |
| Multimeter Style | Full Size - Basic Features |
| Multimeter Style | Full Size |
| Overall Height | 6.7" |
| Overall Width | 3 1/5" |
| Parameters Measured | AC Voltage, DC Voltage, AC Current, DC Current, Capacitance, Continuity, Diode, Duty Cycle, Frequency, Resistance |
| Peak Hold | No |
| Range | 0.001 Hz to 10 MHz |
| Removable Screen | No |
| Resistance Measurement Accuracy | -1.5% to +1.5% |
| Resistance Measurement Resolution | 0.1 ohms |
| Software Included | No |
| Temp. Range | Not Rated |
| Temperature Measurement Accuracy | -1% to +1% |
| Thermal Imaging | No |
| Waterproof | No |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 24.64 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 7.62 |
| Country of Origin | CN |
Product Details:
- Bar Graph : No
- Auto Ranging : Yes
- Diode Test : Yes
- Special Features: Built In NCV Detector, LoZ, Low Pass Filter, Relative Mode
Product Variants
| Product | Model | Multimeter Style | Instrument Safety Rating | Calibration Certificate | Maximum Ac Voltage Measurement | Maximum Dc Voltage Measurement | Maximum Dc Current Measurement | Instrument Counts | Maximum Ac Current Measurement | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
EX470A | Full Size | CAT III 600V | No | 600V | 600V | 10A | 4000 | 10A | €286.07 | |
 |
EX503 | Full Size | Cat Iii 1000V, Cat Iv 600V | No | 1000V | 1000V | 10A | 4000 | - | - | RFQ
|
 |
EX310 | Compact | Cat Ii 1000V, Cat Iii 600V | No | 600V | 600V | 10A | 2000 | - | €72.85 | |
 |
EX330 | Compact | Cat Ii 1000V, Cat Iii 600V | No | 600V | 600V | 10A | 4000 | - | €117.48 | |
 |
DM220 | Compact, Pocket | Cat Iii 1000V, Cat Iv 600V | No | 600V | 600V | 200 mA | 4000 | 200 mA | €90.99 | |
|
EX503-NIST | Full Size | Cat Iii 1000V, Cat Iv 600V | NIST | 1000V | 1000V | 10A | 4000 | - | - | RFQ
|
 |
EX530 | Full Size | Cat Iii 1000V, Cat Iv 600V | No | 1000V | 1000V | 20A | 40000 | - | - | RFQ
|
