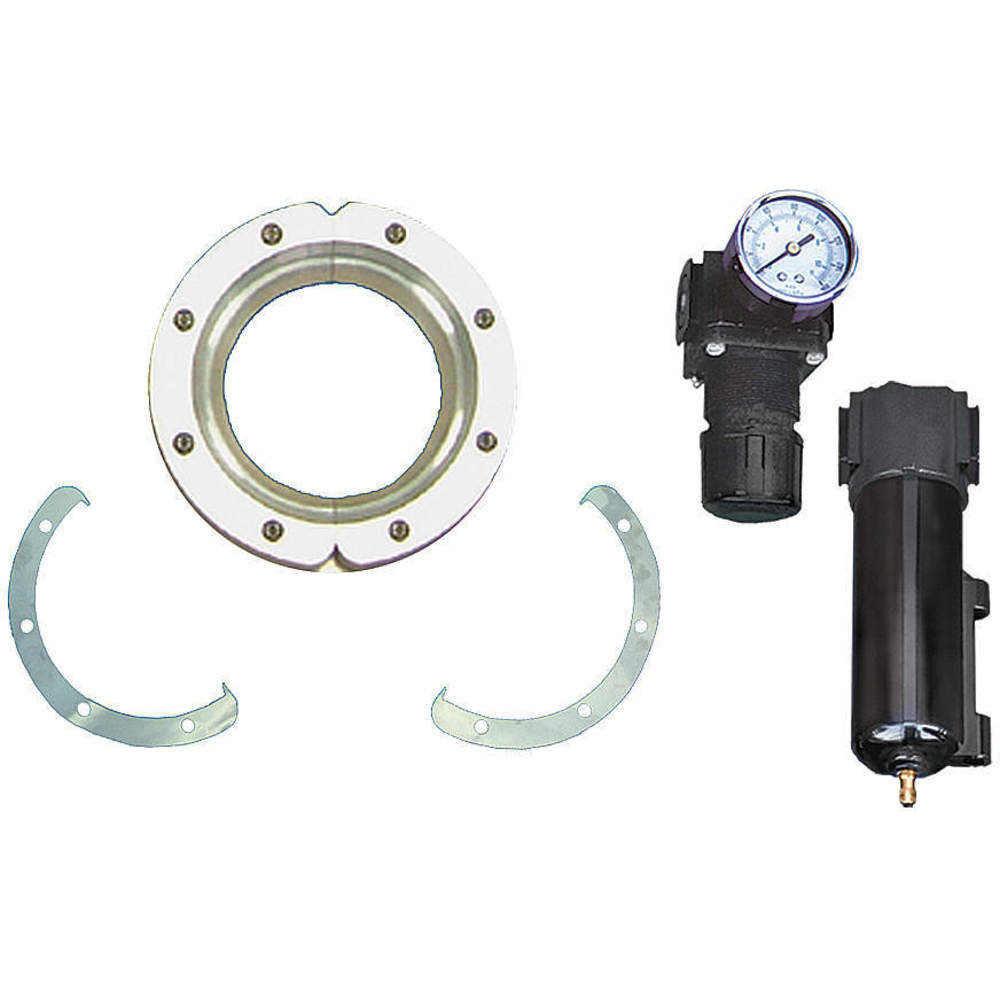

EXAIR 2454 Air Wipe Kit 1/4 Inch Npt 4 Inch Diameter Aluminium
Item: AE9GDAModel: 2454Cross Ref: 6JJN4
7 In Stock
Ships within 2 days via
10.00% off
€2,198.06 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Wipe Kit |
| (f)npt Inlet | 1/4" |
| Air Consumption | 50.2 SCFM |
| Air Inlet | 1/4" FNPT |
| Air Inlet Size | 1/4" |
| Air Inlet Type | NPT |
| Air Slot Gap (in.) | 0.002 |
| Air Slot Gap (in.) | 0.002" |
| Air Slot Gap Size | 0.002" |
| Body Material | Aluminum |
| Category Type | Air Knives |
| Db @ 80 Psi | 81 dB |
| Fluid Type | Compressed Air |
| Fnpt Inlet Size | 1/4" |
| For Fluid Type | Compressed Air |
| Includes | Automatic Drain Filter Separator, Filter Element, Pressure Regulator, Shim Set |
| Inlet Gender | Female |
| Inlet Size | 1/4" |
| Inlet Type | Female |
| Inside Dia. | 4" |
| Material | Aluminum |
| Max. Flow Rate | 50.2 SCFM |
| Max. Operating Pressure | 250 psi |
| Max. Operating Temp. | 400°F |
| Max. Temp. | 400°F |
| Maximum Sound Level | 82 dBA |
| Maximum Sound Level At 3 Ft | 82 dBA |
| Min. Operating Pressure | 80 psi |
| Mounting Hole Dia. | 1/4" |
| Mounting Stud Thread Size | 1/4"-20 |
| Mounting Style | Side Tapped |
| Mounting Thread Size | 1/4"-20 |
| Number Of Air Inlets | 2 |
| Number Of Inlets | 2 |
| Open Air Gap Setting | 0.002" |
| Operating Pressure | 80 psi to 250 psi |
| Outside Dia. | 6 3/4" |
| Overall Depth | 1 1/8" |
| Overall Ring Diameter | 6 3/4" |
| Overall Thickness | 1.13" |
| Product Type | Air Wipe Kit |
| Ring Dia. | 6 3/4" |
| Shim Thickness | 0.002" |
| System Of Measurement | Inch |
| Throat Diameter | 4" |
| Type | General Purpose, High Efficiency |
Shipping Info:
| Ship weight (kg) | 3.91 |
| Ship height (cm) | 27.94 |
| Ship length (cm) | 36.83 |
| Ship width (cm) | 26.67 |
| HS code | 8479899899 |
| Country of Origin | US |
Product Variants
| Model | Air Consumption | Inside Dia. | Outside Dia. | Material | Air Slot Width | Operating Pressure | Max. Temp. | Overall Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2450 | 13.9 SCFM | 1/2" | 3 1/4" | Aluminum | 0.002" | 80 psi to 250 psi | 400°F | 1 1/8" | €851.81 | |
| 2451 | 19.1 SCFM | 1" | 3 3/4" | Aluminum | 0.002" | 80 psi to 250 psi | 400°F | - | €931.79 | |
| 2452 | 29.5 SCFM | 2" | 4 3/4" | Aluminum | 0.002" | 80 psi to 250 psi | - | 1 1/8" | €1,106.30 | |
| 2453 | 39.8 SCFM | 3" | 5 3/4" | Aluminum | - | 80 psi to 250 psi | 400°F | 1 1/8" | €1,365.65 |
