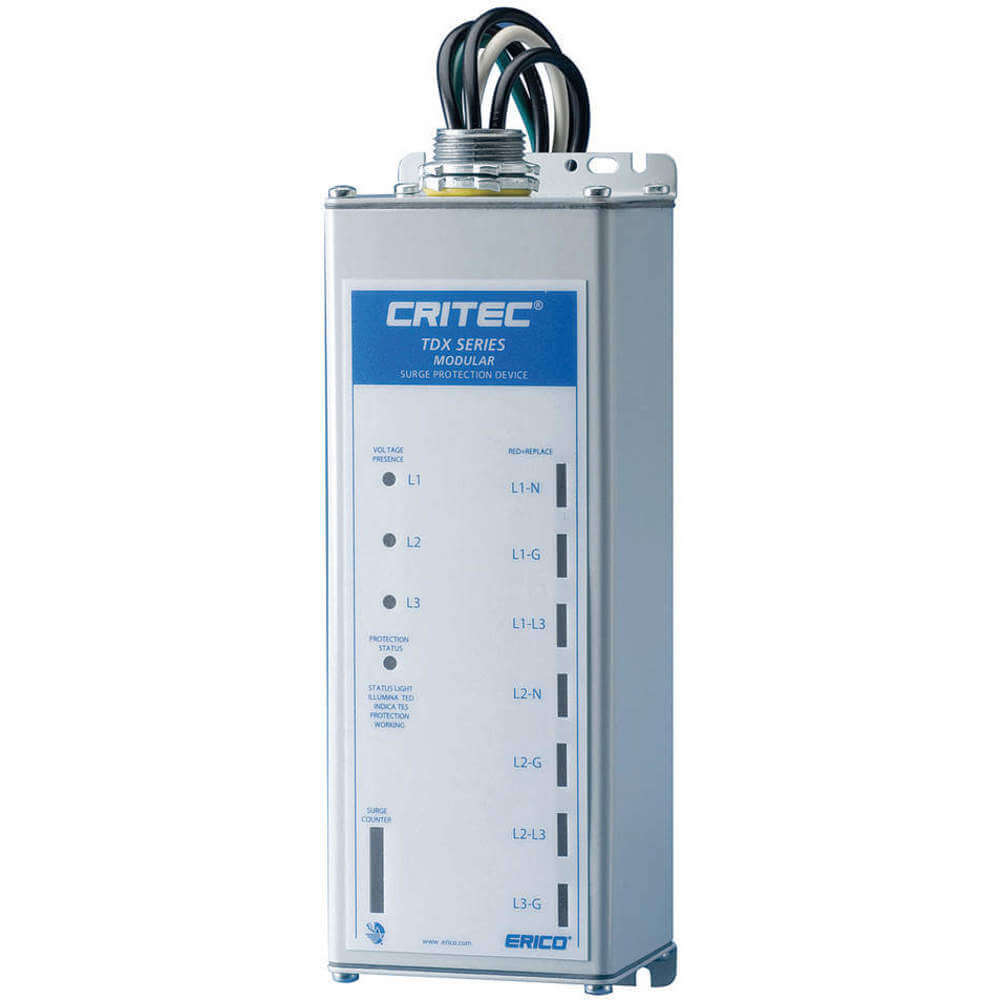

ERICO TDX100M240D Tvss Modular 100ka Nema 4 3ph 240v
Item: AA8KMHModel: TDX100M240DCross Ref: 18K861
7 In Stock
Ships within 2 days via
10.00% off
€2,172.87 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Surge Suppressor |
| Amps | 100 kA |
| Basic Material | Metallic |
| Chase Nipple Size | 3/4" |
| Color | Gray |
| Depth | 3.07" |
| Enclosure Material | Metal |
| Enclosure Nema Rating | 4 |
| Enclosure Rating | IP65 |
| Filter Type | Nonfiltering |
| Filtering | No |
| Footnotes | Can Be Installed In A Type 1 Or 2 Location In Accordance With The NEC 2008 |
| Includes | Voltage Free Contact |
| Ip Rating | 65 |
| Length | 9.45" |
| Lightning Impulse Amps | 12 kA |
| Lightning Impulse Current | 12kA |
| Lightning Impulse Current | 12.5 kA |
| Max. Continuing Operating Voltage | 275 L-N, 550 L-L |
| Max. Continuing Operating Voltage | 275/550V AC |
| Max. Operating Temp. | 176°F |
| Max. Surge Current Per Mode | 100 kA |
| Max. Surge Current Per Phase | 100kA |
| Max. Surge Current Per Phase | 100 kA |
| Min. Operating Temp. | -40°F |
| Modes Of Protection | All modes protected |
| Modes Of Protection | L-G, L-L |
| Modular | Yes |
| Mounting Style | Chase Nipple, Panel |
| Nominal Discharge Amps | 20 kA |
| Nominal Discharge Current | 20kA |
| Nominal Discharge Current | 40 kA |
| Number Of Poles | 3 |
| Number Of Wires | 4 |
| Phase | 3 |
| Short Circuit Amps Rating | 200 kA |
| Short Circuit Current Rating | 200kA |
| Standards | Ansi/Ieee, C-Tick, Ce, Iec 61643-1, Ul 1449 Edition 3 Type 1/2 |
| Status Indicator | Audible Alarm, Led Light, Mechanical Flag |
| System Connection | Parallel |
| Type | Modular |
| Ul Spd Type | Type 1/2 |
| Voltage | 240V AC Delta |
| Voltage Protection Rating | 1000V |
| Voltage Protection Rating | 1000 (L-L), 1000V (L-G) |
| Width | 3.31" |
| Wire Gauge | 10 AWG |
Shipping Info:
| Ship weight (kg) | 1.91 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 39.37 |
| Ship width (cm) | 10.16 |
| HS code | 8536308000 |
| Country of Origin | CN |
Product Variants
| Model | Phase | Voltage | Number Of Poles | Number Of Wires | Modes Of Protection | Nominal Discharge Current | Voltage Protection Rating | Max. Continuing Operating Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| TDX100M120/208 | 3 | 120/208V AC Wye | 4 | 5 | L-G, L-L, L-N, N-G | 50 kA | 600V (L-N), 1000 (L-L), 600V (N-G), 700V (L-G) (Modular) | 170/276V AC | €2,603.16 | |
| TDX100M120/240 | 1 | 120/240V AC | 3 | 4 | L-G, L-L, L-N, N-G | 50 kA | 600V (L-N), 1000 (L-L), 600V (N-G), 700V (L-G) (Modular) | 170/276V AC | €1,946.97 | |
| TDX100M120/240D | 3 | 120/240V AC High Leg Delta | 3 | 5 | L-G, L-L, L-N, N-G | 50 kA | 600V (L-N), 1000 (L-L), 600V (N-G), 600V (L-G) | 170/276V AC | €2,685.64 | |
| TDX100M277/480 | 3 | 277/480V AC Wye | 4 | 5 | L-L, L-N, N-G | 40 kA | 1200V (L-L, L-N, N-G), 1800V (L-L) | 320/550V AC | €2,368.28 | |
| TDX100M480D | 3 | 480V AC | 3 | 4 | L-G, L-L | 40 kA | 1800V | 610/1220V AC | €2,667.34 |
