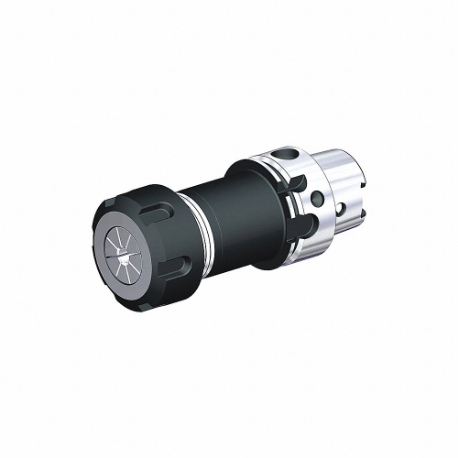

ERICKSON HSK40AER32090M Collet Chuck, Cylindrical Shank, Hsk40 Taper Size, 0.0800 Inch Min. Collet Capacity
Item: CP4KUTModel: HSK40AER32090MCross Ref: 302PX2
7 In Stock
Ships within 2 days via
10.00% off
€353.88 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Collet Chuck |
| Ansi Code | HSK40AER32090M |
| Application | Drilling |
| Bore Depth | 46 mm |
| Coolant Fed | Coolant Through |
| Cutting Direction | Neutral |
| Dimension Type | Fractional Inch |
| Features | Grip 2:1 |
| For Collet Series | ER32 |
| For Shank Type | Cylindrical |
| Max. Collet Capacity | 0.81" |
| Min. Collet Capacity | 2/25" |
| Nose Dia. | 50 mm |
| Number Of Coolant Holes | 2 |
| Nut Dia. | 50 mm |
| Overall Length | 60 mm |
| Projection | 90 mm |
| Shank Type | Cylindrical |
| Standards | Din 6499 |
| Taper Size | HSK40 |
Shipping Info:
| Ship weight (kg) | 0.62 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 6 |
| Ship width (cm) | 2.54 |
| Country of Origin | SI |
Product Variants
| Model | Projection | Taper Size | Nut Dia. | Overall Length | Coolant Fed | Nose Dia. | Shank Dia. | Dimension Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BT30TG075075M | 75 mm | BT30 | - | 123.40625 mm | Coolant Through | 50 mm | 1 1/4" | Fractional Inch | €278.45 | |
| BT40TG075070M | 70 mm | BT40 | - | 135.40625 mm | Coolant Through | 50 mm | 1 3/4" | Fractional Inch | €266.34 | |
| BT40TG100080M | 80 mm | BT40 | - | 145.40625 mm | Coolant Through | 60 mm | 1 3/4" | Fractional Inch | €249.69 | |
| BT50TG100090M | 90 mm | BT50 | - | 191.796875 mm | Coolant Through | 60 mm | 2 3/4" | Fractional Inch | €323.84 | |
| CVKV40BER16250 | 100 mm | CAT40 | - | 131.75 mm | Coolant Through | 24 mm | 12 mm | Fractional Inch | €607.82 | |
| CVKV40BER20250 | 100 mm | CAT40 | - | 131.75 mm | Coolant Through | 27 mm | - | Fractional Inch | €598.52 | |
| CVKV40BER25250 | 100 mm | CAT40 | - | 131.75 mm | Coolant Through | 27 mm | 16 mm | Fractional Inch | €598.52 |
