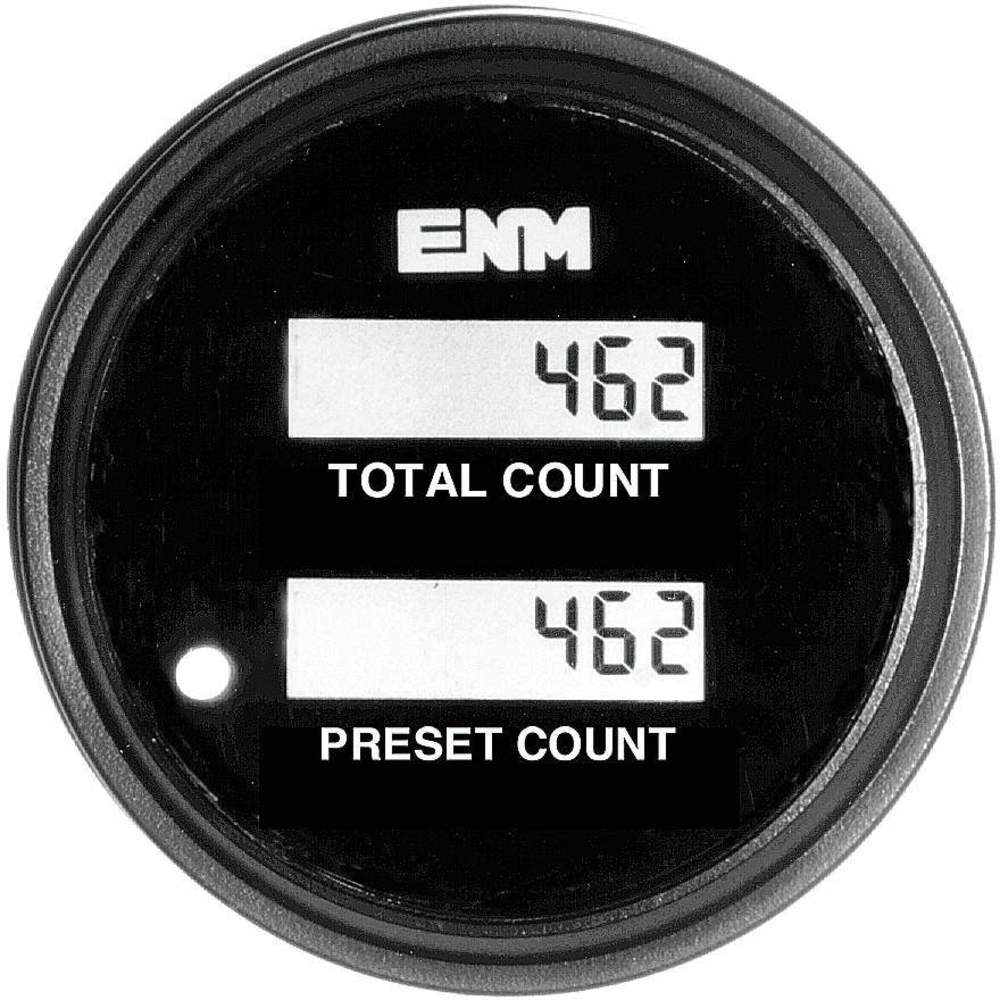

ENM PC1210F0 Electronic Counter 6 Digits Lcd
Item: AG7APJModel: PC1210F0Cross Ref: 49Y067
7 In Stock
Ships within 2 days via
10.00% off
€132.26 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Electronic Counter |
| Accuracy | -0.01% to +0.01% |
| Connector Type | Pin Connector |
| Count Speed - Maximum | 75 Hz |
| Counts/second | 20 cPS |
| Cutout Height | 2" |
| Diameter | 2.31" |
| Digit Color | Green, Yellow |
| Digit Height - Maximum | 0.27" |
| Display | LCD |
| Display Type | LCD |
| Features | Interlock Input (The Reset And Preset Input Are Disabled), Low Operating Current, Non-Volatile Memory, Polarity Insensitive For The Dc Power Input, Quartz Crystal, Self Programmable Or Factory Set, Solid State Electronics |
| Fits | 2" Panel Cutout |
| Fits Panel Cut Out | 2" |
| Includes | Wire Harness With Locking Feature |
| Input Signal | 10-40V DC |
| Input Voltage | 10-40V DC |
| Interface | None |
| Ip Rating | IP67 |
| Min. On/off Pulse | 25 msec |
| Mounting | Panel |
| Mounting Style | Panel |
| Nema Enclosure Rating | NEMA 4X |
| Nema Rating | NEMA 12, NEMA 4X |
| Number Of Digits | 6 |
| Output | Relay And LED |
| Output Rating | 0.2A @ 265V AC |
| Output Rating | 0.2A @ 265VAC, 0.2A @ 40VDC |
| Output Type | Relay |
| Overall Depth | 1 5/8" |
| Overall Diameter | 2 5/8" |
| Power Required | 6 mA |
| Prescaling Range | 1 to 999,999 |
| Preset | Yes |
| Reset Type | Remote Signal |
| Scaler | No |
| Special Features | Non-Volatile Memory (No Battery). Solid State Electronics. |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 8.64 |
| Ship length (cm) | 55.88 |
| Ship width (cm) | 8.64 |
| HS code | 9106908500 |
Product Details:
- Scaler (No)
- Max. Counts per Second (20)
- Special Features: Non-Volatile Memory (no battery). Solid State Electronics.
Product Variants
| Product | Model | Output Rating | Input Voltage | Display Type | Number Of Digits | Reset Type | Diameter | Connector Type | Preset | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC1210G0 | 0.2A @ 40V DC | 85-265V AC/90-360V DC | LCD | 6 | Remote Signal | - | Pin Connector | Yes | €180.15 |
