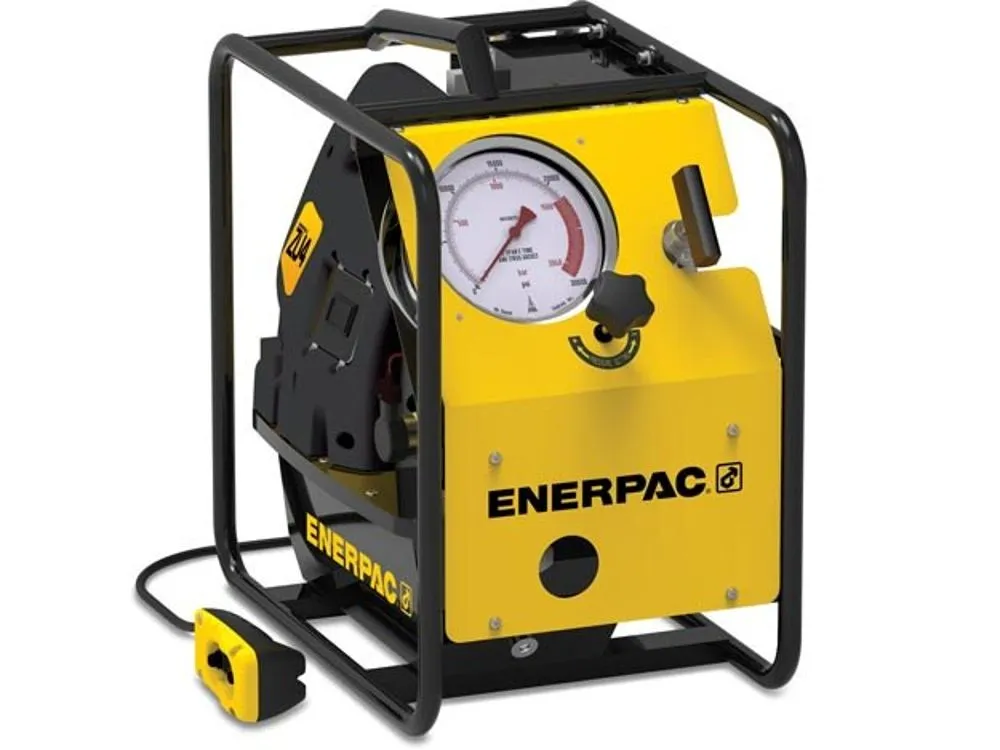

ENERPAC ZUTP1500SI Pump, Electric Universal, 1500 Bar, 230V, Solenoid
Get it by Wednesday, Dec 24
€15,764.97 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Electric Pump |
| Max. Operating Pressure | 21750 psi |
| Motor Electrical Specification | 230V, 1 Ph |
| Motor Hertz | 50 Hz |
| Motor Hp | 1 7/10 hp |
| Motor Phases | 1 pH |
| Motor Size | 1.25 kW |
| Motor Voltage | 208-240V |
| Output Flow Rate (in3/min) At 0 Psi | 230 cu. in. |
| Output Flow Rate (in3/min) At 21750 Psi | 20 cu. in./min. |
| Output Flow Rate At 0 Bar (l/min) | 3.8 LPM |
| Output Flow Rate At 1500 Bar (l/min) | 0.33 LPM |
| Power Source | Electric |
| Reservoir Capacity (cm3) | 4000 cu. cm |
| Reservoir Capacity (in3) | 231 cu. in. |
| Usable Oil Capacity (gal) | 1 gal. |
| Usable Oil Capacity (litres) | 4L |
| Valve Operation | Solenoid |
Shipping Info:
| Ship weight (kg) | 29.25 |
Product Variants
| Product | Model | Max. Operating Pressure | Duty Cycle | Cylinder Compatibility | Reservoir Capacity | Valve Operation | Pump Control | Type | Motor Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZU4308MB | 10000 psi | Intermittent | Single Acting | 2 gal. | Manual | Manual | High Force | Universal | €9,632.65 | |
 |
ZU4308LB | 10000 psi | Intermittent | Single Acting | - | Manual | Manual | High Force | Universal | €13,906.95 | |
 |
ZU4104DB | 10000 psi | Intermittent | Single Acting | 277 cu. in. | Solenoid | Pendant | Electric | Universal | €10,900.94 | |
|
ZU4108DB | 10000 psi | Intermittent | Single Acting | 416 cu. in. | Solenoid | Pendant | Electric | Universal | €11,834.86 | |
|
ZU4120DB | 10000 psi | Intermittent | Single Acting | 1201 cu. in. | Solenoid | Pendant | Electric | Universal | €13,155.52 | |
 |
ZU4204JB | 10000 psi | Intermittent | Single Acting | 277 cu. in. | Manual | Pendant | Electric | Universal | €9,407.71 | |
|
ZU4204MB | 10000 psi | Intermittent | Single Acting | 277 cu. in. | Manual | Manual | Electric | Universal | €9,479.63 |
