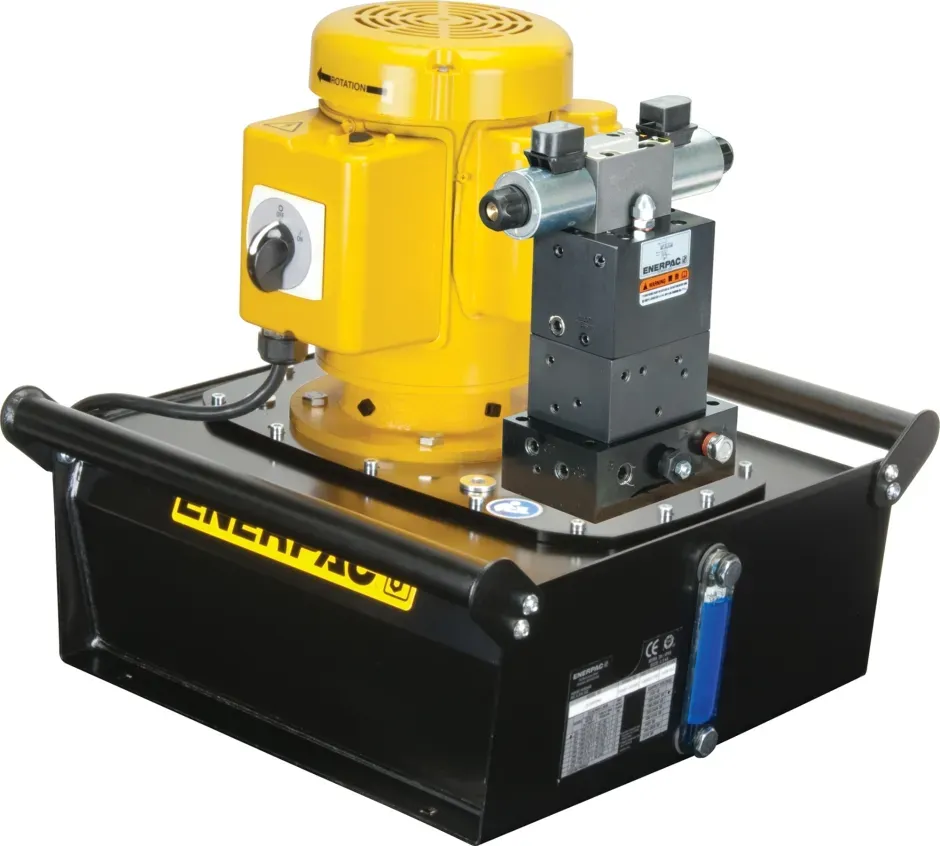

ENERPAC ZE4310SB Electric Hydraulic Pump, 3/3 Solenoid Valve, 2.5 Gallon Usable Oil, 10000 PSI
Get it by Monday, Dec 22
10.00% off
€18,010.72 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Electric Pump |
| Amps Ac | 13.6A |
| Charger Input Voltage | 115V AC |
| Control Pendant Size | 10 ft. |
| Control Pendant Voltage | 24V DC |
| Control Valve Function | Advance, Hold, Retract |
| Control Valve Pressure Relief (minimum) | 1000 psi |
| Control Valve Type | 3 Position, 3 Way, Tandem Center |
| Current | 19A |
| Cylinder Compatibility | Single Acting |
| Dimension A | 6 1/5" |
| Dimension B | 16 1/2" |
| Dimension C | 12" |
| Dimension D1 | 14 3/5" |
| Dimension E | 11" |
| Dimension H | 23 3/5" |
| Displacement @ 10,000 Psi | 60 cu. in./min. |
| Displacement @ 100 Psi | 650 cu. in./min. |
| Displacement @ 1000 Psi | 625 cu. in./min. |
| Displacement @ 200 Psi | 645 cu. in./min. |
| Displacement @ 5000 Psi | 62 cu. in./min. |
| Displacement @ 700 Psi | 600 cu. in./min. |
| Duty Cycle | Continuous |
| Fluid Port Npt | 3/8" |
| Frequency | 50/60 Hz |
| Frequency | 50/ 60 Hz |
| Hp | 1 1/2 hp |
| Includes | Lcd Display |
| Max. Control Valve Pressure Relief | 10000 psi |
| Max. Flow Rate | 60 cu. in./min. |
| Max. Hp | 1 1/2 hp |
| Max. Operating Pressure | 10000 psi |
| Max. Sound Level | 75 dBA |
| Media Intake Connection Size | 3/8" |
| Media Intake Connection Type | NPTF |
| Motor Rpm | 1750 RPM |
| Motor Type | Induction |
| Nameplate Voltage | 115V AC |
| Oil Displacement @ 0-200 Psi | 645 cu. in./min. |
| Oil Displacement @ 100 Psi | 650 cu. in./min. |
| Oil Displacement @ 1000 Psi | 625 cu. in./min. |
| Overall Height | 23.6" |
| Overall Length | 25.8" |
| Overall Width | 14 3/5" |
| Phase | Single |
| Power Source | Electric |
| Pump Control | Pendant |
| Relief Valve Range | 1000 to 10000 psi |
| Relief Valve Range | 1000 psi to 10000 psi |
| Reservoir Capacity | 601 cu. in. |
| Reservoir Capacity | 2.5 gal. |
| Reservoir Material | Steel |
| Solenoid Valve Voltage | 24V DC |
| Sound Level | 75 dBA |
| Type | Electric |
| Valve Operation | Solenoid |
Shipping Info:
| Ship weight (kg) | 72.9 |
| Ship height (cm) | 71.12 |
| Ship length (cm) | 76.2 |
| Ship width (cm) | 76.2 |
| HS code | 8413500050 |
| Country of Origin | US |
Product Variants
| Product | Model | Duty Cycle | Cylinder Compatibility | Reservoir Capacity | Valve Operation | Pump Control | Dimension A | Dimension B | Reservoir Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZE4108DB | Continuous | Single Acting | 2 gal. | Solenoid | Pendant | 5 3/5" | 11" | Steel | €19,084.87 | |
|
ZE4110DB | Continuous | Single Acting | 2.5 gal. | Solenoid | Pendant | 6 1/5" | 16 1/2" | Steel | €17,435.01 | |
 |
ZE4120DB | Continuous | Single Acting | 5 gal. | Solenoid | Pendant | 7.1" | 16 1/2" | Steel | €16,880.84 | |
 |
ZE4208LB | Extended | Single Acting | - | Manual | Manual | 5 3/5" | 11" | - | €9,837.47 | |
|
ZE4208MB | Continuous | Single Acting | 2 gal. | Manual | Manual | 5 3/5" | 11" | Steel | €12,648.77 | |
|
ZE4210LB | Extended | Single Acting | - | Manual | Manual | - | - | - | €10,085.50 | |
 |
ZE4220MB | - | Single Acting | 1155 cu. in. | - | - | - | - | Steel | €13,519.03 |
