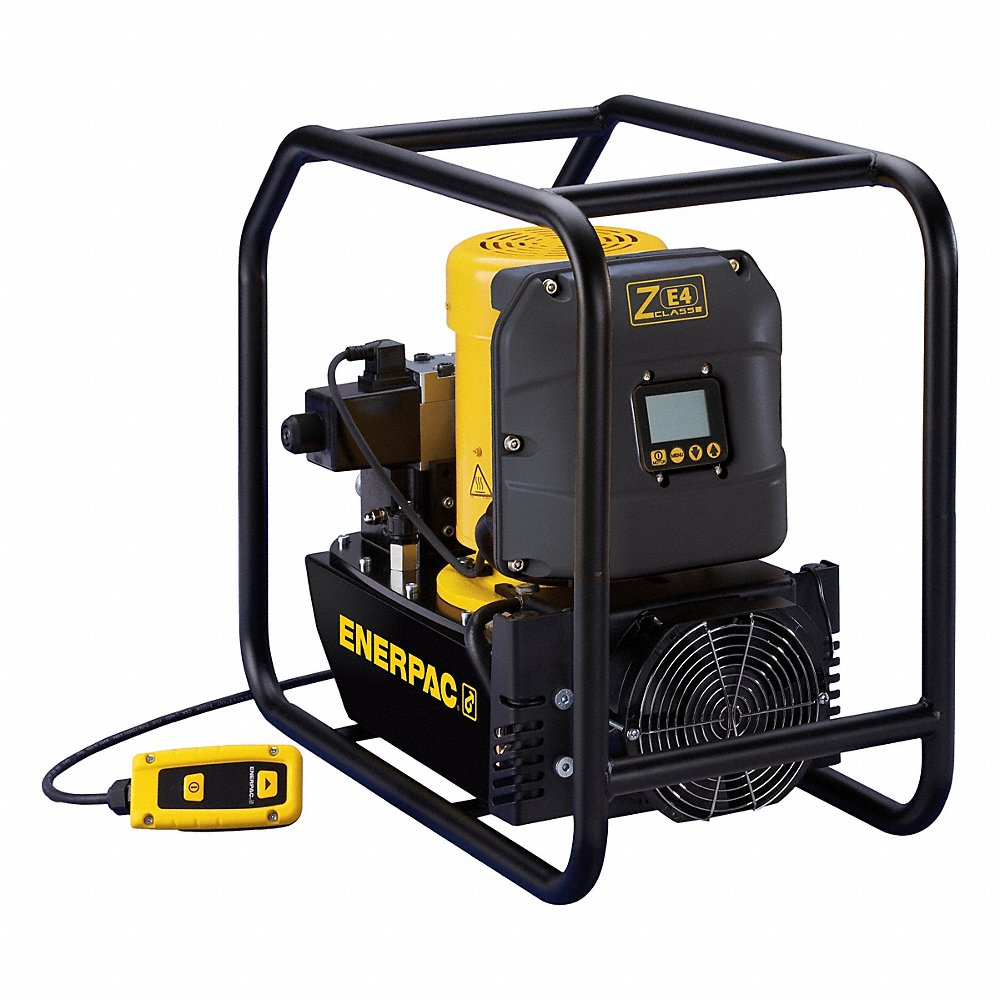

ENERPAC ZE4208TB-QHR Pump, Electric Induction, 115V, Roll Bar, 8L
Get it by Tuesday, Sep 1
13.00% off
€18,175.18 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Electric Pump |
| Duty Cycle | Extended |
| For Use With Torque Wrenches | For Use With All Enerpac Torque Wrenches |
| Max. Operating Pressure | 10000 psi |
| Motor Electrical Specification | 115V, 1 Ph |
| Motor Hertz | 50/60 Hz |
| Motor Phase | 1 |
| Motor Size | 1.1 kW , 1750 RPM |
| Motor Size (hp) | 1 1/2 hp |
| Motor Voltage | 115V |
| Output Flow Rate (in3/min) 100 Psi | 650 cu. in. |
| Output Flow Rate (in3/min) 10000 Psi | 60 cu. in./min. |
| Output Flow Rate (in3/min) 5000 Psi | 62 cu. in./min. |
| Output Flow Rate (in3/min) 700 Psi | 600 cu. in./min. |
| Output Flow Rate @ 350 Bar (l/min) | 0.9 LPM |
| Output Flow Rate @ 50 Bar | 8.1 LPM |
| Output Flow Rate @ 7 Bar (l/min) | 8/8 LPM |
| Output Flow Rate @ 700 Bar (l/min) | 0.8 LPM |
| Power Source | Electric |
| Product Datasheet | enerpac-ze4208tb-qhr.pdf |
| Promotion Restriction | Not Eligible For Promotion |
| Relief Valve Adjustment | 70 Bar to 800 Bar , 700 psi |
| Reservoir Capacity (cm3) | 8000 cu. cm |
| Reservoir Capacity (in3) | 416 cu. in. |
| Sound Level | 75 dBA |
| Usable Oil Capacity (litres) | 8L |
| Usable Oilcapacity Gal | 2 gal. |
| Valve Model | VM32 |
| Valve Operation | Manual |
| Valve Type | 3-Way, 2-Position |
Shipping Info:
| Ship weight (kg) | 69.71 |
| Ship height (cm) | 81.28 |
| Ship length (cm) | 68.58 |
| Ship width (cm) | 40.64 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Reservoir Capacity | Valve Operation | Duty Cycle | Pump Control | Amps | Cylinder Compatibility | Dimensions B | Dimensions A | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
ZE4108DB | 2 gal. | Solenoid | Continuous | Pendant | 19A | Single Acting | 11" | 5 3/5" | €14,047.07 | |
|
ZE4110DB | 2.5 gal. | Solenoid | Continuous | Pendant | 19A | Single Acting | 16 1/2" | 6 1/5" | €14,061.41 | |
 |
ZE4120DB | 5 gal. | Solenoid | Continuous | Pendant | 19A | Single Acting | 16 1/2" | 7.1" | €14,186.21 | |
 |
ZE4208LB | - | Manual | Extended | Manual | 13.6A | Single Acting | 11" | 5 3/5" | €9,837.47 | |
|
ZE4208MB | 2 gal. | Manual | Continuous | Manual | 19A | Single Acting | 11" | 5 3/5" | €10,202.10 | |
|
ZE4210LB | - | Manual | Extended | Manual | 13.6A | Single Acting | - | - | €10,085.50 | |
 |
ZE4220MB | 1155 cu. in. | - | - | - | 13.6A | Single Acting | - | - | €10,904.14 |
