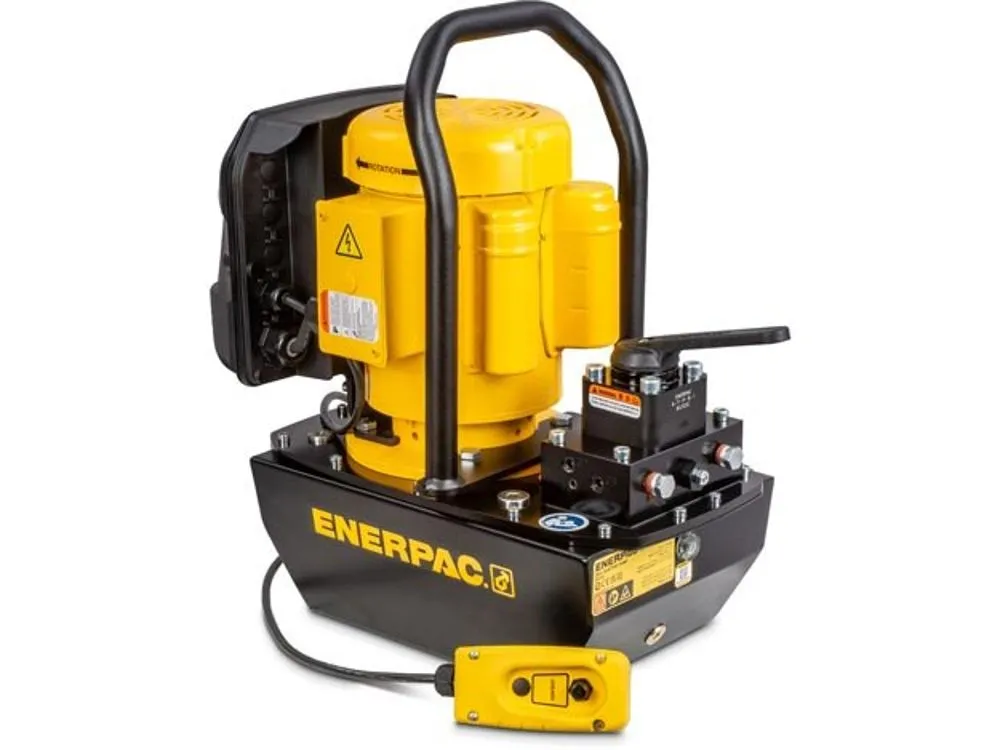

ENERPAC ZE2408EB Electric Hydraulic Pump, 115V, 8L
Get it by Tuesday, Dec 23
10.00% off
€10,618.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Electric Pump |
| Charger Input Voltage | 115V AC |
| Control Valve Function | Advance, Hold, Retract |
| Cylinder Compatability | Double-Acting |
| Cylinder Compatibility | Double Acting |
| Displacement @ 10,000 Psi | 20 cu. in./min. |
| Displacement @ 100 Psi | 200 cu. in./min. |
| Duty Cycle | Continuous |
| Frequency | 50/60 Hz |
| Height (in) | 20.4" |
| Length (in) | 19.3" |
| Max. Flow Rate | 20 cu. in./min. |
| Max. Hp | 3/4 hp |
| Max. Operating Pressure | 10000 psi |
| Max. Sound Level | 79 dBA |
| Maximum Flow At Rated Pressure | 20 cu. in./min. |
| Maximum Operating Pressure (psi) | 10000 psi |
| Motor Electrical Specification | 115V, 1 Ph, 50/60 Hz |
| Motor Hertz | 50/60 Hz |
| Motor Phases | 1 pH |
| Motor Size (hp) | 3/4 hp |
| Motor Type | Induction |
| Motor Voltage | 115V |
| Nameplate Voltage | 115V AC |
| Output Flow Rate (in | 200" |
| Overall Height | 20.4" |
| Overall Length | 21.9" |
| Overall Width | 11" |
| Phase | Single |
| Power Source | Electric |
| Pressure Rating (psi) 2nd Stage | 10000 psi |
| Pump Control | Pendant |
| Reservoir Capacity | 2 gal. |
| Reservoir Capacity (gal) | 2 gal. |
| Reservoir Capacity (in | 462" |
| Reservoir Material | Steel |
| Solenoid Valve Voltage | 24V DC |
| Sound Level (dba) | 79 dBA |
| Usable Oil Capacity (gal) | 1.8 gal. |
| Valve Function | Advance, Hold, Retract |
| Valve Model | VE43 |
| Valve Operation | Solenoid |
| Width (in) | 11" |
Shipping Info:
| Ship weight (kg) | 48.65 |
| Ship height (cm) | 51.82 |
| Ship length (cm) | 55.63 |
| Ship width (cm) | 27.94 |
| Country of Origin | US |
Product Variants
| Product | Model | Cylinder Compatibility | Valve Operation | Pump Control | Solenoid Valve Voltage | Charger Input Voltage | Control Pendant Voltage | Control Valve | Max. Operating Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
ZE2108DB | Single Acting | Solenoid | Pendant | 24V DC | 115V AC | 120V AC | Pendant | 10000 psi | €9,630.42 | |
|
ZE2108DE | - | Solenoid | Pendant | 24V DC | - | - | - | - | €6,530.87 | |
|
ZE2108DI | Single Acting | Solenoid | Pendant | 24V DC | 208/240V AC | 24V DC | Pendant | 10000 psi | €9,710.89 | |
 |
ZE2208MB | Single Acting | Manual | Manual Valve | Not Available | 115V AC | 24V DC | Manual | 10000 psi | €5,923.94 | |
 |

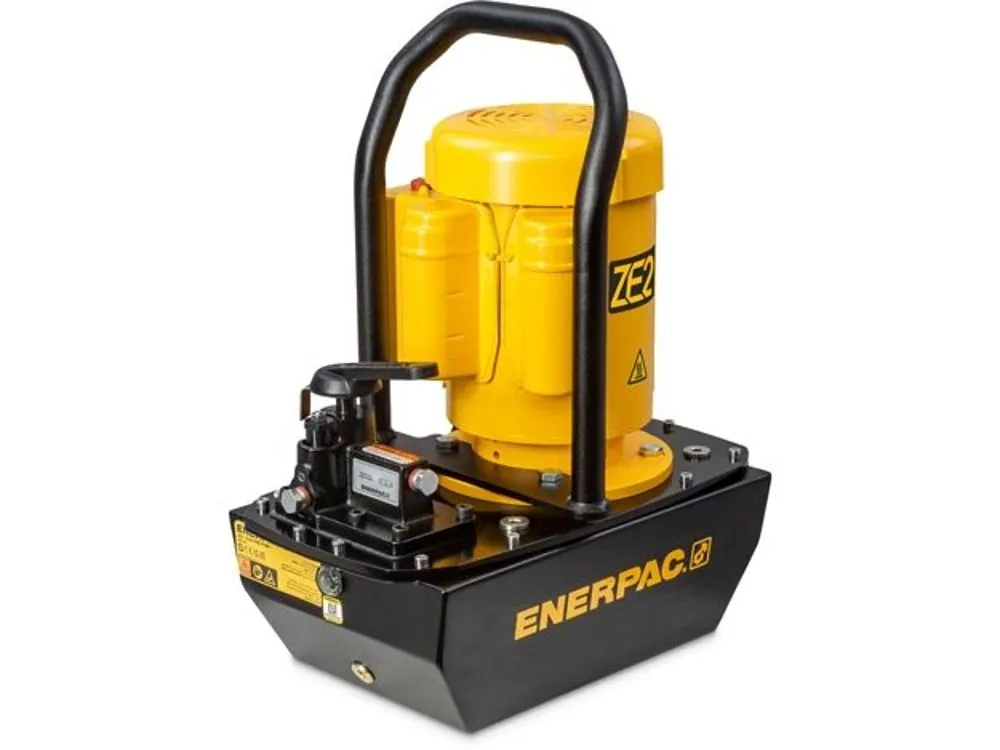

ZE2208ME | - | Manual | Manual Valve | Not Available | - | - | - | - | €3,990.22 | |
|
ZE2208MI | Single Acting | - | - | - | 208/240V AC | Manual | Manual | 10000 psi | €6,619.30 | |
|
ZE2208PB | Single Acting | Manual | Pendant | Not Available | 115V AC | - | Pendant | 10000 psi | €7,222.62 |
