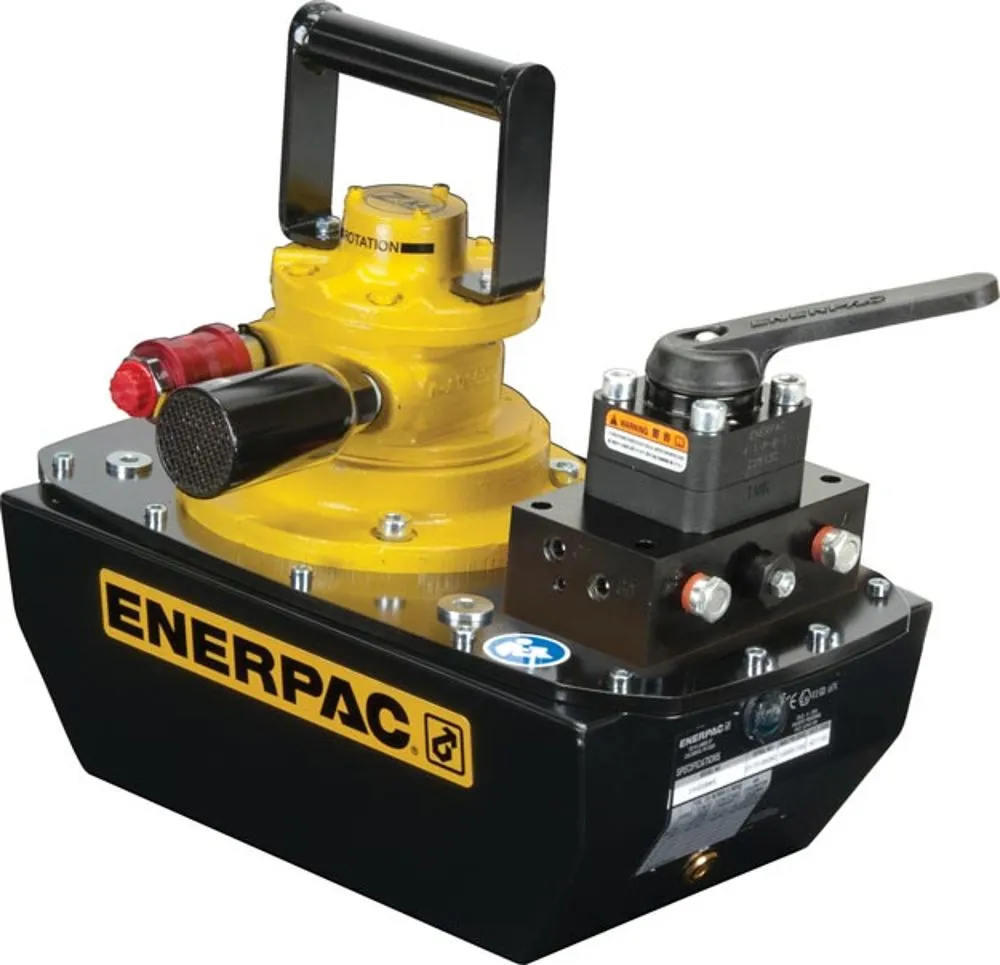

ENERPAC ZA4404MX Two Speed, Air Hydraulic Pump, 4/3 Manual Valve, 1 Gallon Usable Oil
Get it by Thursday, Dec 25
10.00% off
€10,369.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Pump |
| Actuation Type | Pendant |
| Air Consumption | 20-100 SCFM |
| Air Intake Connection Size | 1/2" |
| Air Intake Connection Type | FNPT |
| Air Pressure | 60 psi to 100 psi |
| Air Pressure | 60 to 100 psi |
| Capacity | 20 psi to 100 psi |
| Control Valve Function | Advance, Hold, Retract |
| Control Valve Type | 2 Position, 3 Way |
| Cylinder Compatibility | Double Acting |
| Dimension A | 11 3/5" |
| Dimension B | 5 3/5" |
| Dimension C | 11" |
| Dimension D | 6" |
| Dimension E | 15 2/5" |
| Displacement @ 10,000 Psi | 80 cu. in./min. |
| Displacement @ 100 Psi | 850 cu. in./min. |
| Displacement @ 5000 Psi | 110 cu. in./min. |
| Displacement @ 700 Psi | 675 cu. in./min. |
| Features | Ergonomic Design, Pedal Lock Function, Pressure Relief Valve |
| Length | 6.1" |
| Max. Air Consumption | 100 SCFM |
| Max. Air Intake Pressure | 100 psi |
| Max. Flow Rate | 80 cu. in./min. |
| Max. Operating Pressure | 10000 psi |
| Max. Sound Level | 97 dBA |
| Media Intake Connection Size | 3/8" |
| Min. Sound Level | 94 dBA |
| Oil Capacity | 231 cu. in. |
| Overall Height | 20 1/2" |
| Overall Length | 19.4" |
| Overall Width | 5.9" |
| Power Source | Air |
| Product Datasheet | enerpac-za4204tx-q.pdf |
| Reservoir Capacity | 231 cu. in. |
| Sound Level | 94 dBA to 97 dBA |
| Treadle | Three Position |
| Treadle Design | Three Position |
| Type | Air Powered |
| Usable Oil Capacity | 1 gal. |
| Valve Operation | Manual |
Shipping Info:
| Ship weight (kg) | 42.93 |
| Ship height (cm) | 76.2 |
| Ship length (cm) | 76.2 |
| Ship width (cm) | 60.96 |
| HS code | 8414200000 |
| Country of Origin | US |
Product Details:
- Oil Displacement @ 0 PSI (110 cu. in./min.)
- Operating Air PSI (60 to 100)
- Treadle (Three Position)
Documentation:
Product Variants
| Model | Reservoir Capacity | Oil Capacity | Cylinder Compatibility | Dimension A | Dimension B | Dimension E | Usable Oil Capacity | Treadle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

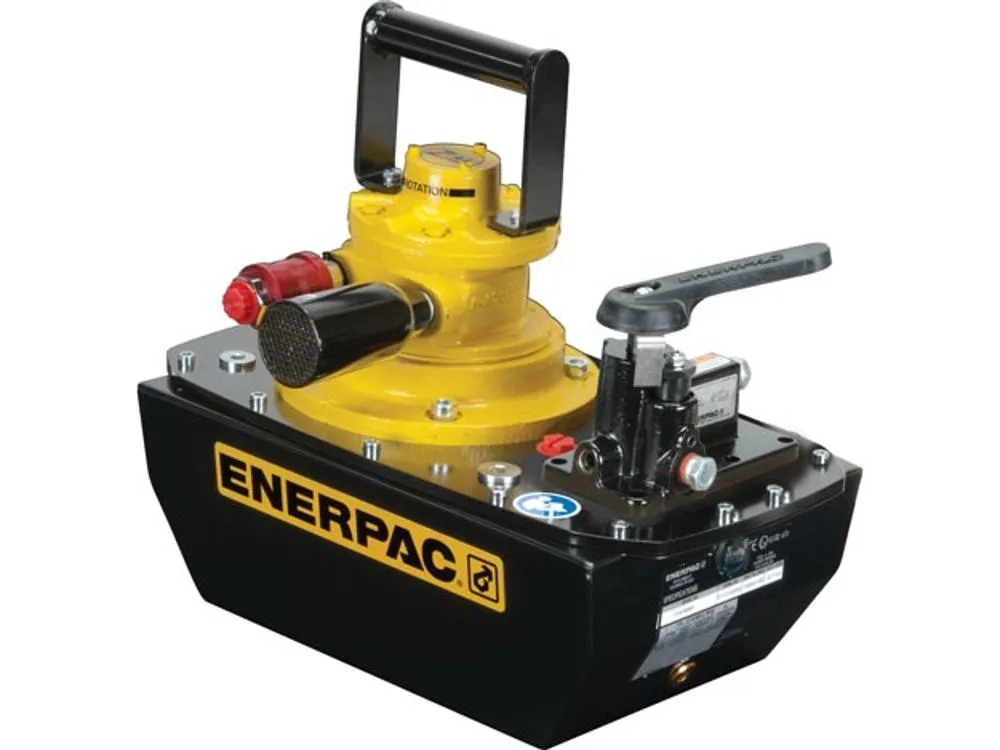

| ZA4204MX | 231 cu. in. | 231 cu. in. | Single Acting | 11 3/5" | 5 3/5" | 15 2/5" | 1 gal. | Two Position | €10,366.71 | |
| ZA4220MX | 1155 cu. in. | 1155 cu. in. | Single Acting | 13" | 7.1" | 16" | 5 gal. | Two Position | €11,339.16 | |
| ZA4408MX | - | 404.25 cu. in. | Double Acting | 11 3/5" | 5 3/5" | 15 2/5" | 1.75 gal. | Three Position | €12,055.97 | |
| ZA4410MX | 578 cu. in. | 577.5 cu. in. | Double Acting | 12" | 6.1" | 16" | 2.5 gal. | Three Position | €12,233.88 | |
| ZA4420MX | 1155 cu. in. | 1155 cu. in. | Double Acting | 13" | 7.1" | 16.9" | 5 gal. | Three Position | €12,693.99 | |
| ZA4440MX | 2310 cu. in. | 2310 cu. in. | Double Acting | 16 1/2" | 10 3/5" | 20 2/5" | 10 gal. | Three Position | €13,467.45 |
