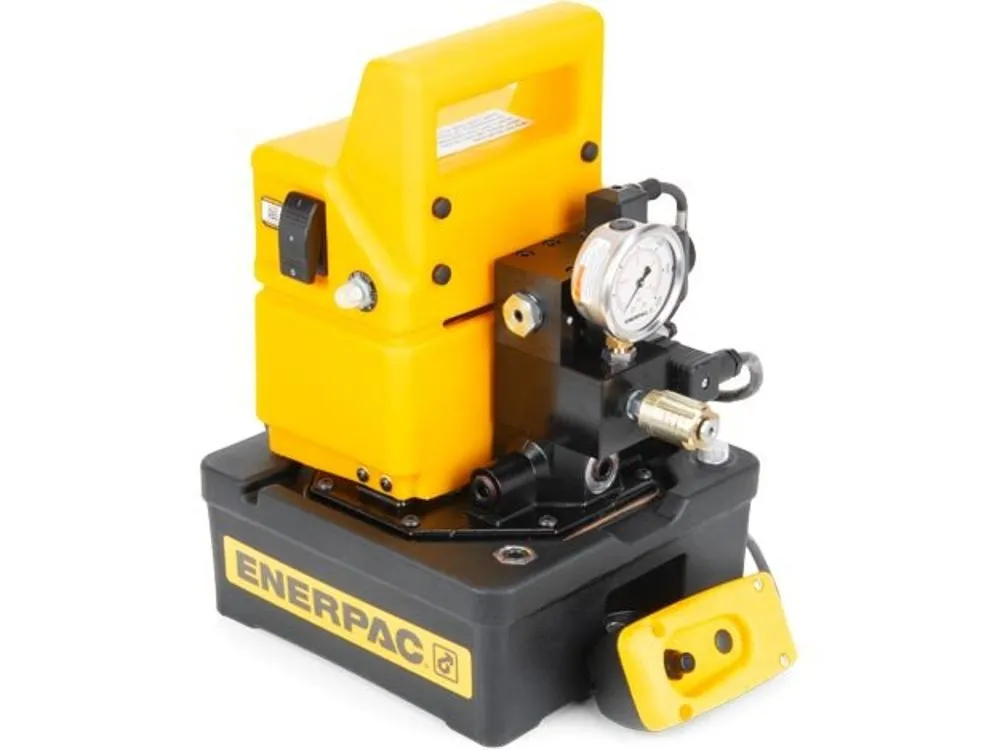

ENERPAC WUD1100B Economy Electric Hydraulic Pump, Dump Valve, 0.5 Gallon Usable Oil
Get it by Tuesday, Aug 25
13.00% off
€5,252.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Electric Pump |
| Amps | 9.5A |
| Amps Draw | 9.5A |
| Application | Pressurize Fixtures For Workholding |
| Charger Input Voltage | 115V AC |
| Control Pendant Size | 10 ft. |
| Control Pendant Voltage | 24V DC |
| Control Valve | Dump |
| Control Valve Function | Advance, Retract |
| Cylinder Compatibility | Single Acting |
| Dimensions A | 9.62" |
| Dimensions B | 9.62" |
| Dimensions C | 14 1/4" |
| Dimensions D | 4" |
| Dimensions E | 4 18/25" |
| Dimensions F | 8" |
| Dimensions H | 2/5" |
| Dimensions J | 5 1/4" |
| Displacement @ 100 Psi | 200 cu. in./min. |
| Displacement @ 1000 Psi | 30 cu. in./min. |
| Displacement @ 200 Psi | 200 cu. in./min. |
| Displacement @ 5000 Psi | 25 cu. in./min. |
| Displacement @ 700 Psi | 30 cu. in./min. |
| Duty Cycle | Intermittent |
| Frequency | 50/60 Hz |
| Frequency | 50/ 60 Hz |
| Hp | 1/2 hp |
| Max. Flow Rate | 25 cu. in./min. |
| Max. Hp | 1/2 hp |
| Max. Operating Pressure | 5000 psi |
| Max. Sound Level | 85 dBA |
| Media Intake Connection Size | 3/8" |
| Media Intake Connection Type | NPTF |
| Motor Type | Universal |
| Oil Displacement @ 1000 Psi | 30 cu. in./min. |
| Oil Displacement @ 5000 Psi | 25 cu. in./min. |
| Overall Height | 14.3" |
| Overall Length | 9.6" |
| Overall Width | 9 3/5" |
| Phase | 1 |
| Power Source | Electric |
| Pressure Rating 1st Stage | 200 psi |
| Pressure Rating 2nd Stage | 5000 psi |
| Product Datasheet | enerpac-pacg3002sb.pdf |
| Reservoir Capacity | 0.5 gal. |
| Reservoir Capacity | 116 cu. in. |
| Reservoir Material | Polyethylene |
| Sound Level | 85 dBA |
| Type | Single Acting |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 15.88 |
| Ship height (cm) | 36.2 |
| Ship length (cm) | 24.43 |
| Ship width (cm) | 24.43 |
| HS code | 8413500080 |
| Country of Origin | US |
Documentation:
Product Variants
| Product | Model | Control Valve Function | Max. Operating Pressure | Power Source | Reservoir Capacity | Hp | Type | Max. Hp | Reservoir Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

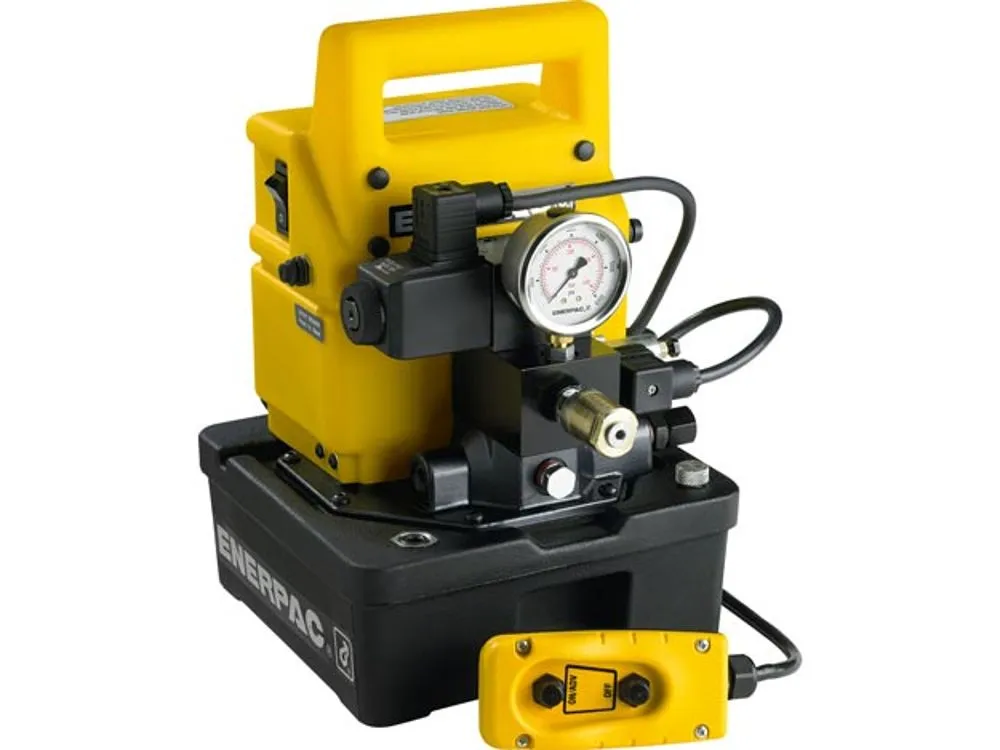

WUD1300B | Advance, Hold, Retract | 5000 psi | Electric | 0.5 gal. | 1/2 hp | Single Acting | 1/2 hp | Polyethylene | €6,290.14 |
