ENERPAC STC750A Self-Contained Hydraulic Cutter Set with Foot Pump, 4 Ton, Capacity
Get it by Tuesday, Dec 23
10.00% off
€4,592.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Cutterhead Set |
| Cable Under Ground Cable Power Cutting Capacity | 17/25" |
| Compatible Wire/cable Type | ACSR Cable, Aluminum Cable, Copper Cable, EHS Guy Strand, Rebar, Soft Steel Bolts |
| Cutter Head Return Type | Single-Acting, Spring Return |
| Cutter Head Type | Guillotine |
| Features | Spring Return |
| For Use With | Pumps With A 3 Way Valve |
| Hydraulic Actuation | Air Pump |
| Includes | Air Pump, Carrying Bag, Coupler And Dust Cap, Cutterhead, Hose |
| Length | 5" |
| Max. Cutting Capacity - Wire Rope | 0.63 Steel Wire Rope |
| Max. Operating Pressure | 10000 psi |
| Maximum Bolt/threaded Rod Capacity - Steel | 11/16" |
| Maximum Cutting Capacity - Cable | 0.56 Stranded Guy Wire, 0.69 Copper/Aluminum Wire, 1/2" Rebar, 3/4" Aluminum Conductor Steel-Reinforced Cable, 3/4" Copper/Aluminum Wire Strands |
| Maximum Flow Rate | 2500 GPM |
| Minimum Hose Size | 1/4" |
| Oil Capacity | 1.2 cu. in. |
| Operating Pressure | 10000 psi |
| Pipe Threading Product Grouping | Pipe Cutter |
| Power Source | Air Pump |
| Pressure | 40 psi to 125 psi |
| Pressure Range | 40 psi to 125 psi |
| Product Datasheet | enerpac-c604.pdf |
| Product Type | Self-Contained Hydraulic Cutter Set |
| Round Bar Aluminum Wire Or Bar Cutting Capacity | 0.69" |
| Round Bar Copper Wire Or Bar Cutting Capacity | 0.69" |
| Round Bar Reinforcing Bar Cutting Capacity | 1/2" |
| Round Bar Soft Steel Bolts Cutting Capacity | 0.69" |
| Steel Wire Rope Hempcore Or Iwrc Cutting Capacity | 0.63" |
| Tool Height | 2 15/16" |
| Tool Length | 15" |
| Tool Series | Series Stc |
| Tool Weight | 33 lbs. |
| Tool Width | 2 1/8" |
| Wall Thickness | Varies |
| Wire Strand Acsr Cutting Capacity | 3/4" |
| Wire Strand Bare Aluminum Wire Strands Cutting Capacity | 3/4" |
| Wire Strand Bare Copper Wire Strands Cutting Capacity | 3/4" |
| Wire Strand Guy Steel Wire Strands Cutting Capacity | 14/25" |
Shipping Info:
| Ship weight (kg) | 14.85 |
| Ship height (cm) | 50.8 |
| Ship length (cm) | 91.44 |
| Ship width (cm) | 50.8 |
| HS code | 8414200000 |
| Country of Origin | JP |
Documentation:
Product Variants
| Model | Oil Capacity | Power Source | Round Bar Copper Wire Or Bar Cutting Capacity | Round Bar Soft Steel Bolts Cutting Capacity | Wire Strand Bare Aluminum Wire Strands Cutting Capacity | Wire Strand Bare Copper Wire Strands Cutting Capacity | Steel Wire Rope Hempcore Or Iwrc Cutting Capacity | Wire Strand Acsr Cutting Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

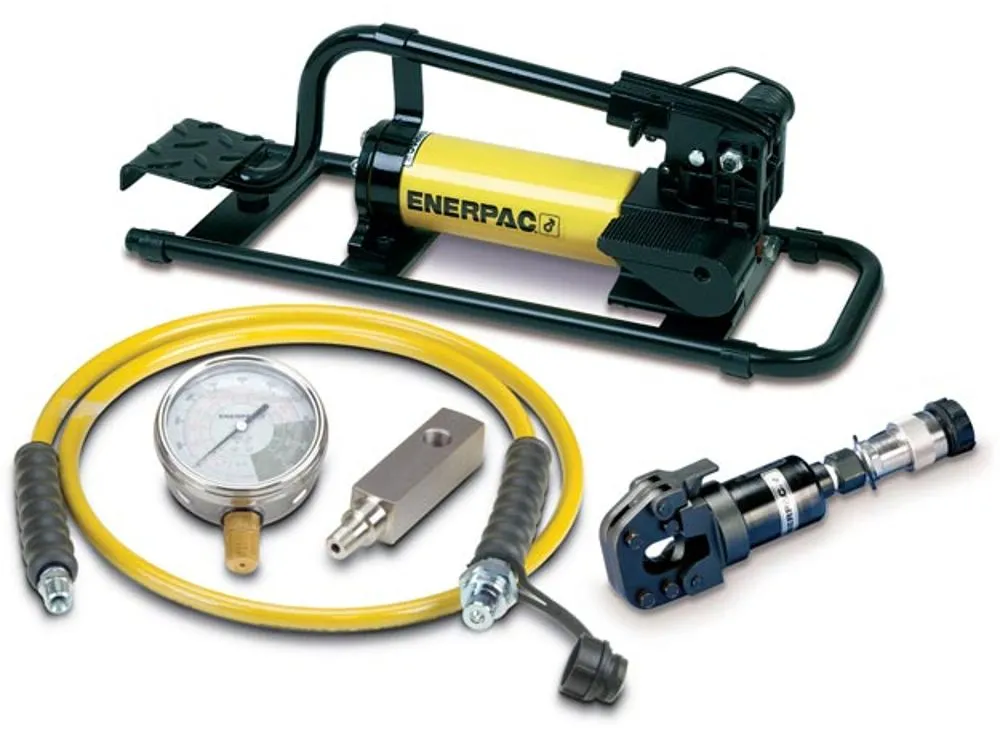

| STC1250FP | 8.2 cu. in. | Foot Pump | 1.13" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | €9,011.39 | |

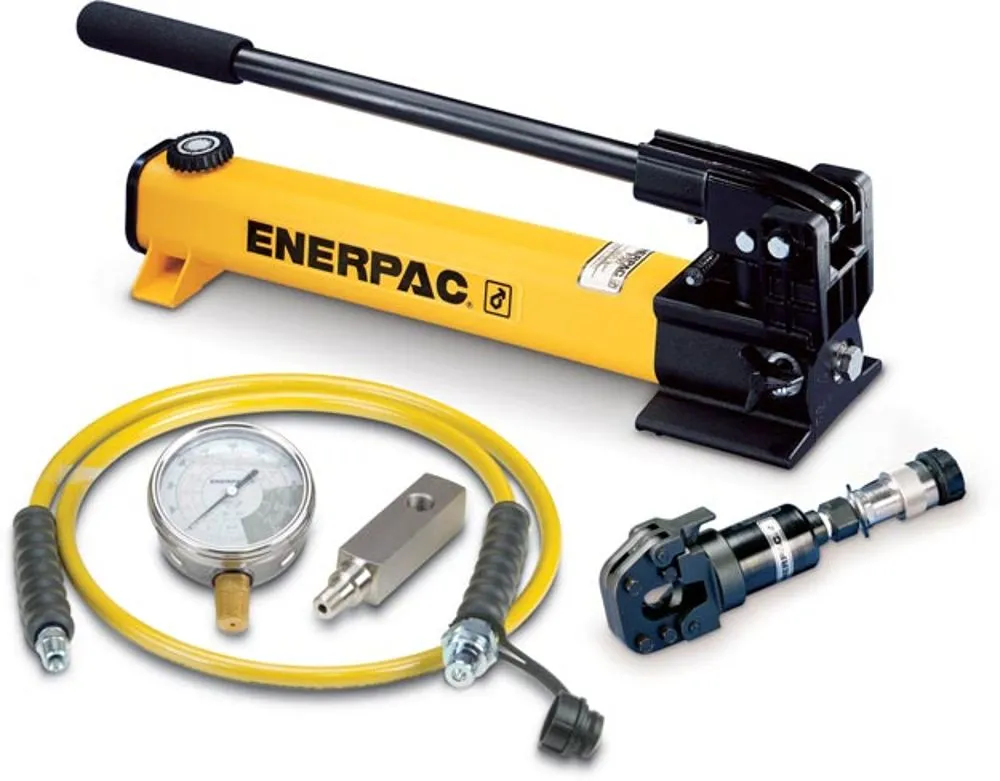

| STC1250H | 8.2 cu. in. | Hand Pump | 1.13" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | 1 1/4" | €10,039.41 | |
| STC750FP | 1.2 cu. in. | Foot Pump | 0.69" | 0.69" | 3/4" | 3/4" | 0.63" | 3/4" | €5,882.86 | |
| STC750H | 1.2 cu. in. | Hand Pump | 0.69" | 0.69" | 3/4" | 3/4" | 0.63" | 3/4" | €4,616.22 |
