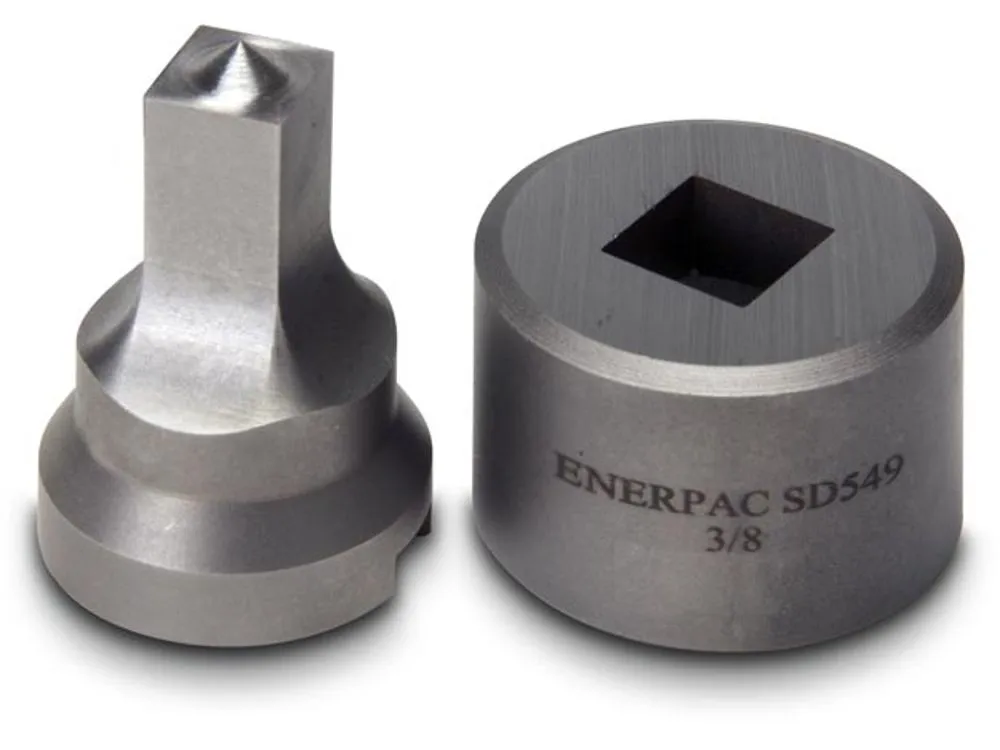

ENERPAC SPD549 Oblong Punch And Die Set, 5/16 Inch Bolt Size, Square
Item: AH9ZAHModel: SPD549Cross Ref: 46C550
7 In Stock
Ships within 2 days via
10.00% off
€1,819.93 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Oblong Punch |
| Application | Punching |
| Boiler Plate | 0.38" |
| Boiler Plate Maximum Allowable Material Thickness To Be Punched | 0.38" |
| Bolt Size | 5/16" |
| Capacity (tons) | 35 ton. |
| Characteristics | Square Hole |
| Cold Rolled C-1018 | 0.31 |
| Cold Rolled C1018 Maximum Allowable Material Thickness To Be Punched | 0.31" |
| Cylinder | Spring Return |
| Hole Shape | Square |
| Hole Size | 0.38" |
| Hot Rolled C-1050 | 0.31 |
| Hot Rolled C-1095 | 0.19 |
| Hot Rolled C-1095 Annealed | 0.25 |
| Hot Rolled C1050 Maximum Allowable Material Thickness To Be Punched | 0.31" |
| Hot Rolled C1095 Annealed Maximum Allowable Material Thickness To Be Punched | 1/4" |
| Hot Rolled C1095 Maximum Allowable Material Thickness To Be Punched | 0.19" |
| Includes | Cr400 Female Coupler |
| Mild A-7 | 0.38 |
| Mild A7 Maximum Allowable Material Thickness To Be Punched | 0.38" |
| Promotion Restriction | Not Eligible For Promotion |
| Stainless 302 Annealed | 0.31 |
| Stainless 304 Hot Rolled | 0.31 |
| Stainless 304 Hot Rolled Maximum Allowable Material Thickness To Be Punched | 0.31" |
| Stainless 316 Cold Rolled | 0.31 |
| Stainless 316 Cold Rolled Maximum Allowable Material Thickness To Be Punched | 0.31" |
| Stainless Annealed Maximum Allowable Material Thickness To Be Punched | 0.31" |
| Standard Bolt Size (in.) | 5/16" |
| Standard Hole Size (in.) | 0.38" |
| Struct Corten Astm A242 | 0.31 |
| Struct Corten Astma242 Maximum Allowable Material Thickness To Be Punched | 0.31" |
| Structural A-36 | 0.31 |
| Structural A36 Maximum Allowable Material Thickness To Be Punched | 0.31" |
| Width | 1 1/4" |
| Working Pressure (psi) | 10000 psi |
Shipping Info:
| Ship weight (kg) | 0.18 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 9.14 |
| Ship width (cm) | 6.6 |
| Country of Origin | US |
Product Details:
- Cold Rolled C-1018 : 0.31
- Boilerplate : 0.38"
- Hot Rolled C-1050 : 0.31
- Hot Rolled C-1095 : 0.19
- Hot Rolled C-1095 Annealed : 0.25
- Mild A-7 : 0.38
- Stainless 302 Annealed : 0.31
- Stainless 304 Hot Rolled : 0.31
- Stainless 316 Cold Rolled : 0.31
- Structural A-36 : 0.31
- Characteristics: Square Hole
Product Variants
| Product | Model | Hole Shape | Hole Size | Bolt Size | Stainless Annealed Maximum Allowable Material Thickness To Be Punched | Struct Corten Astma242 Maximum Allowable Material Thickness To Be Punched | Stainless 316 Cold Rolled Maximum Allowable Material Thickness To Be Punched | Cold Rolled C1018 Maximum Allowable Material Thickness To Be Punched | Stainless 304 Hot Rolled Maximum Allowable Material Thickness To Be Punched | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SPD-313 | Circle | 0.31" | 1/4" | 1/4" | 1/4" | 1/4" | 1/4" | 1/4" | €503.85 | |
 |
SPD-375 | Circle | 0.38" | 5/16" | 0.31" | 0.31" | 0.31" | 0.31" | 0.31" | €527.67 | |
 |
SPD-438 | Circle | 11/25" | 3/8" | 0.31" | 0.38" | 0.31" | 0.38" | 0.31" | €515.00 | |
 |
SPD531 | Circle | 0.53" | 7/16" | 0.38" | 11/25" | 0.38" | 11/25" | 0.38" | €506.03 | |
 |
SPD563 | Circle | 14/25" | 1/2" | 11/25" | 11/25" | 11/25" | 1/2" | 11/25" | €533.03 | |
 |
SPD688 | Circle | 0.69" | 5/8" | 2/5" | 11/25" | 2/5" | 1/2" | 2/5" | €519.13 | |
 |
SPD-781 | Circle | 0.78" | M18 | 0.38" | 11/25" | 0.38" | - | - | €502.42 |
