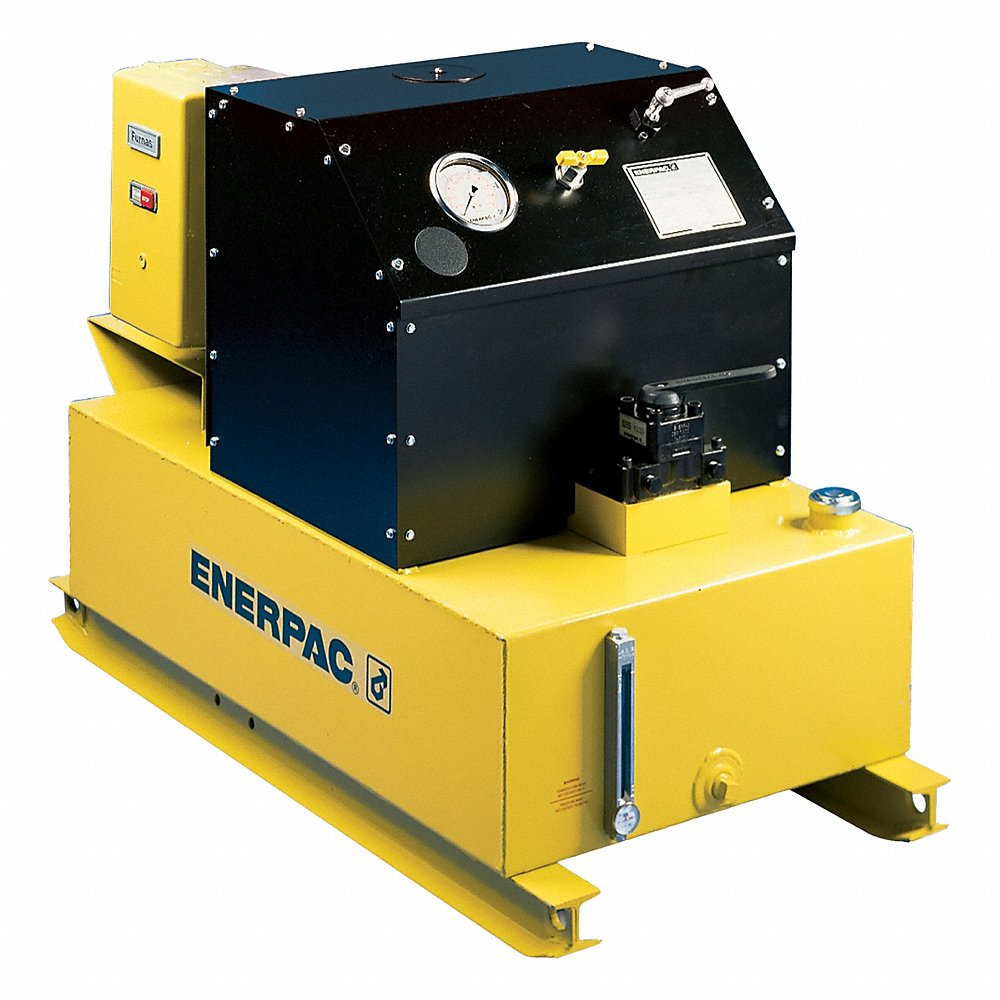

ENERPAC PER8418 Electric Hydraulic Pump, Two Speed, 18 Gallon Usable Oil, 4/3 Inch Solenoid Valve, 230V
Get it by Monday, Aug 17
13.00% off
€53,509.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Electric Pump |
| Amps Draw | 33A |
| Cylinder Compatability | Double-Acting |
| Duty Cycle | Extended |
| Max. Flow @ Rated Pressure | 2 GPM |
| Max. Operating Pressure | 10000 psi |
| Motor Electrical Specification | 230V, 3 Ph, 60 Hz |
| Motor Hertz | 60 Hz |
| Motor Phase | 3 |
| Motor Size (hp) | 12 1/2 hp |
| Motor Voltage | 208-240V |
| Output Flow Rate (gal/min) 1st Stage | 4.4 GPM |
| Output Flow Rate (gal/min) 2nd Stage | 2 GPM |
| Power Source | Electric |
| Pressure Rating 1st Stage | 3700 psi |
| Pressure Rating 2nd Stage | 10000 psi |
| Product Datasheet | enerpac-pem8218c.pdf |
| Pump Control | Pendant |
| Reservoir Capacity | 5.775" , 5775 |
| Reservoir Capacity (gal) | 25 gal. |
| Sound Level | 78 dBA to 84 dBA |
| Usable Oilcapacity Gal | 18 gal. |
| Valve Model | VE43 |
| Valve Operation | Solenoid |
| Valve Type | 4-Way, 3-Position |
Shipping Info:
| Ship weight (kg) | 344.25 |
| Ship height (cm) | 91.44 |
| Ship length (cm) | 139.7 |
| Ship width (cm) | 68.58 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Reservoir Capacity | Motor Voltage | Amps Draw | Valve Operation | Valve Type | Motor Electrical Specification | Cylinder Compatability | Valve Model | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| PEM8218C | 5.775" | 460-480V | 16.5A | Manual | 3-Way, 2-Position | 460V, 3 Ph, 60 Hz | Single Acting | Vm2 | €54,998.26 | |
| PEM8418 | 5.775" | 208-240V | 33A | Manual | 4-Way, 3-Position | 230V, 3 Ph, 60 Hz | Double-Acting | Vm4 | €40,279.46 | |
| PEM8418C | 5.775" | 460-480V | 16.5A | Manual | 4-Way, 3-Position | 460V, 3 Ph, 60 Hz | Double-Acting | Vm4 | €40,673.37 | |

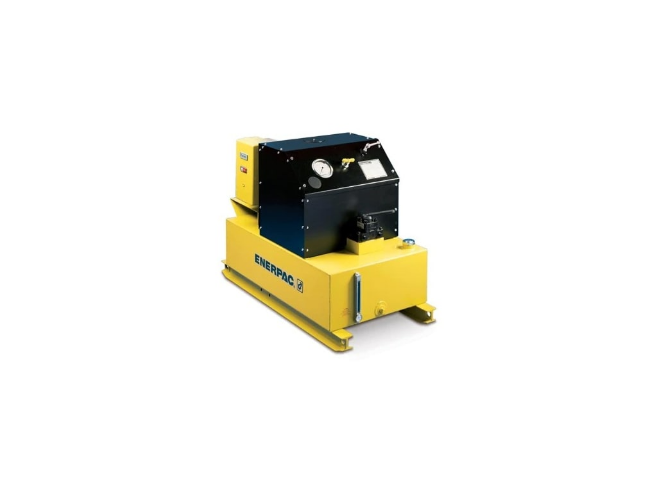

| PEM8418L | - | - | - | - | - | - | - | - | €40,895.34 | |
| PER8418C | 5.775" | 460-480V | 16.5A | Solenoid | 4-Way, 3-Position | 460V, 3 Ph, 60 Hz | Double-Acting | VE43 | €60,907.66 |
