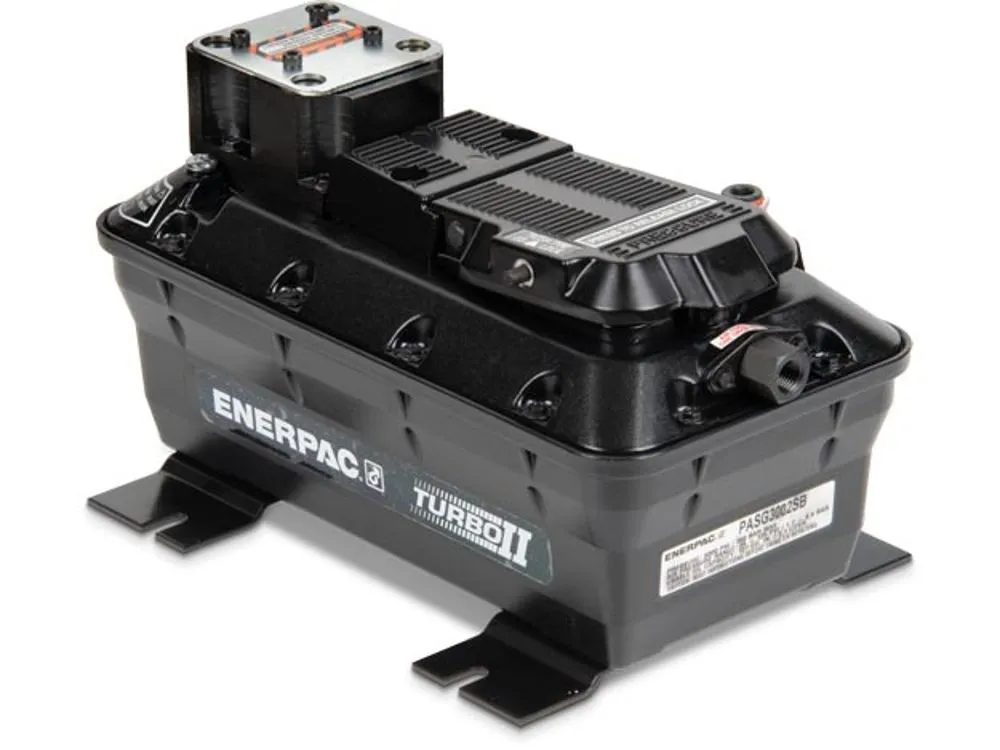

ENERPAC PASG3002SB Air Hydraulic Pump, Mount for Single DO3 Valve, 180 Inch Cu./min Oil Flow, 100 PSI
Get it by Wednesday, Dec 24
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€1,914.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Pump |
| Actuation Type | Pendant |
| Air Consumption | 12 SCFM |
| Air Intake Connection Size | 1/4" |
| Air Intake Connection Type | FNPT |
| Air Pressure | 50 to 125 psi |
| Air Pressure | 50 psi to 125 psi |
| Capacity | 1250 psi to 5000 psi |
| Displacement @ 5000 Psi | 180 cu. in./min. |
| Features | Ergonomic Design, Pedal Lock Function, Pressure Relief Valve |
| Includes | D03 Valve Manifold |
| Max. Air Consumption | 12 SCFM |
| Max. Air Intake Pressure | 125 psi |
| Max. Flow Rate | 180 cu. in./min. |
| Max. Operating Pressure | 5000 psi |
| Max. Sound Level | 75 dBA |
| Oil Capacity | 127 cu. in. |
| Overall Height | 8" |
| Overall Length | 10" |
| Overall Width | 12 2/5" |
| Power Source | Air |
| Product Datasheet | enerpac-pamg1402n.pdf |
| Reservoir Capacity | 0.53 gal. |
| Sound Level | 75 dBA |
| Treadle | Two Position |
| Treadle Design | Two Position |
| Type | Air Powered |
Shipping Info:
| Ship weight (kg) | 9.09 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 22.86 |
| HS code | 8413500080 |
| Country of Origin | US |
Product Details:
- PASG Series air powered hydraulic pump suitable for lifting heavy equipment & workpieces in lower & medium cycle applications
- Internal and adjustable external pressure relief valve for overload protection and stall-restart operation for maintaining system pressure & providing clamping security
- Reinforced & lightweight heavy-duty reservoir for withstanding harsh industrial conditions and fully serviceable air motor assembly for user convenience
- 50 to 125 psi operating air pressure for easy start at low air pressures
- Oil Displacement @ 0 PSI (180 cu.inch/min)
- Operating Air PSI (50 to 125)
- Treadle (Two Position)
Documentation:
Product Variants
| Model | Reservoir Capacity | Oil Capacity | Max. Operating Pressure | Actuation Type | Air Consumption | Type | Power Source | Sound Level | Price | |
|---|---|---|---|---|---|---|---|---|---|---|

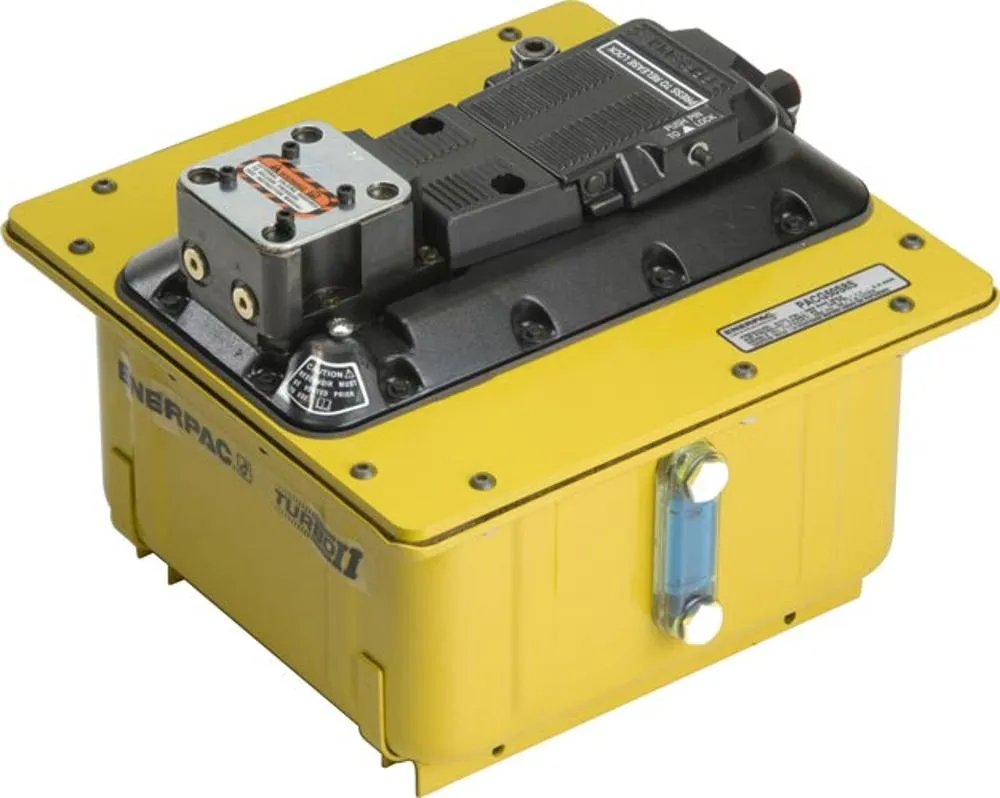

| PASG30S8S | 2 gal. | 462 cu. in. | 5000 psi | Pendant | 12 SCFM | Air Powered | Air | 75 dBA | €2,731.59 | |

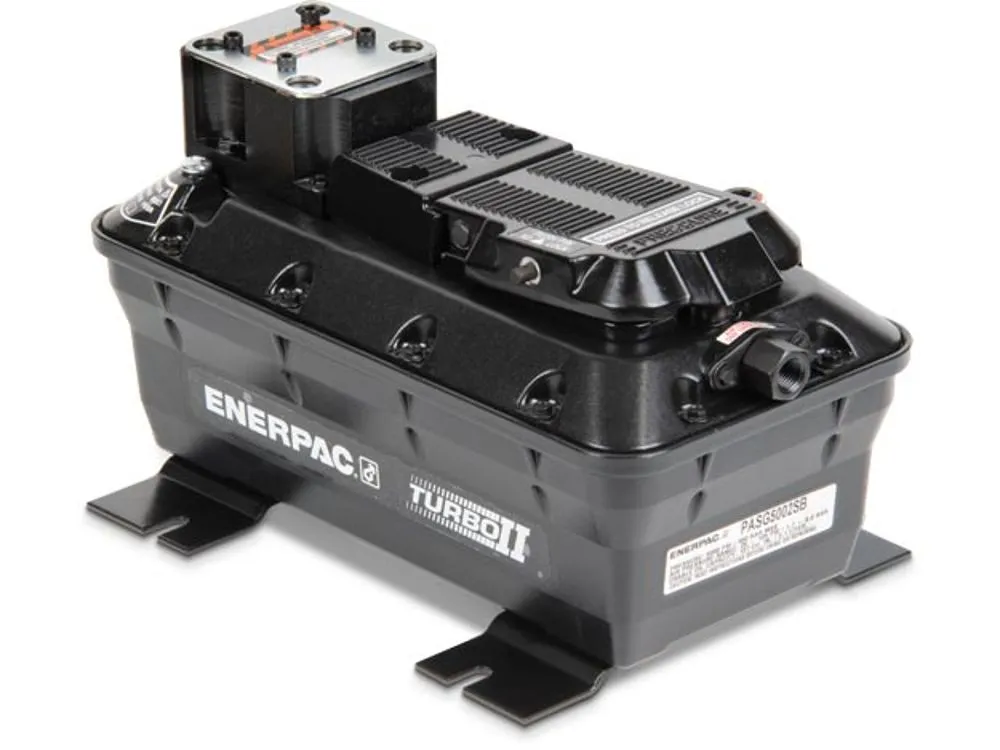

| PASG5002SB | 0.53 gal. | 127 cu. in. | 5000 psi | Pendant | 12 SCFM | Air Powered | Air | 75 dBA | €2,101.89 | |
| PASG50S8S | 2 gal. | 462 cu. in. | 5000 psi | Pendant | 12 SCFM | Air Powered | Air | 75 dBA | €2,265.39 |
