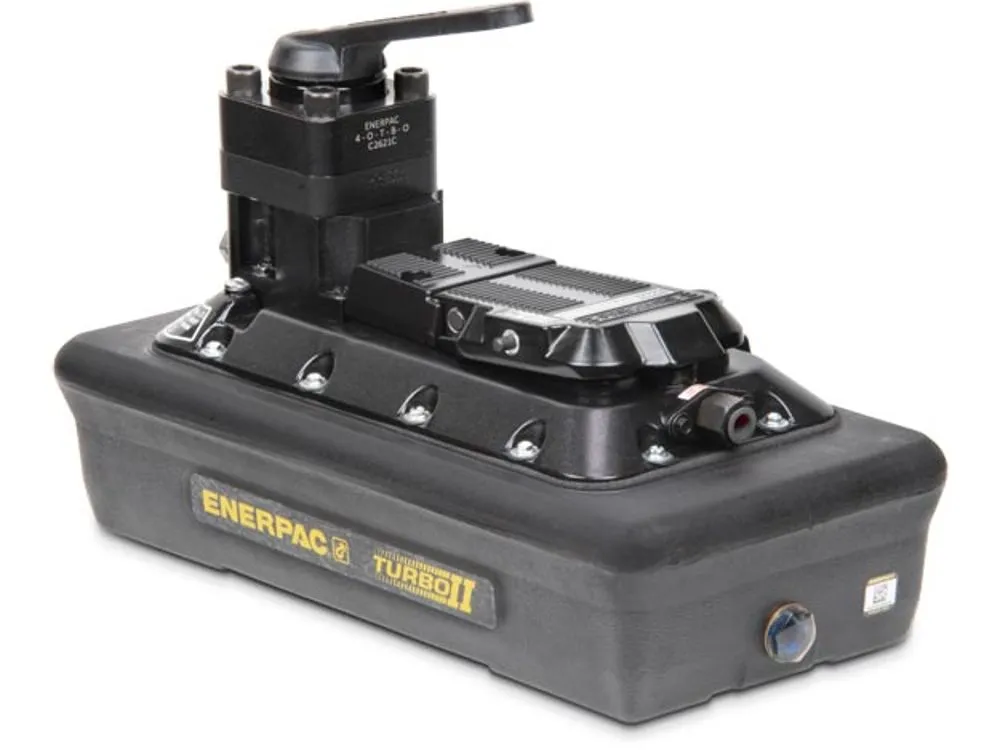

ENERPAC PAMG1405N Air Hydraulic Pump, 4/3 Manual Valve, 230 Inch Cu. Capacity Usable Oil
Get it by Tuesday, Aug 25
13.00% off
€2,298.68 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydraulic Pump |
| Actuation Type | Pendant |
| Air Consumption | 12 SCFM |
| Air Intake Connection Size | 1/4" |
| Air Intake Connection Type | FNPT |
| Control Valve Function | Advance, Hold, Retract |
| Control Valve Type | 3 Position, 4 Way, Tandem Center |
| Cylinder Compatibility | Double Acting |
| Dimension L | 3.28" |
| Dimensions A | 15 3/5" |
| Dimensions B | 7 23/25" |
| Dimensions C | 10 1/2" |
| Dimensions D | 9 1/25" |
| Dimensions E | 4" |
| Dimensions F | 1.42" |
| Dimensions H | 5.19" |
| Dimensions J | 6" |
| Dimensions L | 3 7/25" |
| Dimensions M | 15.94" |
| Displacement @ 10000 Psi | 10 cu. in./min. |
| Displacement @ 5000 Psi | 24 cu. in./min. |
| Features | Ergonomic Design, Pedal Lock Function, Pressure Relief Valve |
| Included | Treadle |
| Max. Air Consumption | 12 SCFM |
| Max. Air Intake Pressure | 125 psi |
| Max. Flow Rate | 10 cu. in./min. |
| Max. Operating Pressure | 10000 psi |
| Max. Sound Level | 76 dBA |
| Media Intake Connection Size | 3/8" |
| Oil Capacity | 230 cu. in. |
| Oil Displacement @ 5000 Psi | 24 cu. in./min. |
| Overall Height | 10 1/2" |
| Overall Length | 9" |
| Overall Width | 7.9" |
| Power Source | Air |
| Product Datasheet | enerpac-pamg1405n.pdf |
| Pump Control | Pendant |
| Reservoir Capacity | 230 cu. in. |
| Reservoir Capacity | 127 cu. in. |
| Sound Level | 76 dBA |
| Type | Air Powered |
| Valve Operation | Manual |
Shipping Info:
| Ship weight (kg) | 11.97 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 38.1 |
| Ship width (cm) | 22.86 |
| HS code | 8413200000 |
| Country of Origin | US |
Product Details:
- Oil Displacement @ 0 PSI (60 cu. in./min.)
- Operating Air PSI (125)
Documentation:
Product Variants
| Product | Model | Max. Operating Pressure | Reservoir Capacity | Air Pressure | Air Consumption | Dimensions A | Dimensions B | Dimensions D | Dimensions L | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

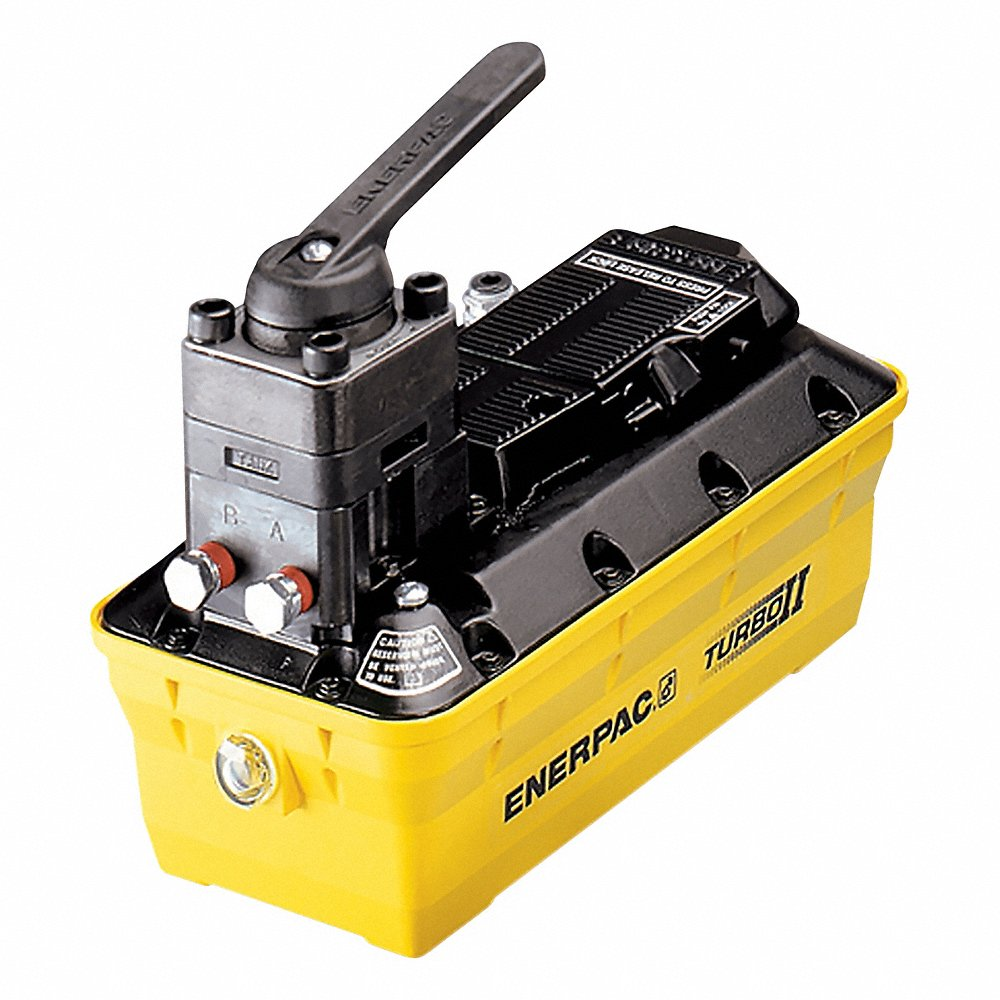

PAMG1402N | 700 Bar | 127 cu. in. | 40 psi to 125 psi | 340 LPM | 12.33" | 6.49" | 9.04" | 1.65" | €2,721.85 |
